John Deere 1510G

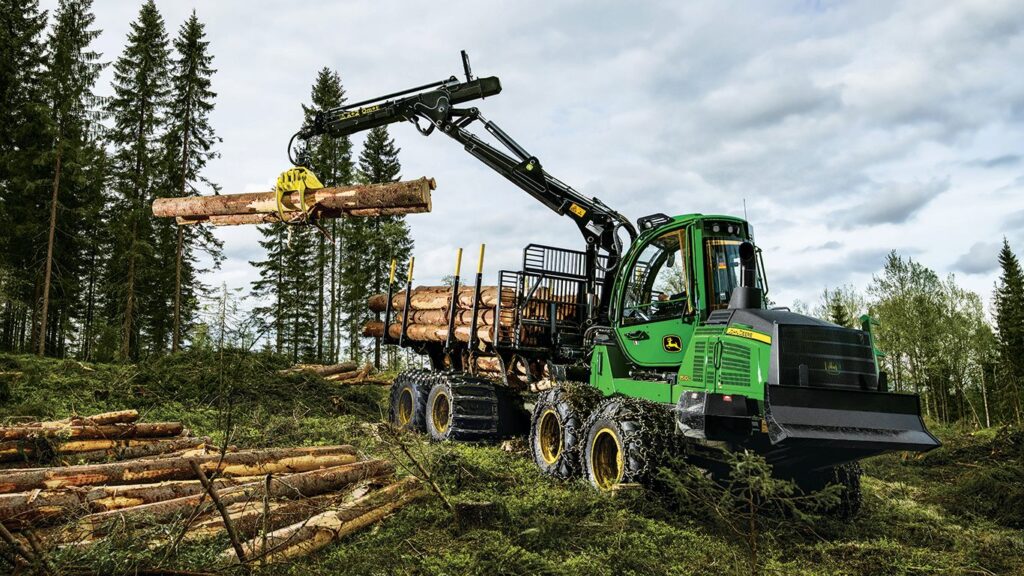

1510G Forwarder

  • John Deere
  • Forwarders

Find a location to get your local store information and inventory.

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs
  • Boom Reach: 7.2 m (23.6 ft.) / 8.5 m (27.9 ft.) / 10 m (32.8 ft.)
  • Tractive Effort: 185 kN (41,588 lbf.)
  • Load Rating: 15 000 kg (33,069 lb.)
  • Engine Power: 164 kW (220 hp) at 1,700 – 1,900 rpm
  • Load Rating 15 000 kg (33,069 lb.)
  • Boom Reach 7.2 m (23.6 ft.) / 8.5 m (27.9 ft.) / 10 m (32.8 ft.)
  • Engine Power 164 kW (220 hp) at 1,700 – 1,900 rpm
  • Tractive Effort 185 kN (41,588 lbf.)
  • Gross Lifting Torque 125 kNm (92 ft. – lb.) / 143 kNm (105 ft. – lb.)
  • Gross Slewing Torque 32 kNm (24 ft. – lb.)
  • + Expand All
  • - Close All
  • Self-Leveling Cab

    Rotating, self-leveling cab turns 290 deg. for an all-around view of boom movements and the jobsite, for safe, efficient log loading.

  • TimberLink™ Automatic Monitoring
    • Exclusive TimberLink automatic monitoring system keeps an eye on operating costs while tracking machine performance and efficiency.
    • Work-cycle information, such as loading and driving times can be used to fine-tune settings and improve operator technique.
  • TimberMatic™ Control System

    TimberMatic F-12 control system delivers fine-tuned hydraulics, for effortlessly smooth forwarder functions.

  • Intelligent Boom Control
    • Optional Intelligent Boom Control eases boom operations, making them more precise and productive.
    • Joysticks are configurable to user preference, so operators can run IBC using their preferred control patter.
  • Long Bogie

    Long-bogie versions deliver more ground pressure for logging in soft terrain, as well as better stability in rocky conditions.

CAPACITIES

Fuel Tank, ltr (gallons (US)) 167 (44)
Hydraulic Tank, ltr (gallons (US)) 161 (43)
Alternator Output, Amp 150
