Home / New Equipment / Forestry Equipment / Forwarders / 1910G Forwarder

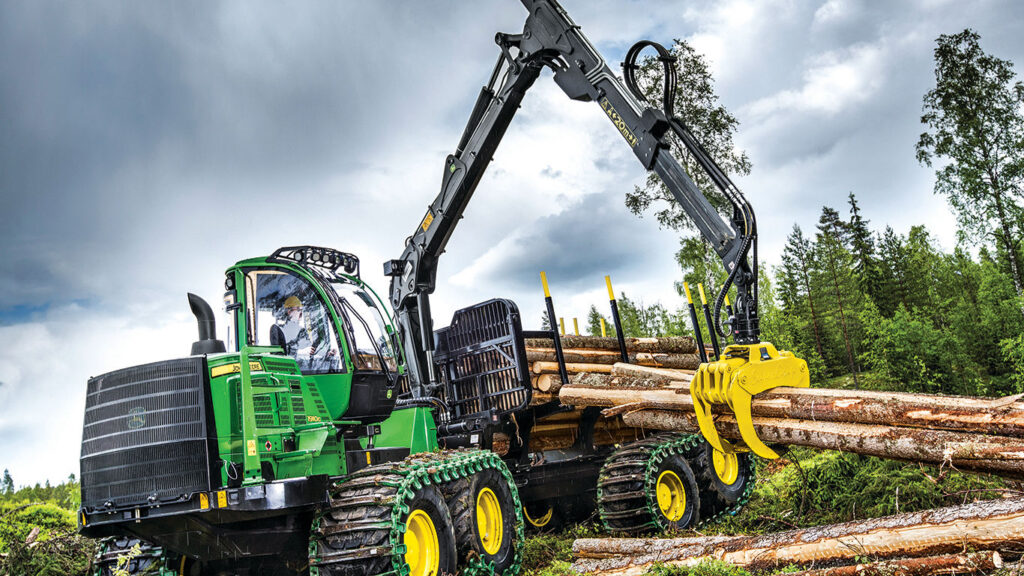

JOHN DEERE 1910G Forwarder
Forestry Equipment
- Boom Reach: 7.2 m (23.6 ft.) / 8.5 m (27.9 ft.)
- Tractive Effort: 230 kNm (169,639 lbf.)
- Load Rating: 19 000 kg (41,888 lb.)
- Engine Power: 200 kW (268 hp) at 1,600 – 1,900 rpm
Select a category to view specifications (or view all).
| DRIVELINE - Engine Manufacturer | John Deere |
|---|---|
| DRIVELINE - Engine Model | PowerTech Plus 6090 |
| DRIVELINE - Displacement, ltr (Inches�) | 9 (549.2) |
| DRIVELINE - Engine Output, kW (hp) | 200 (268.2) |
| DRIVELINE - Engine Torque, Nm (lbf / ft) | 1315 (969.8) |
| DRIVELINE - Drive Configuration | 8 x 8 |
| DRIVELINE - Transmission | Hydrostatic-Mechanical |
| DRIVELINE - Std tire size front | 26.5 - 20 |
| DRIVELINE - Std tire size rear | 26.5 - 20 |
| DIMENSIONS - Base Carrier Length, mm (inches) | 11470 (451.2) |
| DIMENSIONS - Transport Height, mm (inches) | 3900 (153.6) |
| DIMENSIONS - Width, mm (inches) | 3090 (122.4) |
| DIMENSIONS - Wheelbase, mm (inches) | 6250 (246) |
| DIMENSIONS - Ground Clearance, mm (inches) | 800 (32) |
| DIMENSIONS - Width - Fixed Bunk, mm (inches) | 2953 (115.2) |
| DIMENSIONS - Horizontal Reach, m (ft/in) | 8.5 (27 ft 11 in) |
| DIMENSIONS - Load Length, mm (inches) | 5635 (222) |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 184 (49) |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 185 (49) |
| CAPACITIES - Alternator Output, Amp | 150 |
| PERFORMANCE - Lifting Moment - Standard Crane, kNm (lbf / ft) | 151 (111372) |
| PERFORMANCE - Load Capacity, tonnes (tons (short)) | 19 (20.944) |
| PERFORMANCE - Travel Speed, kph (mph) | 21 (13) |
| PERFORMANCE - Tractive Force, kN (lbf) | 230 (169639) |
| PERFORMANCE - System Voltage, V | 24 |
| PERFORMANCE - Pump Capacity, cm� (Inches�) | 180 (11) |
Featured List
- Load Rating: 19 000 kg (41,888 lb.)
- Boom Reach: 7.2 m (23.6 ft.) / 8.5 m (27.9 ft.)
- Engine Power: 200 kW (268 hp) at 1,600 – 1,900 rpm
- Tractive Effort: 230 kNm (169,639 lbf.)
- Gross Lifting Torque: 151 kNm (111,375 ft. – lb.)
- Gross Slewing Torque: 41 kNm (30,240 ft. – lb.)
Featured Content
Rotating, self-leveling cab turns 290 deg. for an all-around view of boom movements and the jobsite, for safe, efficient log loading.
- Exclusive TimberLink automatic monitoring system keeps an eye on operating costs while tracking machine performance and efficiency.
- Work-cycle information, such as loading and driving times can be used to fine-tune settings and improve operator technique.
TimberMatic F-12 control system delivers fine-tuned hydraulics, for effortlessly smooth forwarder functions.
- Optional Intelligent Boom Control eases boom operations, making them more precise and productive.
- Joysticks are configurable to user preference, so operators can run IBC using their preferred control patter.
Rotating, self-leveling cab turns 290 deg. for an all-around view of boom movements and the jobsite, for safe, efficient log loading.
