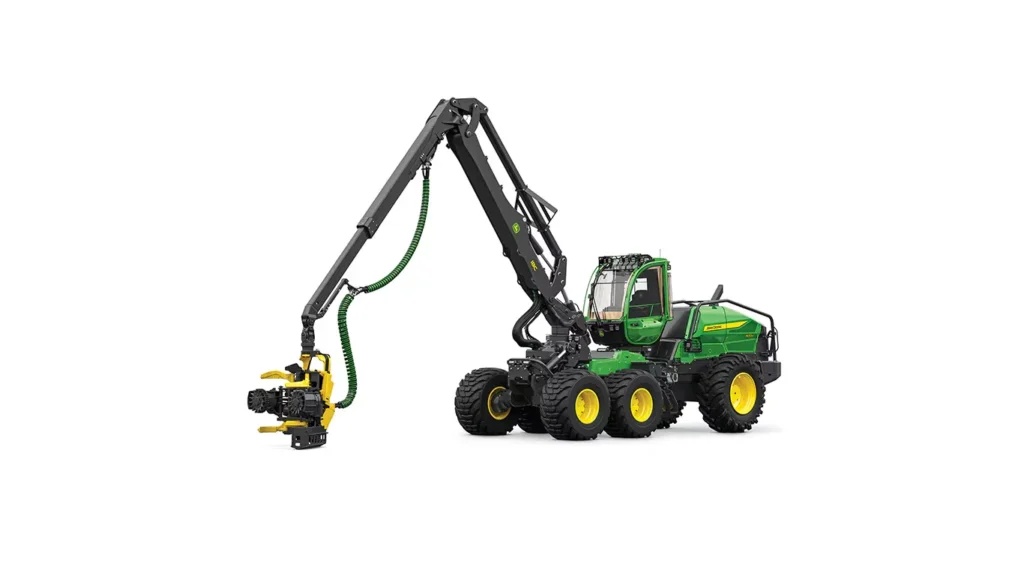

JOHN DEERE 1470H Wheeled Harvester
Forestry Equipment
- Net Power: 220 kW (295 hp) (rpm not available)
- Pump Capacity: not available
- Boom Reach: 8.6 m (28.2 ft.) / 10.0 m (32.8 ft.) / 11.0 m (38.4 ft.)
| Description - Crane Model | H9 |
|---|---|
| Driveline - Engine Manufacturer | John Deere |
| Driveline - Engine Model | 6090 |
| Driveline - Displacement, ltr (Inches³) | 9 (549) |
| Driveline - Engine Output, kW (hp) | 220 (295) |
| Driveline - Engine Torque, Nm (lbf / ft) | 1445 (1065) |
| Driveline - Drive Configuration | 6 x 6 |
| Driveline - Transmission Type | Hydrostatic-Mechanical |
| Dimensions - Base Carrier Length, mm (inches) | 11990 (468) |
| Dimensions - Transport Height, mm (inches) | 3990 (156) |
| Dimensions - Overall Width, mm (inches) | 3090 (121.2) |
| Dimensions - Wheelbase, mm (inches) | 4380 (172.8) |
| Dimensions - Ground Clearance, mm (inches) | 726 (28.5) |
| Dimensions - Horizontal Reach, m (ft/in) | 8.6 (28 ft 2 in) |
| Capacities - Fuel Tank, ltr (gallons (US)) | 467 (123) |
| Capacities - Hydraulic Tank, ltr (gallons (US)) | 302 (80) |
| Capacities - Reference Harvesting Head | H425 |
| Capacities - Felling Diameter, mm (inches) | 750 (29.5) |
| Weights - Operating Weight, kg (lbs) | 24900 (54895) |
Featured Content
Wheeled Harvester with Active Frame Lock engagedFrame Lock is a new feature with the H-Series introduction, wheeled harvesters can be configured with active or passive frame lock. The passive system is on when the machine is still and off when the machine is moving. However, in the active frame lock system it can be engaged when the machine is driving or operating as well. The hydraulic frame lock system helps increase the confidence of operators when operating the machine, whether it is while driving and slewing or stopped and slewing a large tree.
Passive frame lock comes standard on every H-Series wheeled harvester. As said above, this system is dependent on machine movement. When the machine is still, the frame lock is in locked position, therefore the oscillation between the two frames is prevented by hydraulic cylinders.
Active frame lock is an optional upgrade on wheeled harvesters. This system works when the machine is moving or stopped. In active frame lock, the stabilizing force from the hydraulic cylinder force is adjusted according to boom angle and lift cylinder pressure.
- Operator confidence
- Engages while driving
- Helps increase stability when maneuvering over obstacles
- Helps increase ground pressure when working on slopes
1470H with IBCIntelligent Boom Control (IBC) smooths boom operations, making them more precise and efficient, to increase operator productivity compared to a wheeled harvester without IBC. IBC allows operators to control the direction of the boom tip directly instead of controlling independent boom movements. IBC also utilizes adaptive swing control to adjust the swing speed based on the overall position of the head. This makes controlling the head more precise and intuitive, especially for new operators, compared to machines without IBC.
Harvester IBC 3.0 is an optional upgrade for wheeled harvesters. When a machine is configured with IBC 3.0, the swing bearing is equipped with a rotation sensor. The additional sensor helps when operators are slewing trees for smooth movements as well as positioning of a stem on TimberMatic™ Maps.
Benefits
- Customizable control pattern and boom motions
- More efficient and consistent boom movements
- IBC functions have been adapted to the work cycle
- Automatic adjusting of the harvester head in accordance with the trajectory of the boom
- Trajectory of the boom can be adjusted through the secondary display unit
Boom trajectory menu for wheeled harvesters on secondary display unit
1270H engine and hydraulic pumpsThe new three-pump hydraulic system provides a 15% increase of hydraulic power over the previous G-Series. The three dedicated pumps for the harvester head, boom, and drive allow for simultaneous operation of each machine function while meeting operator’s requirements. The hydraulic pumps feature a positive gear ratio, which helps achieve increased pump power while maintaining low engine revolutions per minute (RPM).
We also see an increase in feed roller pressure in the harvester head. 350 bar pressure on the H-Series compared to 280 bar pressure on the G-Series. Less hydraulic flow is needed for the same hydraulic power, helping to drive higher efficiencies with less fuel consumption.
- 15% increase in hydraulic power
- Dedicated pumps for the harvester head, boom, and drive
- Lower engine RPMs
- Increased feed roller pressure
Wheeled Harvester working with operator’s station rotatedThe H-Series operators station rotates 220 degrees to follow the boom and harvester head slew. The 220 degrees is an increase compared to the 160-degree rotation on the previous G-Series machines. The operator’s station is also automatically leveled, by hydraulic cylinders and happens as the machine navigates slopes or obstacles.
Along with the increase in operator station rotation, the redesign of the rear frame, rear bumpers, boom design, and slew cylinder location has helped increase visibility. The rear hood and bumper now sit lower than the G-Series layout, this helps operators see behind the machine especially with the operator’s station rotated.
- 220-degree rotation of the operator’s station
- Auto rotate flows the boom and harvester head movement
- Automatic leveling of the operator station
- Increased visibility compared to G-Series
- Rotation and leveling speeds can be adjusted through Primary Display
H9 boom on a 1470H wheeled harvesterThe H9 boom is a new release with the 1470H wheeled harvester. This boom provides an increase in lift and slew torque compared to the previous CH9 boom. With the increase in boom performance, operators can more easily handle larger timber. The boom range of motion is designed with steep slope operation in mind, this geometry is an improvement compared to the CH9 boom. There are multiple boom lengths to meet your customers’ needs when configuring the machine.
- More lift and slew torque compared to CH9 boom
- Jib cylinder direction change
- Less points and levers compared to previous boom
- Low center of gravity
- Better range of motion
1470H wheeled harvesterServiceability is now simpler than ever with the launch of the H-Series. Daily service checks as well as scheduled service checks are achievable from central locations. Starting with engine oil checks, the H-Series features an engine oil level sensor. The engine oil sensor works alongside the engine oil dipstick, providing feedback to the operator through the secondary display unit (SDU). Remote fuel filling, diesel exhaust fluid (DEF), and stump treatment are now all located near the left rear bumper and able to fill from the ground. Central greasing enables faster daily maintenance, the boom, cabin bearing, leveling joints, cylinders, and middle joint can all be greased from one central location. Lastly, for more regular service checks many of these components to check and/or change are located on the left-hand side under the engine compartment. Filters, water separator, oil inlet and dipstick, measuring points, and many more are conveniently located.
- Central service points
- Engine oil sensor
- Ground level fluid fill
- Maximizing customer uptime
Secondary Display Unit in wheeled harvesters
