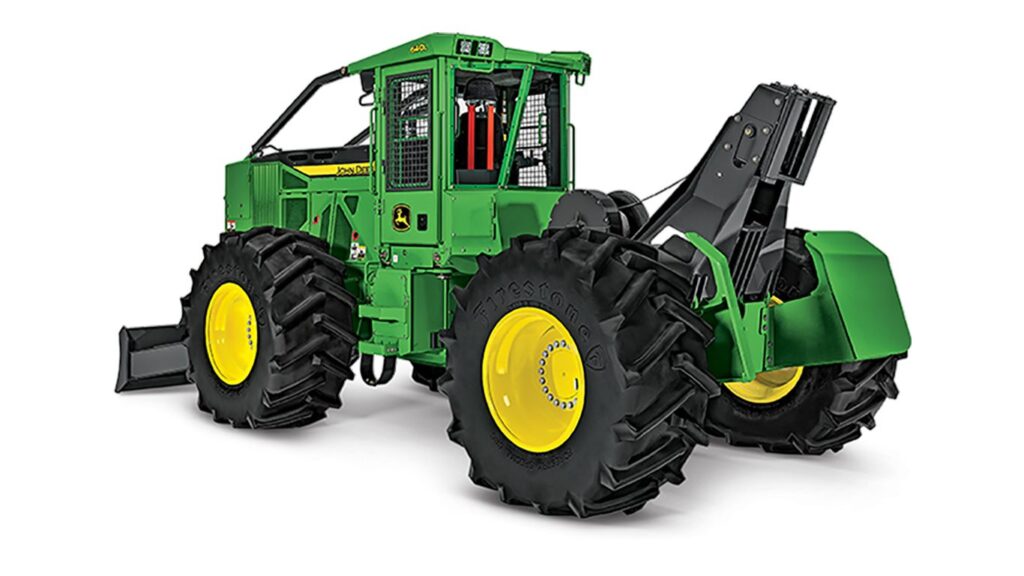

JOHN DEERE 640L Cable Skidder
Forestry Equipment
- Gross Power: 177 kW (237 hp)
- Gross Torque: 1025 Nm (756 ft. – lb.)
- Operating Weight: 16 686 kg (36,787 lb.)
Select a category to view specifications (or view all).
| DRIVELINE - Engine Manufacturer | John Deere |
|---|---|
| DRIVELINE - Engine Model | PowerTech PVX 6068 |
| DRIVELINE - Displacement, ltr (Inches�) | 6.8 (415) |
| DRIVELINE - Engine Output, kW (hp) | 177 (237) |
| DRIVELINE - Engine Torque, Nm (lbf / ft) | 1025 (756) |
| DRIVELINE - Transmission | Continuous Variable Transmission |
| DRIVELINE - Planetaries | Inboard |
| DRIVELINE - Front Axle | Inboard planetary |
| DRIVELINE - Rear Axle | Inboard planetary |
| DRIVELINE - Service Brake Type | Wet discs |
| DIMENSIONS - Overall Length, mm (inches) | 7591 (298.9) |
| DIMENSIONS - Height Over Cab, mm (inches) | 3365 (132.5) |
| DIMENSIONS - Overall Width, mm (inches) | 3233 (127.3) |
| DIMENSIONS - Wheelbase, mm (inches) | 3680 (144.8) |
| DIMENSIONS - Dozer Blade Height, mm (inches) | 687.6 (27.1) |
| DIMENSIONS - Ground Clearance, mm (inches) | 555 (21.8) |
| DIMENSIONS - Dozer Blade Width, mm (inches) | 2192 (86.3) |
| DIMENSIONS - Dozer Blade - Dig Depth, mm (inches) | 359 (14.1) |
| DIMENSIONS - Steering Articulation Angle, � � | 45 |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 342.2 (90.4) |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 123.6 (32.6) |
| CAPACITIES - Alternator Output, Amp | 150 |
| PERFORMANCE - Travel Speed, kph (mph) | 24.74 (15.37) |
| PERFORMANCE - Oscillation Point | Front Axle |
| PERFORMANCE - Oscillation Angle, � � | 15 |
| PERFORMANCE - Rated Line Pull, kN (lbf) | 182.3 (41000) |
| PERFORMANCE - Rated Line Speed, m/min (ft/min) | 19.2 (63) |
| PERFORMANCE - System Voltage, V | 24 |
| PERFORMANCE - Pump | Axial Piston |
| WEIGHTS - Operating Weight, kg (lbs) | 16686 (36787) |
Featured List
- Engine Size: 6.8 L (415 cu. in.)
- Gross Power: 177 kW (237 hp)
- Gross Torque: 1025 Nm (756 ft. – lb.)
- Operating Weight: 16,686 kg (36,787 lb.)
- Maximum Grapple Capacity: N/A
- Outbound Planetary Axle: Inboard Planetary Axle
Featured Content
The easy-to-use CVT transmission combines the smoothness and operating ease of a hydrostatic transmission with the fuel efficiency of a lockup torque converter.
New larger grapples give you more flexibility to configure a skidder to best match your application. The new arch design provides a better view to bunches for more efficient loading.
The cab is 25-percent roomier and 50-percent quieter. Other fatigue-beating creature comforts include a more efficient HVAC system, improved ergonomic controls, and plenty of storage space.
Filters and critical components are conveniently located for fast service. Large panels are easily removed for wide-open access to the engine compartment, and the cab tilts to provide a quick route to other components.
