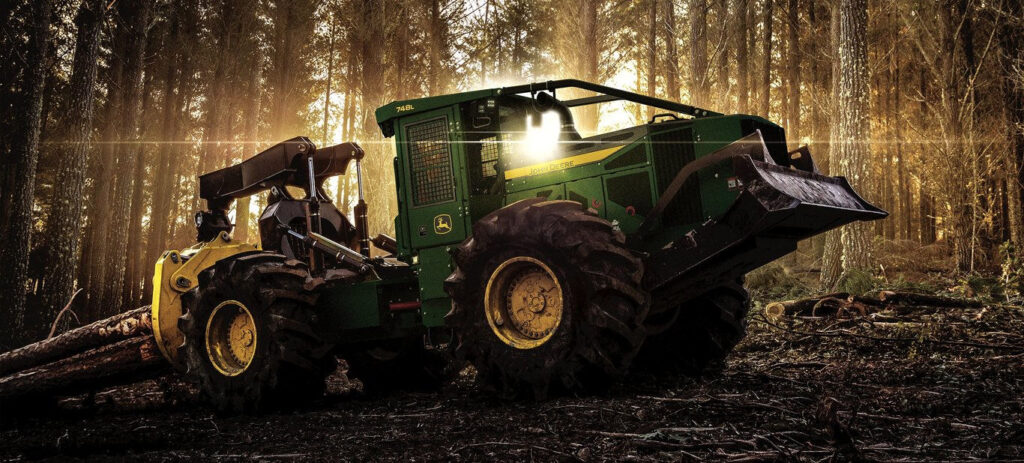

JOHN DEERE 748L Grapple Skidder
Forestry Equipment
- Gross Power: 196 kW (263 hp)
- Gross Torque: 1141 Nm (841 ft. – lb.)
- Max Grapple Capacity: 1.77 m2 (19.1 sq. ft.)
- Operating Weight: 19 713 kg (43,460 lb.)
Select a category to view specifications (or view all).
| DESCRIPTION - Standard Arch Function | Dual |
|---|---|
| DRIVELINE - Engine Manufacturer | John Deere |
| DRIVELINE - Engine Model | PowerTech PSS 6.8L |
| DRIVELINE - Displacement, ltr (Inches�) | 6.8 (415) |
| DRIVELINE - Engine Output, kW (hp) | 196 (263) |
| DRIVELINE - Engine Torque, Nm (lbf / ft) | 1141 (841) |
| DRIVELINE - Transmission | Continuous Variable Transmission |
| DRIVELINE - Planetaries | Inboard |
| DRIVELINE - Front Axle | Inboard planetary |
| DRIVELINE - Rear Axle | Inboard planetary |
| DRIVELINE - Service Brake Type | Wet discs |
| DIMENSIONS - Overall Length, mm (inches) | 8384 (330) |
| DIMENSIONS - Height Over Cab, mm (inches) | 3365 (132.5) |
| DIMENSIONS - Overall Width, mm (inches) | 3239 (127.5) |
| DIMENSIONS - Wheelbase, mm (inches) | 3925 (154.5) |
| DIMENSIONS - Dozer Blade Height, mm (inches) | 687.6 (27.1) |
| DIMENSIONS - Ground Clearance, mm (inches) | 557 (21.9) |
| DIMENSIONS - Dozer Blade Width, mm (inches) | 2962.4 (116.6) |
| DIMENSIONS - Dozer Blade - Dig Depth, mm (inches) | 359 (14.1) |
| DIMENSIONS - Tong Opening At Tips, mm (inches) | 3251 (128) |
| DIMENSIONS - Enclosure Area, m� (ft�) | 1.77 (19.1) |
| DIMENSIONS - Steering Articulation Angle, � � | 45 |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 391.8 (103.5) |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 123.6 (32.6) |
| CAPACITIES - Alternator Output, Amp | 150 |
| PERFORMANCE - Travel Speed, kph (mph) | 24.74 (15.37) |
| PERFORMANCE - Oscillation Point | Front Axle |
| PERFORMANCE - Oscillation Angle, � � | 15 |
| PERFORMANCE - Rated Line Pull, kN (lbf) | 182.3 (41000) |
| PERFORMANCE - Rated Line Speed, m/min (ft/min) | 14 (46) |
| PERFORMANCE - System Voltage, V | 24 |
| PERFORMANCE - Pump | Axial Piston |
| WEIGHTS - Operating Weight, kg (lbs) | 19713 (43460) |
Featured List
- Engine Size: 6.8 L (415 cu. in.)
- Gross Power: 196 kW (263 hp)
- Gross Torque: 1141 Nm (841 ft. – lb.)
- Operating Weight: 19,713 kg (43,460 lb.)
- Maximum Grapple Capacity: 1.77 m2 (19.1 sq. ft.)
- Outbound Planetary Axle: Optional
Featured Content
The easy-to-use CVT transmission combines the smoothness and operating ease of a hydrostatic transmission with the fuel efficiency of a lockup torque converter.
New larger grapples give you more flexibility to configure a skidder to best match your application. The new arch design provides a better view to bunches for more efficient loading.
The cab is 25-percent roomier and 50-percent quieter. Other fatigue-beating creature comforts include a more efficient HVAC system, improved ergonomic controls, and plenty of storage space.
Filters and critical components are conveniently located for fast service. Large panels are easily removed for wide-open access to the engine compartment, and the cab tilts to provide a quick route to other components.
