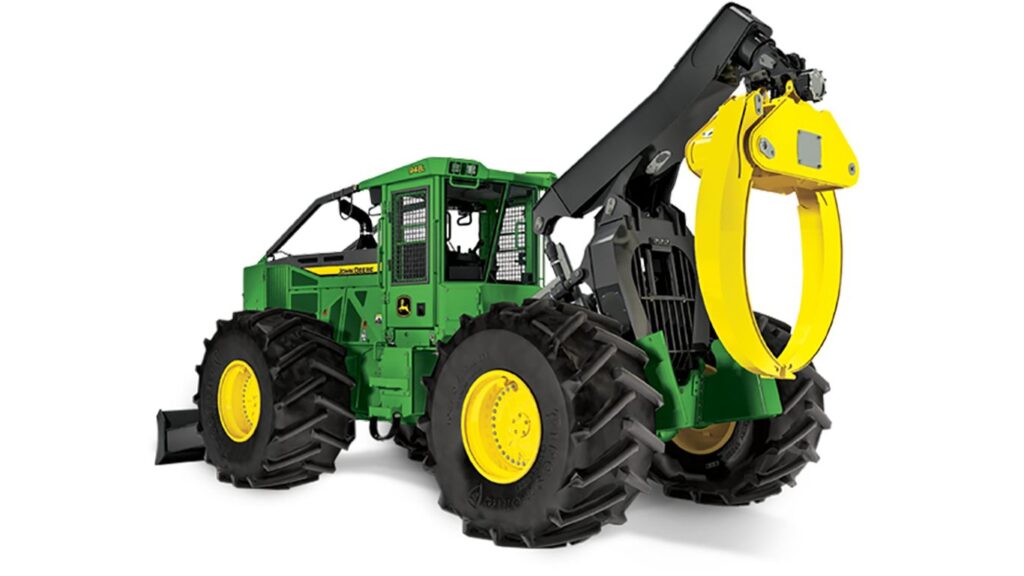

JOHN DEERE 948L Grapple Skidder
Forestry Equipment
- Gross Power: 224 kW (300 hp)
- Gross Torque: 1369 Nm (1,009 ft. – lb.)
- Max Grapple Capacity: 2.07 m2 (22.3 sq. ft.)
- Operating Weight: 22 416 kg (49,420 lb.)
| DESCRIPTION - Standard Arch Function | Dual |
|---|---|
| DRIVELINE - Engine Manufacturer | John Deere |
| DRIVELINE - Engine Model | PowerTech PSS 9.0L |
| DRIVELINE - Displacement, ltr (Inches�) | 9 (549) |
| DRIVELINE - Engine Output, kW (hp) | 224 (300) |
| DRIVELINE - Engine Torque, Nm (lbf / ft) | 1369 (1009) |
| DRIVELINE - Transmission | Continuous Variable Transmission |
| DRIVELINE - Planetaries | Outboard |
| DRIVELINE - Front Axle | Outboard planetary |
| DRIVELINE - Rear Axle | Outboard planetary |
| DRIVELINE - Service Brake Type | Wet disc |
| DRIVELINE - Parking Brake Type | Wet disc |
| DIMENSIONS - Overall Length, mm (inches) | 8469 (333.4) |
| DIMENSIONS - Height Over Cab, mm (inches) | 3454 (136) |
| DIMENSIONS - Overall Width, mm (inches) | 3575 (140.7) |
| DIMENSIONS - Wheelbase, mm (inches) | 3975 (156.5) |
| DIMENSIONS - Dozer Blade Height, mm (inches) | 691 (27.2) |
| DIMENSIONS - Ground Clearance, mm (inches) | 604 (23.7) |
| DIMENSIONS - Dozer Blade Width, mm (inches) | 2962.4 (116.6) |
| DIMENSIONS - Dozer Blade - Dig Depth, mm (inches) | 298 (11.7) |
| DIMENSIONS - Tong Opening At Tips, mm (inches) | 3886 (153) |
| DIMENSIONS - Enclosure Area, m� (ft�) | 1.77 (19.1) |
| DIMENSIONS - Steering Articulation Angle, � � | 45 |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 391.8 (103.5) |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 123.6 (32.6) |
| CAPACITIES - Alternator Output, Amp | 150 |
| PERFORMANCE - Travel Speed, kph (mph) | 25 (15.53) |
| PERFORMANCE - Oscillation Point | Front Axle |
| PERFORMANCE - Oscillation Angle, � � | 15 |
| PERFORMANCE - Rated Line Pull, kN (lbf) | 221 (49696) |
| PERFORMANCE - Rated Line Speed, m/min (ft/min) | 20.1 (66) |
| PERFORMANCE - System Voltage, V | 24 |
| PERFORMANCE - Pump | Axial Piston |
| WEIGHTS - Operating Weight, kg (lbs) | 22416 (49420) |
Featured List
- Engine Size: 9.0 L (549 cu. in.)
- Gross Power: 224 kW (300 hp)
- Gross Torque: 1369 Nm (1,009 ft. – lb.)
- Operating Weight: 22,416 kg (49,420 lb.)
- Maximum Grapple Capacity: 2.07 m2 (22.3 sq. ft.)
- Outbound Planetary Axle: Standard
Featured Content
The easy-to-use CVT transmission combines the smoothness and operating ease of a hydrostatic transmission with the fuel efficiency of a lockup torque converter.
New larger grapples give you more flexibility to configure a skidder to best match your application. The new arch design provides a better view to bunches for more efficient loading.
The cab is 25-percent roomier and 50-percent quieter. Other fatigue-beating creature comforts include a more efficient HVAC system, improved ergonomic controls, and plenty of storage space.
Filters and critical components are conveniently located for fast service. Large panels are easily removed for wide-open access to the engine compartment, and the cab tilts to provide a quick route to other components.
