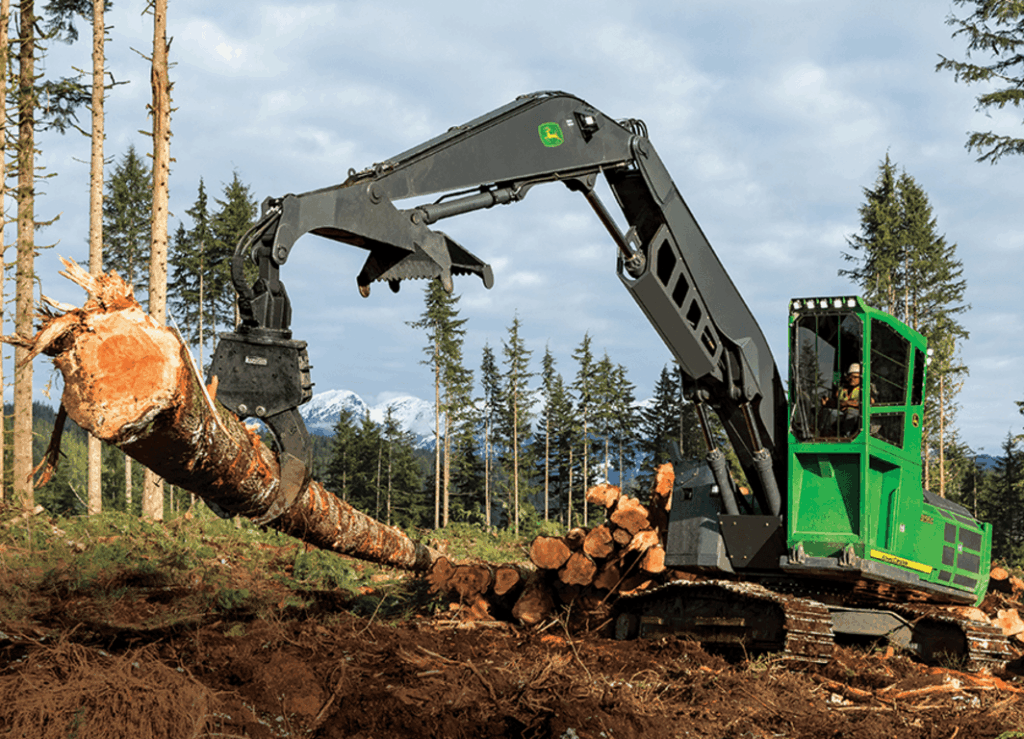

JOHN DEERE 3156G Swing Machine
Forestry Equipment
- Peak Power: 186 kw (249 hp) at 1900 rpm
- Max. Hydraulic Flow: 236 L/m (62.3 gpm) x 2
- Swing Torque: 120 000 Nm (88,507 lb-ft)
- Drawbar Pull: 30 350 kgf (66,910 lbf)
Select a category to view specifications (or view all).
| DRIVELINE - Engine Manufacturer | John Deere |
|---|---|
| DRIVELINE - Engine Model | PowerTech Plus 9.0 L |
| DRIVELINE - Displacement, ltr (Inches�) | 9 (549) |
| DRIVELINE - Engine Output, kW (hp) | 186 (249) |
| DRIVELINE - Engine Output - Net, kW (hp) | 186 (249) |
| DRIVELINE - Carrier Rollers - Each Side | 2 |
| DRIVELINE - Track Rollers - Each Side | 8 |
| DRIVELINE - Track Shoe Width, mm (inches) | 700 (28) |
| DIMENSIONS - Overall Length, mm (ft/in) | 14810 (48 ft 7 in) |
| DIMENSIONS - Transport Height, mm (ft/in) | 3710 (12 ft 2 in) |
| DIMENSIONS - Overall Width, mm (ft/in) | 3630 (11 ft 11 in) |
| DIMENSIONS - Overall Track Length, mm (ft/in) | 5000 (16 ft 5 in) |
| DIMENSIONS - Track Length On Ground, mm (ft/in) | 4060 (13 ft 4 in) |
| DIMENSIONS - Tailswing Radius, mm (ft/in) | 3630 (11 ft 11 in) |
| DIMENSIONS - Ground Clearance, mm (ft/in) | 790 (2 ft 7 in) |
| DIMENSIONS - Width Over Tracks, mm (ft/in) | 3630 (11 ft 11 in) |
| DIMENSIONS - Track gauge, mm (ft/in) | 2920 (9 ft 7 in) |
| DIMENSIONS - Horizontal Reach, m (ft/in) | 11.07 (36 ft 4 in) |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 1080 (285) |
| CAPACITIES - Hydraulic Tank, ltr (gallons (US)) | 195 (52) |
| PERFORMANCE - Ground Bearing Pressure, kPa (PSI) | 74.9 (10.9) |
| PERFORMANCE - Slew Torque, kNm (lbf / ft) | 120 (88507) |
| PERFORMANCE - Travel Speed, kph (mph) | 4.2 (2.6) |
| PERFORMANCE - Lift capacity at max reach, kg (lbs) | 7280 (16040) |
| PERFORMANCE - Pump Type | Variable Axial Piston |
| PERFORMANCE - Pump Flow, lt/min (gallons (US) / min) | 248 (65.5) x 2 |
| PERFORMANCE - Relief Pressure, kPa (PSI) | 34300 (4975) |
| PERFORMANCE - Boost Pressure, kPa (PSI) | 38000 (5511) |
| WEIGHTS - Operating Weight, kg (lbs) | 42579 (93870) |
Featured List
- Swing Torque: 120,000 Nm (88,507 lb.-ft)
- Max Hydraulic Flow: 236 L/m (62.3 gpm)
- Peak Power: 186 kW (249 hp) at 1,900 rpm
Featured Content
Undercarriage and mainframe are designed to deliver up to 67-percent longer life. More robust boom-foot base with larger pins strengthens the boom connection. Bushings have been added to the boom tower and boom tip to improve joint integrity and simplify repair.
- Spacious cab boasts an additional three inches of legroom.
- Ergonomically correct short-throw pilot levers provide smooth, precise fingertip control with less movement or effort.
- Five high-intensity halogen lights are standard for when you need to extend your workday beyond daylight. Optional 14-light LED package plus service and access lights provide outstanding all-around illumination.
Three productivity models allow you to adjust the machine to the application.
• High productivity delivers more power and faster hydraulic response.
• Power delivers a balance of power, speed, and fuel economy for normal operation.
• Economy limits top speed and helps save fuel.
- Larger service bays make it easier to access components, helping ensure daily checks and preventative maintenance get done effortlessly and on schedule.
- With the LED light option, illumination in all service compartments means you won’t have to fumble around for a flashlight before dawn or after dark.
