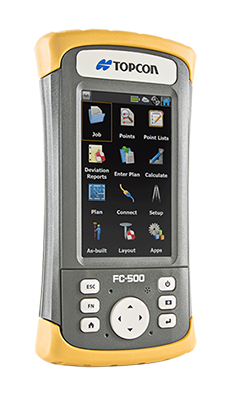

Topcon FC-500

FC-500

  • Topcon
  • Field Controllers

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

MEET MODERN
FIELD DEMANDS

With the same touch-screen technology as smartphones, the FC-500 field controller has a crisp and sunlight-readable display that delivers in any condition. With internal GPS and an optional camera, running your choice of Topcon field software, the power is in your hands.

  • Large, 4.3” sunlight readable display
  • Rugged, MIL-STD-810G and IP68 certified
  • 3.5G cellular modem (optional)
  • Bluetooth® and Wi-Fi Wireless connectivity
  • Internal GPS accessible from MAGNET Field
  • 5 MP digital camera (optional)
  • + Expand All
  • - Close All
  • Overview

    RUGGED, FAST, LIGHTWEIGHT
    CONTROLLER PACKS A PUNCH

    Field tested and ready for action, the FC-500 is built to withstand a one meter drop and maintain battery life for up to 20 hours. Compatible with all Topcon data collection software, the FC-500 is an ideal portable device for all positioning and construction needs. Include an optional internal 3.5G cellular modem to remain in constant connection to the office from dynamic project sites.

  • Applications
    • Land Surveying
    • Topography & As-Built
    • Civil Engineering & Design
    • Construction Survey/Layout
    • Grade Management
    • BIM for Construction
    • Mapping
    • Vertical Construction
    • Utilities
    • Forensics
    • Forestry
  • Battery: Intelligent Li-Ion battery
  • Camera: Geo, Geo 3G
  • External Power Input: 12/24VDC
  • Operating System: Microsoft® Windows Embedded Handheld 6.5
  • Ports: COM1, RS-232C 9-pin D connector
  • Internal: 512MB RAM
  • Cellular*: Integrated Worldwide
  • Processor: 1GHz ARM Cortex A8 i.MX53
  • Wi-Fi: 802.11b/g/n
  • Memory Card: 8GB flash storage
  • Bluetooth: Yes
  • Dimensions: W: 3.89" (91 mm) H: 7.45" (184 mm) D: 1.68" (38 mm)
