Key Features & Specs

FIELD FIT

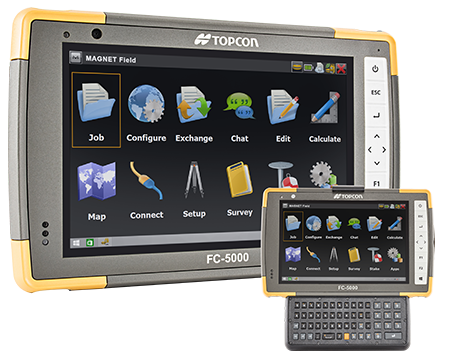

Powerful, tough, and versatile, the FC-5000 is brings the processing speed expected in the office directly to your project site. Your daily field computer just arrived and it set to impress.

  • Intel® Atom™ Z3745 processor
  • 8 MP rear camera, 2 MP front camera
  • External Keyboard (click here for more information)
  • Windows® 10 operating system
  • Integrated 4G LTE cellular module (optional)
  • MIL-STD-810G and IP68 certified
  • Sunlight readable 7 in. display
  • + Expand All
  • - Close All
  • Overview

    APPLICATION READY, SOLUTION ORIENTED

    This handheld field computer arrives ready not just for the harsh elements, but also eager to turn your large design files into reality. The first clue is the impressive IP68 certification that proudly proclaims its potential readiness to be submerged down to one meter for up to 2 hours.

    Second is the Intel® Atom™ Z3745 Processor that easily drives all Topcon software - and then some.  The familiarity of Windows 10 makes a comfortable platform ideal for intuitive sessions within either MAGNET® Field data collection software for survey-based projects or Pocket 3D for a construction focus.

    The optional internal 4G LTE cellular modem keeps you up to date through secure connections into either MAGNET Enterprise or Sitelink 3D web services.  Pure project management made easy.

  • Applications
    • Land Surveying
    • Civil Engineering & Design
    • Construction Survey/Layout
    • Grade Management
    • BIM for Construction
    • Mapping
    • Vertical Construction
    • Utilities
    • Forensics
    • Forestry
  • Dimensions: 13.71 x 3.45 x 21.5 cm (L x W x H)
  • Wi-Fi: 802.11 a/b/g/n 2.4 GHz and 5 GHz
  • Storage Temperature: -22° F to 158° F (-30° C to 70° C)
  • Display: 7 in. Sharp screen, Wide XGA at 1280 x 800
  • Accuracy: 2-5 m
  • Processor: Intel® Atom™ Z3745 Processor
  • Operating System: Windows® 10
  • Operation Time: Up to 15 hours (5 hours internal batteries, 10 hours with swappable batteries)
  • Bluetooth: Long-range Bluetooth Smart Ready wireless technology, v4.0 +EDR, Class 1.5, BLE support
  • Drop Test: MIL-STD-810G: Drop 4 ft. (1.2 m), vibration, humidity, tumble spec: 1,000 1.6 ft. / 0.5 m tumbles (2,000 drops)
  • Cellular*: Internal GSM 4G LTE
  • Number of Channels: 72
  • Camera*: Rear: 8 megapixel with LED Illumination Front: 2 megapixel
  • Type: uBlox NEO M8M
  • Update/Output rate: 5 Hz
  • Operating Temperature: -4° F to 122° F (-20° C to 50° C)
  • Memory: 4 GB LPDDR3 RAM, SD slot, user accessible
  • Water Resistance: IP68 certifed
  • Thermal Shock: MIL-STD-810G
