Key Features & Specs

Field Fit

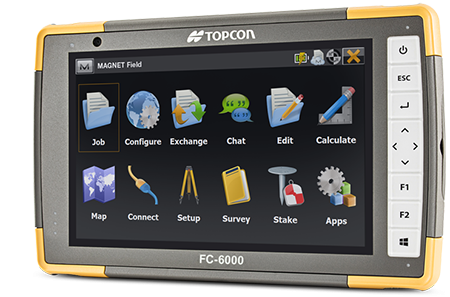

Powerful, tough, and versatile, the FC-6000 brings the processing speed expected in the office directly to your project site. Your daily field computer just arrived and it set to impress.

  • Also available in Android platform
  • MIL-STD-810G and IP68 certified
  • 8 MP rear camera, 2 MP front camera
  • Windows® 10 operating system
  • Sunlight readable 7 in. display
  • External Keyboard and docking station (click here for more information)
  • Integrated 4G LTE cellular module
  • Intel® Quad-Core Pentium N4200 Processor
  • + Expand All
  • - Close All
  • Overview

    Application Ready, Solution Oriented

    This handheld field computer arrives ready not just for the harsh elements, but also eager to turn your large design files into reality. Its rugged and functional interfaces are designed to comfortably run total stations, GNSS receivers and software simultaneously to increase productivity and enable the remote worker of the future…today!

    Second is the Intel® Pentium N4200 Processor that easily drives all Topcon software - and then some.  The familiarity of Windows 10 Pro makes a comfortable platform ideal for intuitive sessions within software solutions like MAGNET® Field data collection software for survey-based projects or Pocket 3D for a grade control.

    The internal 4G LTE cellular modem keeps you up to date through secure connections into either MAGNET Enterprise or Sitelink 3D web services.  Pure project management made easy.

  • Applications
    • Land Surveying
    • Civil Engineering & Design
    • Construction Survey/Layout
    • Grade Management
    • BIM for Construction
    • Mapping
    • Vertical Construction
    • Utilities
    • Forensics
    • Forestry
  • GNSS: u-blox NEO M8M
  • Operation Time: Up to 15 hours (5 hours internal battery, 10 hours with swappable battery)
  • Operating Temperature: -20°C to 50°C -4°F to 122°F
  • Military Standard: MIL-STD-810G: Drop 4 ft. (1.2 m) Vibration Humidity
  • Audio: 3.5 mm
  • Camera: Rear: 8MP with LED Illumination Front: 2MP
  • Display: 7" in. LCD touch screen, Wide XGA at 1280 x 800
  • Dimensions*: 21.5 x 13.7 x 3.5 cm 5.39" x 8.46" x 1.38"
  • Cellular*: Internal GSM 4G LTE
  • Operating System: Windows® 10 Pro
  • Processor: Intel® Quad-Core Pentium N4200 Processor
  • Wi-Fi: 802.11 a/b/g/n 2.4 GHz and 5 GHz
  • Memory: 8GB LPDDR4 RAM
  • USB: 1 x Type A (USB 3.0)
  • Bluetooth: LongLink™ Bluetooth technology V5.0 Class 1.5, BLE support
  • Dust / Humidity: IP68 certifed
