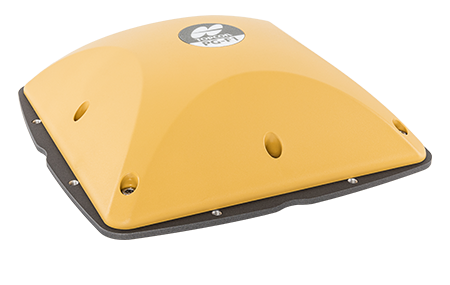

TOPCON PG-F1
GNSS Antennas
High Precision Full Wave GNSS Antenna
The PG-F1 is a Topcon full-wave antenna that provides reliable solutions by tracking GPS,GLONASS, BeiDou, Galileo, QZSS,SBAS and L-Band satellites.
PG-F1 is compact and features an ultra-rugged design with integrated ground plane.
Select a category to view specifications (or view all).
| Storage Temperature | -50ºC to 85ºC |
|---|---|
| Power Consumption | 60 mA (typical) |
| Drop Test | 2 m pole drop to concrete |
| Dust / Humidity | IP65 |
| Weight | w/o Ground Plane: 490 g |
| Out-of-Band Rejection | Lower band (1230 MHz ± 200 MHz): -30 dBc (typical) |
| Weight | w/ Ground Plane: 675 g |
| Dimensions* | 141.6 x 67.3 x 141.6 mm |
| Input Voltage | 3 to 15 VDC |
| Operating Temperature | -50°C to 85°C |
| Vibration Rating | 514.6, Category 4 |
| Operating Frequency Range | Lower Band: 1230 ± 70 MHz (L5, E5A, E5B, E3, L2, G2, E4, E6) |
| Operating Frequency Range | Upper Band: 1565 ± 50 MHz (E2, L1, E1, G1, SBAS) |
| LNA Gain | 35 dB (typical) |
| Out-of-Band Rejection | Upper band (1565 MHz ± 150 MHz): -30 dBc (typical) |
Featured Content
- Geopositioning
- Construction
- Forestry
- OEM Manufacturing
Rugged and Excellent Full Wave Tracking
The PG-F1 antenna supports a wide range of GNSS constellations. Paired with any Topcon modular or handheld GNSS receiver provides a high performance RTK system.
The PG-F1 antenna offers a dust and water resistance rating of IP65 as well as superior level of vibration and shock tolerance(IEC 60068-2).
