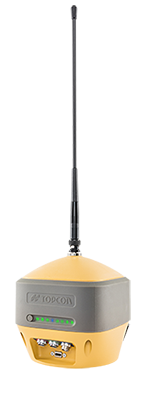

TOPCON HiPer HR
GPS Equipment
Equipment Features
- Removable, hot-swappable batteries
- Unique 9-axis TILT™ compensation
- Next generation Fence Antenna for superior reception
| Operating Temperature | -40°C to 65°C |
|---|---|
| Accuracy (See brochure for more information.) | Precision Static: H: 3 mm + 0.1 ppm V: 3.5 mm + 0.4 ppm |
| Accuracy | Static/Fast Static: H: 3 mm + 0.3 ppm V: 5 mm + 0.5 ppm |
| Drop Test | 2 meter pole-drop |
| Power | External power 6to28VDC 2 x Internal batteries 3.7 V, 2900 mAh each |
| Weight | 1kg |
| Update/Output rate | Up to 20 Hz |
| Radio | UHF(410-470MHz) SS (915 MHz) |
| LongLink | Yes |
| Waterproof | IP67 |
| Number of Channels | GPS, GLONASS, Galiileo, BeiDou, QZSS, SBAS, L-Band |
| Operation Time | Up to 9 hours with removable batteries |
| Accuracy | Maximum recommended angle for tilt compensation is 15° |
| Number of Channels | Satellites Tracked: All in view |
| Memory/Data Storage | Up to 8 GB |
| Accuracy | RTK (L1+L2): H: 5 mm + 0.5 ppm V: 10 mm + 0.8 ppm |
| I/O Communications | Internal Cell modem Wi-Fi Bluetooth® |
| Accuracy (Subject to successful TILT calibration & operating environment free of magnetic disturbances) | RTK, TILT Compensated: H: 1.3 mm/⁰Tilt; Tilt ≤ 10° H: 1.8 mm/⁰Tilt; Tilt > 10° |
| Number of Channels | 452 with patented Universal Tracking Channel Technology |
Featured List
- Rugged, waterproof IP67 environmental design
- Cellular, LongLink and Radio communications all integrated
- Internal Wi-Fi and multi-spectrum Bluetooth
- 452 Universal Tracking channels
Featured Content
- Land Surveying
- Topography & As-Built
- Construction Survey/Layout
- Grade Management
- Site Work
- Road Work
- Landfill
- Layout & Survey
Topcon Integrated Leveling Technology (TILT™)
By combining a 9-axis inertial measurement unit (IMU), along with a digital compass, the HR can accurately compensate for up to 15º of tilt on the rod.
Now you can measure all the way to a building edge without using an offset. Or stretch to get an otherwise out-of-reach point.
Just as with many other Topcon technologies, TILT™ is designed to solve real-world challenges, so your work gets easier, faster, and better.
Set yourself free
to work
The HiPer HR GNSS receiver overcomes field challenges with a unique blend of technologies. If you’re under tree cover, or can’t get the pole plumb, or need to range widely from your base, or you need superb accuracy, or work in wet conditions, or all of the above, you’ll be free to do your best work.
As part of the Elite Survey Suite hybrid positioning solution, using network correction, mounted to a vehicle or grade checking with Millimeter GPS, or an almost countless number of applications, the HR combines the features to help you succeed.
