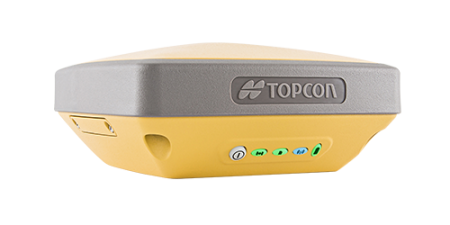

Topcon HiPer SR

HiPer SR

  • Topcon
  • Integrated GNSS Receivers

Find Your Nearest Location

Find Location
Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

SIMPLE AND SOPHISTICATED

Daily setup routines are made easy through the HiPer SR's LongLink intelligence feature. More than just a wireless Bluetooth connection, LongLink serves to automatically connect multiple HiPer SR rovers to your mobile base. Just power them on and let the system do the rest. Combine your Topcon HiPer SR receiver with a robotic total station system, to create a Hybrid solution ready for any environment.

This entry-level GNSS solution is ideal for interference-free, short-range, wireless communication between base and rover. With an optional, internal, dual-SIM cellular modem the HiPer SR can also be used as a MAGNET Relay mobile base, adding flexibility to your portfolio for your various project scenarios.

  • Signal scrubbing Fence Antenna® to provide ultimate signal lock
  • Hybrid Positioning ready
  • Capable of tracking GPS and GLONASS constellations
  • Universal Tracking Channels capable of all-in-view tracking
  • Highest accuracy positioning for RTK, network, and more
  • + Expand All
  • - Close All
  • Overview

    ALL THAT YOU NEED AND NOTHING MORE

    A single carrying case containing two of your Topcon HiPer SR receivers empowers you to make radically different choices based on the project in front of you. Straight forward, two units perform with minimal effort using a base to rover LongLink communication method. As the project size grows, each of the two HiPer SR receivers quickly morph into two unique network rover receivers. Further, same two HiPer SR units are also flexible enough to host a MAGNET Relay mobile reference station session. No project too large, no environment too harsh.

  • Applications
    • Land Surveying
    • Topography & As-Built
    • Construction Survey/Layout
    • Grade Management
    • Site Work
    • Landfill
    • Mapping
    • Utilities
    • Forensics
    • Forestry
  • Accuracy: RTK (L1+L2): H: 10 mm + 0.8 ppm V: 15 mm + 1.0 ppm
  • Signals Tracked: GPS, GLONASS, SBAS, QZSS
  • SBAS: H: 1.0 m, V: 1.5 m
  • Operation Time: Up to 20 hours
  • Operating Temperature*: -20ºC to 65ºC
  • ASCII output: NMEA 0183 version 2.x, 3.x and 4.x
  • Weight: 1.87 lbs. (850g) – Basic 2.04 lbs. (925g) – Cellular
  • Dust/Water Protection: IP67
  • External Power Connector: Yes
  • Accuracy: Static/Fast Static: H: 3.0 mm + 0.4 ppm V: 5.0 mm + 0.6 ppm
  • Accuracy (See brochure for more information.): Precision Static: H: 3.0 mm + 0.1 ppm V: 3.5 mm + 0.4 ppm
  • Number of Channels: 226-Channel Vanguard Technology™ with Universal Tracking Channels
  • Cellular: Integrated HSPA+/CDMA
  • Antenna Type: Fence Antenna
  • DGPS: H: 0.4 m, V: 0.6 m
  • Dimensions: W: 5.9” (150 mm) D: 5.9” (150 mm) H: 2.5” (64 mm)
  • Operating Temperature* (With external power): -40ºC to 65ºC
  • Real Time Data Output: TPS, RTCM SC104 v2.x, 3.x and MSM, CMR/CMR+
  • I/O Communications: Bluetooth®, Serial, USB
  • Storage Temperature: -40ºC to 70ºC
  • Memory: 2GB internal
