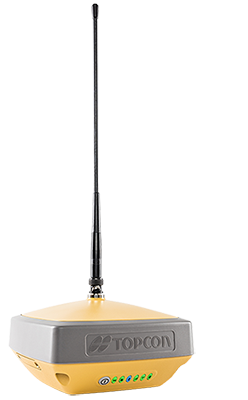

Topcon HiPer VR

HiPer VR

  • Topcon
  • Integrated GNSS Receivers

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs

Versatile Performance

Better things in smaller packages!

The HiPer VR* is compact, light and packed with the most advanced GNSS technology in a design built to withstand the harshest field environments. Using Topcon’s advanced GNSS chipset with Universal Tracking Channels Technology, the HiPer VR automatically tracks every satellite signal above – now and into the future.

All signals, all satellites and all constellations — in a compact, rugged design, with an integrated IMU and eCompass.

The HiPer VR is a complete solution and versatile in many ways. It can be used for static or kinematic GNSS post-processed surveys, as a network RTK rover with the FC-5000's internal 4G/LTE cellular modem, as a UHF/FH/Longlink jobsite RTK rover, and also in Topcon’s patented Hybrid Positioning workflow.

Top features include:

* Product might not be immediately available in all regions

  • Revolutionary 9-axis IMU and ultra-compact 3-axis eCompass
  • Universal tracking technology for all satellites and constellations (GPS, GLONASS, Galileo, Beidou, IRNSS, QZSS, SBAS) covering all modernized signals
  • Integrated License free 900 MHz Radio Modem, FH915 protocol
  • Integrated 400 MHz UHF Tx/Rx Radio Modem
  • Field tested, field ready IP67 design
  • Compact form factor ideal for Millimeter GPS and Hybrid Positioning
  • + Expand All
  • - Close All
  • Applications
    • Land Surveying
    • Topography & As-Built
    • Construction Survey/Layout
    • Grade Management
    • Site Work
    • Road Work
    • Landfill
    • Layout & Survey
  • Overview

    Topcon Inertial Leveling Technology (T.I.L.T.)

    By combining a 9-axis inertial measurement unit (IMU), along with a digital compass, the HR can accurately compensate for up to 15º of tilt on the rod. Now you can measure all the way to a building edge without using an offset. Or stretch to get an otherwise out-of-reach point. Just as with many other Topcon technologies, T.I.L.T. is designed to solve real-world challenges, so your work gets easier, faster, and better.

  • Signals Tracked*: BeiDou/BDS: B1, B2
  • Signals Tracked*: IRNSS: L5
  • Signals Tracked*: Galileo: E1/E5a/E5b/Alt-BOC
  • Dimensions: 150 x 100 x 150 mm (w x h x d)
  • Ingress Protection: IP67
  • Signals Tracked* (L5 when signal available.): SBAS: WAAS, EGNOS, MSAS, GAGAN (L1/L5§)
  • Fast Static (L1+L2): H: 3 mm + 0.4 ppm V: 5 mm + 0.5 ppm
  • Drop Test: 1.0 m drop to concrete. 2.0 m pole drop to concrete.
  • Radio: 425-470 MHz UHF radio Max Transmit Power: 1W Range: 5-7 km typical; 15 km
  • Signals Tracked*: GPS Signals: L1 C/A, L1C* L2C, L2P(Y), L5
  • Signals Tracked*: L-band: TopNET Global D & C Corrections services
  • Operation Time: RX mode - 10hr TX mode 1W - 6hr
  • Compensator Tilt Sensor*: H: 1.3 mm/°Tilt; Tilt ≤ 10° V: 1.8 mm/°Tilt; Tilt > 10°
  • RTK (L1+L2): H: 5 mm + 0.5 ppm V: 10 mm + 0.8 ppm
  • Number of Channels: 226 with Topcon’s patented Universal Tracking Channels™ technology.
  • Signals Tracked*: QZSS: L1 C/A, L1C, L1-SAIF, L2C, L5
  • Humidity: 100%, condensing
  • DGPS: 0.25 m HRMS
  • Operating Temperature: -40ºC to 65ºC
  • Weight: <1.15 kg
  • Signals Tracked* (L3C when signal available.): GLONASS: L1 C/A, L1P, L2C/A, L2P, L3C*
  • Memory: Internal Non-removable 8 GB SDHC
