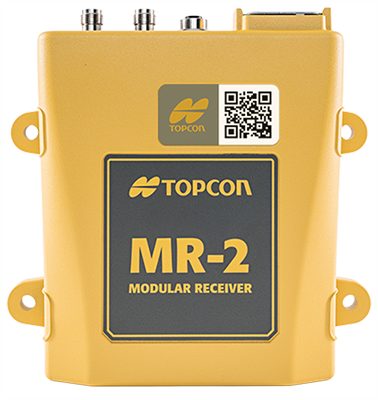

TOPCON MR-2 Modular GNSS Receiver
GPS Equipment
BUILT TO MEET ALLYOUR NEEDS
The MR-2 combines futureproof full constellation tracking with HD2/Heading capabilities and a comprehensive set of communication interfaces. The MR-2 is able to track all present and upcoming GNSS constellations and satellite signals. With 8GB of internal storage and enhanced connection options including Serial, USB, CAN and Ethernet, the MR-2 is a versatile GNSS receiver suitable for any OEM application.
Select a category to view specifications (or view all).
| DGPS | H: 0.3m, V: 0.5m |
|---|---|
| Antenna connector | 2x TNC (VDC at 0-100 mA) |
| Power Consumption | 10 watts @ 9-36 VDC |
| Number of Channels | 226 channels with universal tracking |
| Display | Power LED, Ethernet, Primary Antenna, Secondary Antenna |
| Time | 30 nsec |
| Internal | Up to 8GB for each B125 board |
| Dust/Water Protection | IP6X (fully dust proof) |
| SBAS | H: 0.8m, V: 1.2m |
| Input Voltage | 9 to 36 VDC. Reverse Polarity Protected |
| Dimensions | 172 (w) x 166 (d) x 49 (h) |
| Humidity | 100% condensing per Msp-PDA-012 class B, ref MRII-143 |
| Fast Static (L1+L2) | H: 3 mm + 0.5ppm (x baseline length) (x baseline length) V: 5 mm + 0.8ppm (x baseline length) |
| Antenna connector | 2x TNC (Antenna power 4.75-5.10 VDC) |
| RTK (L1+L2) | H: 5 mm + 0.5ppm (x baseline length) V: 10 mm + 0.8ppm (x baseline length) |
| Weight | 0.95 kg |
| Heading | Yes |
| Enclosure | Aluminum alloy |
| Waterproof | IPX7 (1 meter submersion) |
| Interface | Ethernet (10BASE-TX/100BASE-T) 10 Mbps/100 Mbps TCP/IP TCP Server/Client, FTP Server/Client, DNS server, NTRIP Server/Client |
| Storage Temperature | -50º C to 85º C |
| Velocity | 0.02 m/sec |
| LED Grade Indicators | Power, Ethernet, Primary Antenna, Secondary Antenna |
| Signals Tracked | GPS: L1 C/A, L1C, L1P(Y), L2P(Y), L2C, L5 GLONASS: L1 C/A, L1P, L2 C/A, L2P, L3C Galileo: E1, E5a, E5b, E5AltBoc BeiDou: B1, B2 SBAS Corrections: WAA |
| Ports | Deutsch DTM Series 12-pin, Receptacle for power and communications, Serial (x3), CAN and PPS on main connector, Turck M12 8-Pin, Breaks out to RJ45 and SAE power |
| Heading | Heading 0.3º/D, where D is the inter-antenna distance in meters |
| Operating Temperature | -40º C to 75º C |
| Real Time Data Output | Proprietary TPS format, RTCM SC 104 ver. 2.x, 3.0, and 3.1; CMR/CMR+; MSM; NMEA 0183 version 2.x, 3.0 and 3.01 |
| Inclination | 0.2º/D (Where D is the inter-antenna distance in meters) |
Featured List
- 226 Universal Channel Vanguard Technology
- 8GB internal memory
- Serial, USB, CAN and Ethernet connectivity
- Simultaneous RTK positioning and heading determination
