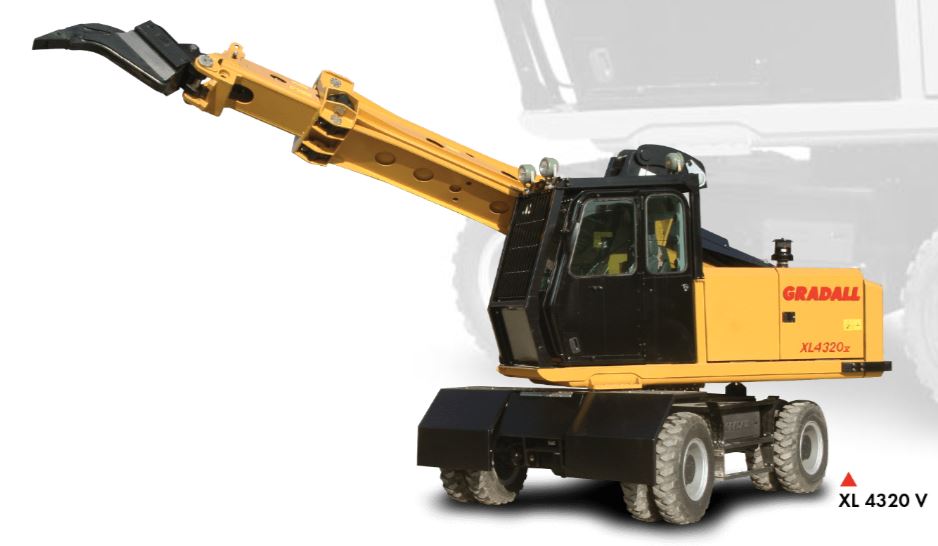

Gradall XL 4320 V

XL 4320 V

Gradall
Mine Scalling

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Powered by a single Volvo Penta engine that meets highest global standards including State IV (EU) and Tier-4 Final emissions
Steering and drive axles are fitted with axle oscillation oscillation assemblies to create a stable working platform for work in any direction without the need for outriggers
Deliver appropriate scaling power without wasting fuel using the two-section telescoping boom that’s armed with high-pressure, load sensing hydraulics
All hydraulic hoses are located safely inside the boom
High performance, high reliability 24-volt electrical system

Specifications
Documents

Max. Digging Depth: 22' 1" (6.7)
Swing Clearance: 8' 0" (2.4)
Operating Weight: 46,580 lb (21,128 kg)
HP @ RPM: 173/2200
Max. Radius at Groundline: 12' 2" (3.7)
Engine Standard: Volvo TAD571 VE, Tier 4f
Max Loading Height: 17' 5" (5.3)

Documents

Download Product Brochure
