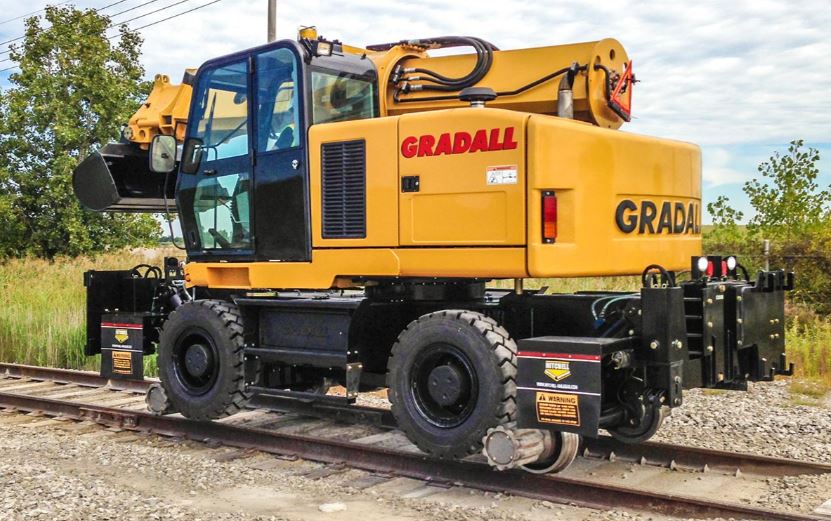

GRADALL Highway Speed – XL 3100 V
Industrial Utility
- Choose standard rail guide system for mobility and stability during digging. Or, select our optional hydrostatic drive gear system, with wheels raised during transport and lowered for extra stability when working.
- Oscillation lock cylinders and strong box plate frame construction provide stable work platform that does not require outriggers
- Easily visible gauges for oil pressure, coolant temperature, air tank pressures, fuel, DEF level, voltmeter and speed
- High performance, high reliability 24-volt electrical system
Select a category to view specifications (or view all).
| Max. Work Hgt., (Boom below grade) | 14' 11" (4.5 m) |
|---|---|
| Max. Radius at Groundline | 27' 3" (8.3 m) |
| Max. Loading Height | 15' 5" (4.7 m) |
| Engine Standard | Volvo TAD572VE Tier 4f 5.1L |
| Max Digging Depth | 18' 4" (5.6 m) |
| HP @ RPM | 215/2300 |
| Swing Clearance | 7' 6" (2.3 m) |
| Max. Lift Capacity | 7,870 lb (3,570 kg) |
| Drive | 4 x 2 or 4 x 4 |
| Operating Weight | 40,930 lb (18,566 kg) |
- Choose standard rail guide system for mobility and stability during digging. Or, select our optional hydrostatic drive gear system, with wheels raised during transport and lowered for extra stability when working.
- Oscillation lock cylinders and strong box plate frame construction provide stable work platform that does not require outriggers
- Easily visible gauges for oil pressure, coolant temperature, air tank pressures, fuel, DEF level, voltmeter and speed
- High performance, high reliability 24-volt electrical system
