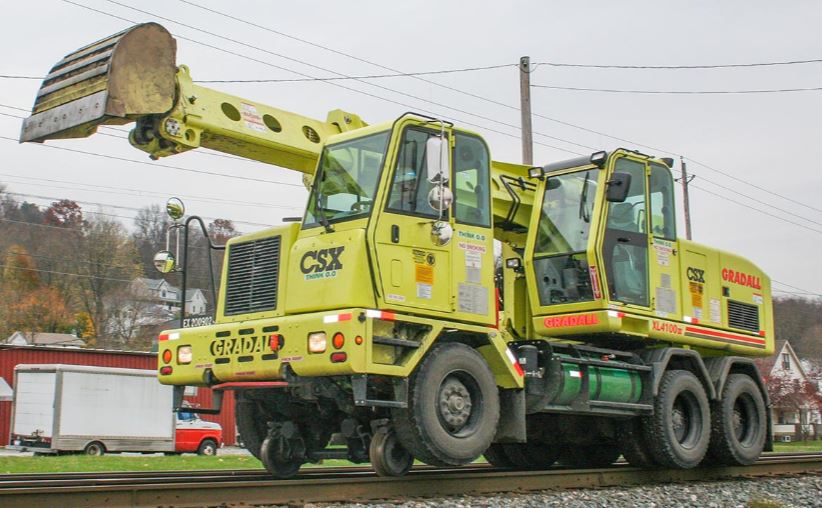

GRADALL Highway Speed – XL 4100 V
Industrial Utility
- Choose standard rail guide system for mobility and stability during digging. Or, select our optional hydrostatic drive gear system, with wheels raised during transport and lowered for extra stability when working.
- Oscillation lock cylinders and strong box plate frame construction provide stable work platform that does not require outriggers
- Easily visible gauges for oil pressure, coolant temperature, air tank pressures, fuel, DEF level, voltmeter and speed
- High performance, high reliability 24-volt electrical system
Equipment Specifications
Select a category to view specifications (or view all).
| Drive | 6 x 4 or 6 x 6 |
|---|---|
| Max. Radius at Groundline | 30' 3" (9.2 m) |
| HP @ RPM | 248/2200 |
| Max. Work Hgt., (Boom below grade) | 15' 0" (4.6 m) |
| Max Digging Depth | 20' 3" (6.2 m) |
| Max. Loading Height | 17' 2" (5.2 m) |
| Max. Lift Capacity | 12,130 lb (5,390 kg) |
| Operating Weight | 49,684 lb (22,536 kg) |
| Swing Clearance | 8' 0" (2.4 m) |
| Engine Standard | Volvo TAD871VE Tier 4f 7.7L |
