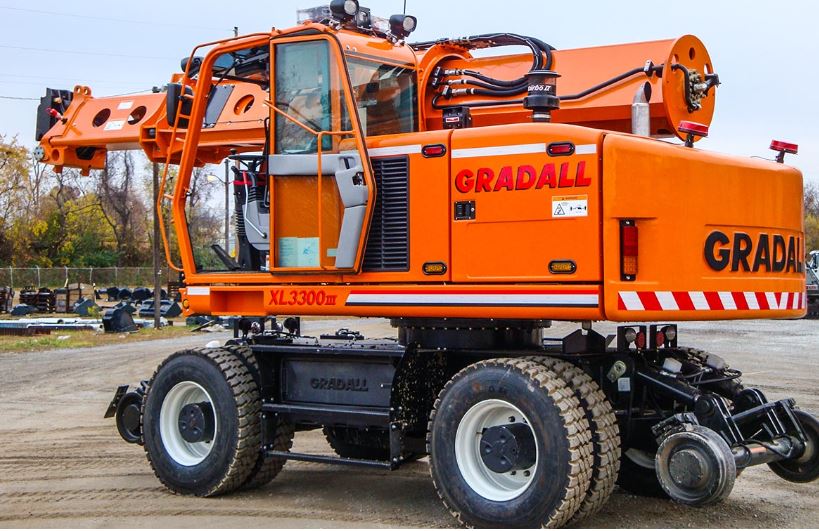

GRADALL Rough Terrain Wheeled – XL 3300 V
Industrial Utility
- Choose standard rail guide system for mobility and stability during digging. Or, select our optional hydrostatic drive gear system, with wheels raised during transport and lowered for extra stability when working.
- Oscillation lock cylinders and strong box plate frame construction provide stable work platform that does not require outriggers
- Easily visible gauges for oil pressure, coolant temperature, air tank pressures, fuel, DEF level, voltmeter and speed
- High performance, high reliability 24-volt electrical system
Equipment Specifications
Select a category to view specifications (or view all).
| Engine Standard | Volvo TAD571 VE Tier 4f 5.1L |
|---|---|
| Max. Loading Height | 15' 6" (4.7 m) |
| HP @ RPM | 172/2,000 |
| Max Digging Depth | 18' 5" (5.6 m) |
| Max. Radius at Groundline | 27' 3" (8.3 m) |
| Max. Lift Capacity | 8,150 lb (3,695 kg) |
| Drive | 4 x 4 |
| Max. Work Hgt., (Boom below grade) | 14' 9" (4.5 m) |
| Operating Weight | 39,295 lb (17,823 kg) |
| Swing Clearance | 7' 6" (2.3 m) |
