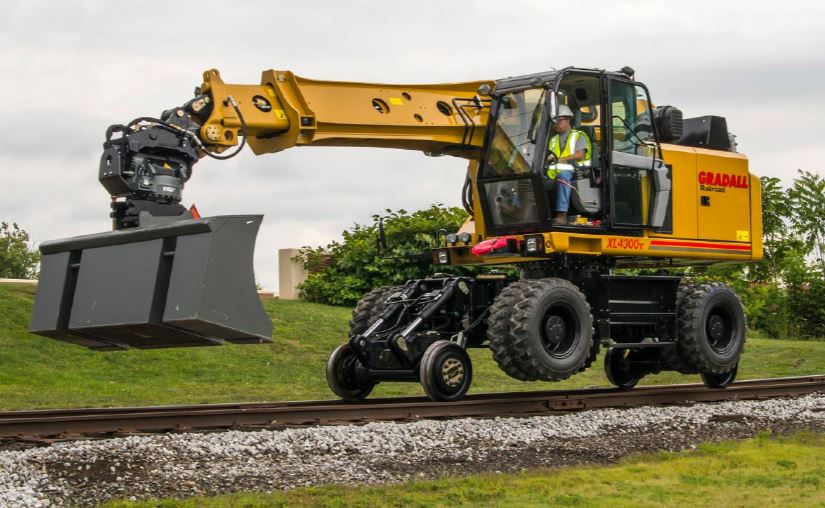

Gradall Rough Terrain Wheeled - XL 4300 V

Rough Terrain Wheeled - XL 4300 V

Gradall
Railroad Maintenance

Find a location to get your local store information and inventory.

Find Location

Your Preferred Store

Change location Change location

Choose standard rail guide system for mobility and stability during digging. Or, select our optional hydrostatic drive gear system, with wheels raised during transport and lowered for extra stability when working.
Oscillation lock cylinders and strong box plate frame construction provide stable work platform that does not require outriggers
Easily visible gauges for oil pressure, coolant temperature, air tank pressures, fuel, DEF level, voltmeter and speed
High performance, high reliability 24-volt electrical system

Specifications
Documents

Engine Standard: Volvo TAD571 VE Tier 4f 5.1L
Max. Lift Capacity: 12,540 lb (5,690 kg)
HP @ RPM: 173/2,200
Max Digging Depth: 21' 3" (6.5 m)
Drive: 4 x 4
Max. Work Hgt., (Boom below grade): 14' 9" (4.5 m)
Max. Radius at Groundline: 30' 4" (9.2 m)
Max. Loading Height: 17' 0" (5.2 m)
Operating Weight: 43,580 lb (19,768 kg)
Swing Clearance: 8' 0" (2.4 m)

Documents

Download Product Brochure
