TOPCON RL-H5 Series
Exterior
The Next Step in Distance and Accuracy

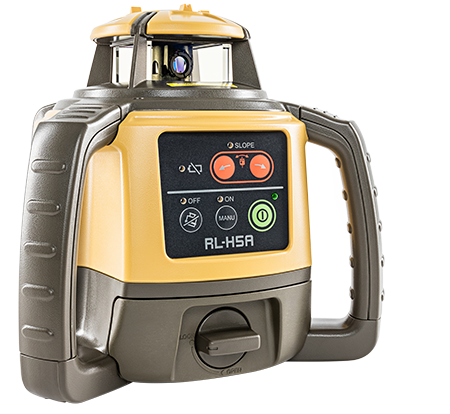

With great distance and high-accuracy — The RL-H5A is a next generation self-leveling construction laser.
Select a category to view specifications (or view all).
| Rotation Speed | 600 rpm |
|---|---|
| Dust / Humidity | IP66 |
| Operation Time | Alkaline: 100 hours Ni-MH: 60 hours |
| Working Area | RL-H5A: 800 m RL-H5B: 400 m |
| Accuracy | RL-H5A: H: ±10 arc seconds RL-H5B: H: ±20 arc seconds |
| Self-Leveling Range | Horizontal ±5° |
| Dimensions* | 205 x 211 x 172 mm |
| Operating Temperature | -20ºC to 50ºC |
Featured List
- Simple, intuitive manual slope capability
- Smart long-range receiver
- Long-range operation (800 m)
- Tough IP66 weatherproof rating
- Extra-long battery life (100 hours)
- ±10 Arc second horizontal accuracy
Featured Content
- Geopositioning
- Land Surveying
- Topography & As-Built
- Geospatial Monitoring
- Civil Engineering & Design
- Construction Survey/Layout
- Foundation and Exterior
Built for the real world
Looking for a rugged, reliable laser? A laser you can count on to increase quality and efficiency? A laser that provides maximum impact at a minimum price? You’ve found it. The RL-H5A laser is the durable, long range, high accuracy solution you need.
