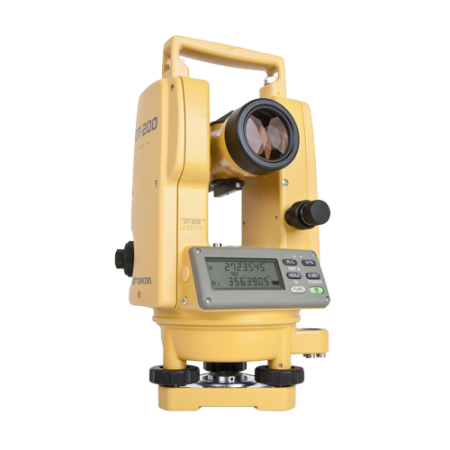

TOPCON DT-200
Lasers, Levels & Theodolites
Lightweight and compact angular measurement device
The DT-200 series integrates the same high-quality advanced absolute circle reading technology found in Topcon high-performance total station products for high accuracy field calculations.
• IP66 water and dust protection • Compact and light weight • Long-life 140 hour battery • Absolute H & V angle encoder • High accuracy (2", 5”, 7” and 9” models) measurements
| Laser Pointer | Focusing |
|---|---|
| Tilt Sensor | DT-209/DT-209L: N/A |
| Magnification | DT-207/DT-207L: 30x |
| Accuracy | DT-205/DT-205L: 5" |
| Accuracy | DT-209/DT-209L: 9" |
| Display | DT-207/DT-207L: 2 sides |
| Tilt Sensor | DT-207/DT-207L: N/A |
| Magnification | DT-205/DT-205L: 30x |
| Display | DT-205/DT-205L: 2 sides |
| Magnification | DT-209/DT-209L: 26x |
| Display | DT-209/DT-209L: 1 side |
| Operating Temperature | -68°F to 122°F (-20°C to 50°C) |
| Tilt Sensor | DT-205/DT-205L: Vertical |
| Accuracy | DT-207/DT-207L: 7" |
Featured Content
Work fast, with precision
With our DT-200 you’ll be up and working fast, thanks to its simple interface and large, easy-to-see backlit LCD. There’s an optical plummet that makes set up over a control point easy, and a tilt sensor that provides ±3 minute angle correction.
With a range of angular accuracies available, only Topcon can offer the precision, durability, and advanced technology found in the DT-200 series.
- Construction Survey/Layout
- Layout & Survey
