KLEEMANN MCO 110i PRO
Mobile Cone Crushers
Properties

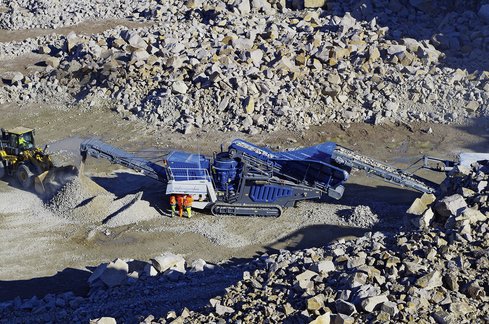

The MOBICONE MCO 110i PRO mobile cone crusher stands out thanks to its extremely robust design and impressive performance. As an option, the plant can be operated via an external power source and impresses with its low-maintenance operation.
-
Extremely robust design
-
Very high production outputs with low-maintenance operation
-
Diesel-electric drive concept with the option to connect an external power supply
-
Ideal for combination with upstream MOBICAT MC 120i PRO jaw crusher
| FEEDING CONVEYOR - Width x length | 47 in x 24 ft 7 in |
|---|---|
| POWER SUPPLY UNIT - Power supply unit output | 493 hp |
| FEEDING UNIT - Hopper length | 13 ft 7 in |
| TRANSPORT - Transport weight of basic plant | 108,600 lbs |
| CRUSHER - Crusher weight (approx.) | 35,715 lbs |
| CRUSHER DISCHARGE CONVEYOR - Crusher discharge conveyor length | 30 ft 2 in |
| TRANSPORT - Transport height approx. (standard value) | 12 ft 8 in |
| FEEDING UNIT - Feed height with extension | 9 ft 10 in |
| FEEDING CONVEYOR - Length | 24 ft 7 in |
| FEEDING UNIT - Hopper width with extension | 13 ft 9 in |
| CRUSHER DISCHARGE CONVEYOR - Discharge height, extended, approx. | 13 ft 9 in |
| TRANSPORT - Transport width approx. | 9 ft 10 in |
| FEEDING UNIT - Feed height | 8 ft 9 in |
| CRUSHER DISCHARGE CONVEYOR - Width | 39 in |
| TRANSPORT - Transport weight max. configuration approx. | 126,600 lbs |
| POWER SUPPLY UNIT - Drive concept | Diesel-electric |
| CRUSHING CAPACITY - Crushing capacity at 0-56 mm approx. | 463 US t/hr |
| POWER SUPPLY UNIT - Generator | 500 kVA |
| TRANSPORT - Transport length approx. | 57 ft 9 in |
| FEEDING UNIT - Hopper width | 5 ft 12 in |
| CRUSHER - Crusher drive type | electric |
| CRUSHER - Crusher capacity | 335 hp |
| FEEDING UNIT - Max. feed size | 9 in |
| CRUSHER DISCHARGE CONVEYOR - Length, extended | 35 ft 1 in |
| CRUSHING CAPACITY - Crushing capacity at 0-45 mm approx. | 430 US t/hr |
| CRUSHER - Crusher system size | 44 in |
| FEEDING UNIT - Hopper length with extension | 13 ft 7 in |
| CRUSHER DISCHARGE CONVEYOR - Discharge height approx. | 11 ft 10 in |
| FEEDING UNIT - Hopper volume with extension | 12 yd³ |
| FEEDING UNIT - Hopper volume | 9.8 yd³ |
Featured Content
The crushing plants are equipped with efficient, powerful diesel-electric drives. They ensure environmentally friendly operation combined with low fuel consumption.
Efficient and powerful diesel-electric drive (A) for low fuel consumption (crusher and all conveyor belts are driven electrically)
External power supply (B) for even more economic application in quarries
The easy-to-operate control concept SPECTIVE allows the machines to be operated at a touch panel. All components and functions can be controlled comfortably from the ground.
SPECTIVE guides the operator step by step through the starting procedure. The start screen provides a graphical view of the plant with all adjustable functions at a glance. When the desired function is selected, clear instructions guide users through all operating steps. If a fault occurs, a fault diagnosis appears on the display. Fault localization, the description and remedy tips result in reduced downtimes. The 12″ touch panel is resistant to dust and always easy to read thanks to the light intensity and high contrast. It reacts to fingers, pen or gloves.
The WITOS FleetView telematic system provides support for efficient fleet and service management. It provides information on the operating status of the machine independently of the location and time. Even users with only one machine benefit from WITOS.
From support for maintenance and diagnostic processes to the targeted control of the machines: the range of services is diversified and it is an ideal supplement to the WIRTGEN GROUP Smart Service agreements.
During ring bounce, a movement is created between the bowl and the main frame of the cone crusher as a result of excessive crushing forces. This is triggered by feed sizes that are too large or small, an excessive fine content or the continuous feeding of uncrushable material.
To protect the crusher, software continuously monitors the hydraulic pressure of the crusher overload system and reacts when necessary with two modes:
Mode 1 – PRECISE MODEfor the production of grit: The machine stops feeding if ring bounce is detected; the operator receives a fault message and can adapt his process. This mode assures that no impermissible oversize grain is produced and the machine is protected against crusher damage
Mode 2 – MIXTURE MODEfor the production of mixtures: In this mode, the machine adjusts the crushing gap – without intervention of the operator – automatically to prevent ring bounce. After a defined period without ring bounce, the gap is closed again to keep the share of oversize grain as low as possible
Uniform loading is indispensable for a good product, optimum throughput and low wear.
To ensure that the crushing chamber is always evenly filled, the Continuous Feed System (CFS) monitors the crusher level (jaw crusher and cone crusher) or the load at the rocker and rotor as well as the motor utilization (impact crusher).
Independently of this, the CFS regulates the frequency of the vibrating feeder and prescreen. A backlog on the prescreen is thus avoided and crusher utilization is optimized. When the crushing chamber is free again after overloading, material transport is continued without a delay.
The CFS facilitates the work of the operator because the machine automatically guarantees a homogeneous material flow, thus ensuring optimum loading of the crusher.
