Home / New Equipment / Mobile Cone Crushers / MCO 90i EVO2

KLEEMANN MCO 90i EVO2

Mobile Cone Crushers

Print this page Email this page

Equipment Specifications

TRANSPORT - Transport length with secondary screening unit approx. 66 ft 3 in
TRANSPORT - Transport weight of basic plant 75,000 lbs
POWER SUPPLY UNIT - Generator 88 kVA
POWER SUPPLY UNIT - Drive concept Diesel-direct
FEEDING UNIT - Hopper length 9 ft 10 in
CRUSHER - Crusher capacity 248 hp
Request Quote
Select a category to view specifications (or view all).
CRUSHING CAPACITY - Crushing capacity at 0-56 mm approx.281 US t/hr
CRUSHER - Crusher weight (approx.)19,600 lbs
TRANSPORT - Transport height approx. (standard value)11 ft 2 in
POST SCREENING UNIT - Discharge height, fine grain discharge conveyor, approx.11 ft 6 in
POWER SUPPLY UNIT - Rated speed1,500 rpm
FEEDING CONVEYOR - Width x length39 in x 20 ft 12 in
CRUSHER - Crusher drive typedirect
TRANSPORT - Transport width approx.9 ft 10 in
FEEDING UNIT - Hopper width9 ft 1 in
CRUSHING CAPACITY - Crushing capacity at 0-45 mm approx.270 US t/hr
CRUSHER DISCHARGE CONVEYOR - Crusher discharge conveyor length29 ft 10 in
POST SCREENING UNIT - Return conveyor length29 ft 6 in
CRUSHER - Crusher system size38 in
FEEDING CONVEYOR - Length20 ft 12 in
POST SCREENING UNIT - Return conveyor width20 in
CRUSHER DISCHARGE CONVEYOR - Length, extended34 ft 1 in
TRANSPORT - Transport width with secondary screening unit max.10 ft 8 in
TRANSPORT - Transport weight max. configuration approx.101,550 lbs
FEEDING UNIT - Feed height8 ft 10 in
FEEDING UNIT - Hopper length with extension11 ft 6 in
CRUSHER DISCHARGE CONVEYOR - Width31 in
CRUSHING CAPACITY - Crushing capacity at 0-63 mm approx.298 US t/hr
CRUSHER DISCHARGE CONVEYOR - Discharge height, extended, approx.12 ft 2 in
POST SCREENING UNIT - TypeVibrating single-deck screen
FEEDING UNIT - Hopper width with extension12 ft 2 in
FEEDING UNIT - Feed height with extension10 ft 8 in
POST SCREENING UNIT - Width x length approx.53 in x 13 ft 1 in
POWER SUPPLY UNIT - Power supply unit output385 hp - 385 hp
TRANSPORT - Transport length approx.52 ft 8 in
FEEDING UNIT - Max. feed size8 in
CRUSHER DISCHARGE CONVEYOR - Discharge height approx.10 ft 10 in
FEEDING UNIT - Hopper volume8.6 yd³
FEEDING UNIT - Hopper volume with extension10.9 yd³

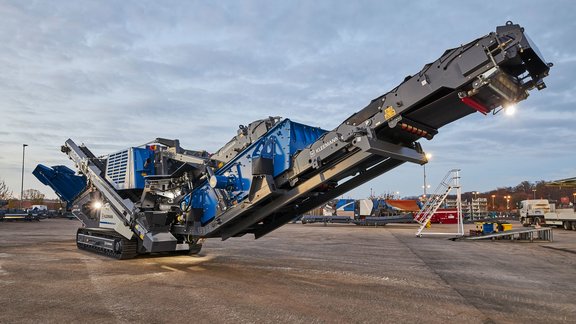

The MOBICONE MCO 90 EVO2 impresses as a powerful team player in hard stone. Whereas top product quality is expected from a cone crusher, the MCO 90 EVO2 combines this with a high production output. The plant is characterized by the best possible economy, simple operation and innovative overload systems.

  • Simple and intuitive SPECTIVE control concept
  • Continuous Feed System (CFS) for optimal crusher feeding
  • Innovative overload systems for protecting the crusher
  • Efficient and powerful diesel-directdrive
  • Linkage option with other KLEEMANN plants
  • Application as secondary or tertiary crusher
