KLEEMANN MR 130i EVO2
Mobile Impact Crushers
Equipment Specifications
| CRUSHING CAPACITY - Crushing capacity for demolished asphalt up to approx. | 287 US t/hr |
|---|---|
| POST SCREENING UNIT - Return conveyor length | 31 ft 12 in |
| CRUSHER DISCHARGE CONVEYOR - Length, extended | 37 ft 1 in |
| CRUSHING CAPACITY - Crushing capacity for demolished concrete up to approx. | 331 US t/hr |
| TRANSPORT - Transport weight of basic plant | 108,600 lbs |
| FEEDING UNIT - Max. feed size | 41 in x 26 in x 15 in |
| VIBRATING EXTRACTOR - Width x length | 55 in x 8 ft 10 in |
|---|---|
| TRANSPORT - Transport width approx. | 9 ft 10 in |
| TRANSPORT - Transport length approx. | 60 ft 4 in |
| POST SCREENING UNIT - Return conveyor, extended, width | 26 in |
| FEEDING UNIT - Feed height with extension | 15 ft 5 in |
| PRIMARY SCREENING - Type | Double-deck heavy-piece screen |
| POST SCREENING UNIT - Return conveyor width | 20 in |
| CRUSHING CAPACITY - Crushing capacity for mixed rubble up to approx. | 331 US t/hr |
| SIDE DISCHARGE CONVEYOR - Length | 13 ft 1 in |
| SIDE DISCHARGE CONVEYOR - Discharge height, extended | 11 ft 12 in |
| FEEDING UNIT - Hopper width | 7 ft 5 in |
| CRUSHER DISCHARGE CONVEYOR - Width | 55 in |
| TRANSPORT - Transport weight max. configuration approx. | 142,198 lbs |
| TRANSPORT - Transport length with secondary screening unit approx. | 70 ft 11 in |
| POWER SUPPLY UNIT - Drive concept | Diesel-direct |
| VIBRATING FEEDER - Width x length | 39 in x 8 ft 7 in |
| FEEDING UNIT - Feed height | 14 ft 3 in |
| CRUSHER - Type of impact toggle adjustment | stepless, fully hydraulic |
| FEEDING UNIT - Hopper length | 12 ft 2 in |
| CRUSHER - Crusher drive type | direct |
| TRANSPORT - Transport width with secondary screening unit max. | 10 ft 4 in |
| CRUSHER - Crusher inlet width | 52 in |
| CRUSHER - Crusher inlet (W x H) | 52 in x 36 in |
| SIDE DISCHARGE CONVEYOR - Discharge height | 9 ft 6 in |
| TRANSPORT - Transport height approx. (standard value) | 12 ft 4 in |
| CRUSHER - Crusher weight (approx.) | 650 lbs |
| CRUSHER DISCHARGE CONVEYOR - Crusher discharge conveyor length | 31 ft 10 in |
| FEEDING UNIT - Hopper width with extension | 9 ft 10 in |
| SIDE DISCHARGE CONVEYOR - Width | 26 in |
| SIDE DISCHARGE CONVEYOR - Length, extended | 19 ft 8 in |
| POST SCREENING UNIT - Type | Single-deck light-piece screen |
| CRUSHER DISCHARGE CONVEYOR - Discharge height approx. | 11 ft 12 in |
| CRUSHER - Crusher capacity | 416 hp |
| CRUSHING CAPACITY - Crushing capacity for limestone up to approx. | 375 US t/hr |
| PRIMARY SCREENING - Width x length | 48 in x 7 ft 7 in |
| TRANSPORT - Transport weight of screening unit approx. | 14,330 lbs |
| POST SCREENING UNIT - Width x length approx. | 61 in x 14 ft 11 in |
| FEEDING UNIT - Hopper length with extension | 12 ft 2 in |
| POWER SUPPLY UNIT - Generator | 135 kVA |
| POST SCREENING UNIT - Return conveyor, extended, length | 31 ft 12 in |
| POST SCREENING UNIT - Discharge height, fine grain discharge conveyor, approx. | 11 ft 9 in |
| CRUSHER - Rotor diameter | 47 in |
| POWER SUPPLY UNIT - Power supply unit output | 493 hp |
| FEEDING UNIT - Hopper volume with extension | 11.8 yd³ |
| FEEDING UNIT - Hopper volume | 6.5 yd³ |
Featured Content
Uniform loading is indispensable for a good product, optimum throughput and low wear.
To ensure that the crushing chamber is always evenly filled, the Continuous Feed System (CFS) monitors the crusher level (jaw crusher and cone crusher) or the load at the rocker and rotor as well as the motor utilization (impact crusher).
Independently of this, the CFS regulates the frequency of the vibrating feeder and prescreen. A backlog on the prescreen is thus avoided and crusher utilization is optimized. When the crushing chamber is free again after overloading, material transport is continued without a delay.
The CFS facilitates the work of the operator because the machine automatically guarantees a homogeneous material flow, thus ensuring optimum loading of the crusher.
The “Lock & Turn” system provides the highest level of safety during rotor ledge change and releasing bridging. Special keys for service flaps and components guarantee that uncontrolled movements of dangerous components are not possible and the plant or crusher can not be started when maintenance is being carried out.
A standard series rotating device also allows the rotor of the crusher to be turned and blocked manually in any position from the outside. This enables the simple and safe replacement of rotor ledges and removal of material bridging.
The easy-to-operate control concept SPECTIVE allows the machines to be operated at a touch panel. All components and functions can be controlled comfortably from the ground.
SPECTIVE guides the operator step by step through the starting procedure. The start screen provides a graphical view of the plant with all adjustable functions at a glance. When the desired function is selected, clear instructions guide users through all operating steps. If a fault occurs, a fault diagnosis appears on the display. Fault localization, the description and remedy tips result in reduced downtimes. The 12″ touch panel is resistant to dust and always easy to read thanks to the light intensity and high contrast. It reacts to fingers, pen or gloves.
The WITOS FleetView telematic system provides support for efficient fleet and service management. It provides information on the operating status of the machine independently of the location and time. Even users with only one machine benefit from WITOS.
From support for maintenance and diagnostic processes to the targeted control of the machines: the range of services is diversified and it is an ideal supplement to the WIRTGEN GROUP Smart Service agreements.
In some applications – for example in road construction – relocation of the crushing plant several times a day is necessary. When this is done, the plant should remain in operating mode so that it is quickly ready for operation again after it has been moved. The “Quick Track” option allows this to be controlled conveniently via the remote control – without leaving the operating mode.
Thanks to the time-saving (excavator driver does not need to go to the display, change operating mode, machine operation is not interrupted and therefore does not need to be started up again), the machine can continue working fast and productively.
Properties

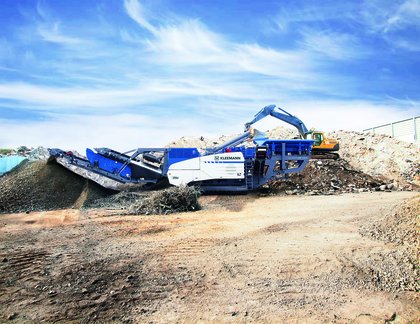

The mobile impact crusher MOBIREX MR 130i EVO2 can be deployed universally as an all-rounder and produces first-class final grain quality. With a crusher inlet width of 1300 mm, it achieves a production rate that until now was only associated with considerably larger crushing plants. This is made possible by outstanding cost effectiveness and performance with a variety of technical highlights. Thanks to its compact design, the plant is easy to transport and can be assembled and disassembled quickly.
-
Optimized material flow due to opening system widths
-
Hydraulic gap setting
-
Simple and intuitive SPECTIVE control concept
-
Efficient and powerful diesel direct drive
-
High-performance post screening unit with oversize grain returning (option)
