KLEEMANN MR 130i PRO
Mobile Impact Crushers
Equipment Specifications
| CRUSHER - Crusher inlet width | 52 in |
|---|---|
| DOUBLE-DECK POST SCREENING UNIT - Length | 18 ft 1 in |
| POWER SUPPLY UNIT - Power pack manufacturer | Scania |
| FEEDING UNIT - Hopper volume with extension | 11.8 yd³ |
| SIDE DISCHARGE CONVEYOR - Discharge height (hydraulically foldable) | 11 ft x 2 in |
| CRUSHING CAPACITY - Crushing capacity for limestone up to approx. | 441 US t/hr |
| FEEDING UNIT - Hopper length with extension | 12 ft 2 in |
|---|---|
| SIDE DISCHARGE CONVEYOR - Width | 26 in |
| SIDE DISCHARGE CONVEYOR - Length | 21 ft 8 in |
| CRUSHER - Rotor diameter | 47 in |
| FEEDING UNIT - Feed height | 14 ft 8 in |
| POWER SUPPLY UNIT - Drive concept | E-DRIVE (Diesel-electric) |
| CRUSHER DISCHARGE CONVEYOR - Crusher discharge conveyor length | 39 ft 8 in |
| FEEDING UNIT - Hopper length | 12 ft 2 in |
| CRUSHER DISCHARGE CONVEYOR - Discharge height approx. | 14 ft 5 in |
| POWER SUPPLY UNIT - Rated speed | 2,100 rpm |
| CRUSHING CAPACITY - Crushing capacity for demolished asphalt up to approx. | 243 US t/hr |
| CRUSHING CAPACITY - Crushing capacity for mixed rubble up to approx. | 496 US t/hr |
| PRIMARY SCREENING - Width x length | 3 ft 12 in x 7 ft 10 in |
| FEEDING UNIT - Hopper volume | 6.5 yd³ |
| POWER SUPPLY UNIT - Power supply unit output | 641 hp - 2100 hp |
| FEEDING UNIT - Feed height with extension | 15 ft 11 in |
| TRANSPORT - Transport weight of screening unit approx. | 28,660 lbs |
| CRUSHER - Impact crusher type | SHB130-090 |
| DOUBLE-DECK POST SCREENING UNIT - Type | Double-deck light-piece screen |
| TRANSPORT - Transport length approx. | 68 ft 9 in |
| TRANSPORT - Transport weight of basic plant | 141,150 lbs |
| CRUSHER - Crusher weight (approx.) | 37,500 lbs |
| CRUSHER - Crusher capacity | 335 hp |
| FEEDING UNIT - Max. feed size | 41 in x 26 in x 16 in |
| CRUSHING CAPACITY - Crushing capacity for demolished concrete up to approx. | 441 US t/hr |
| PRIMARY SCREENING - Type | Double-deck heavy-piece screen |
| DOUBLE-DECK POST SCREENING UNIT - Side discharge conveyor (medium grain) length | 22 ft x 4 in |
| VIBRATING FEEDER - Width x length | 44 in x 8 ft 10 in |
| DOUBLE-DECK POST SCREENING UNIT - Fine grain conveyor discharge height [Imperial] | 12 ft x 6 in |
| TRANSPORT - Transport length with secondary screening unit approx. | 76 ft 4 in |
| CRUSHER - Crusher drive type | electric |
| TRANSPORT - Transport width with secondary screening unit max. | 11 ft 6 in |
| DOUBLE-DECK POST SCREENING UNIT - Return conveyor length [Imperial] | 36 ft 9 in |
| POWER SUPPLY UNIT - Generator | 550 kVA |
| CRUSHER - Crusher inlet (W x H) | 52 in x 36 in |
| TRANSPORT - Transport width approx. | 11 ft 4 in |
| CRUSHER - Type of impact toggle adjustment | stepless, fully hydraulic |
| DOUBLE-DECK POST SCREENING UNIT - Oversize grain return conveyor width inches [Imperial] | 26 in |
| TRANSPORT - Transport height approx. (standard value) | 12 ft 10 in |
| DOUBLE-DECK POST SCREENING UNIT - Side discharge conveyor (medium grain) width | 26 in |
| SIDE DISCHARGE CONVEYOR - Discharge height | 11 ft 9 in |
| TRANSPORT - Transport weight max. configuration approx. | 183,000 lbs |
| DOUBLE-DECK POST SCREENING UNIT - Side discharge conveyor (medium grain) discharge height | 11 ft x 2 in |
| FEEDING UNIT - Hopper width | 7 ft 5 in |
| FEEDING UNIT - Hopper width with extension | 9 ft 10 in |
| SIDE DISCHARGE CONVEYOR - Length (hydraulically foldable) [Imperial] | 19 ft x 8 in |
| CRUSHER DISCHARGE CONVEYOR - Width | 56 in |
| VIBRATING EXTRACTOR - Width x length | 57 in x 8 ft 9 in |
Featured Content
The crushing plants are equipped with efficient, powerful diesel-electric drives. They ensure environmentally friendly operation combined with low fuel consumption.
Efficient and powerful diesel-electric drive (A) for low fuel consumption (crusher and all conveyor belts are driven electrically)
External power supply (B) for even more cost-effective use in quarries
Uniform loading is indispensable for a good product, optimum throughput and low wear.
To ensure that the crushing chamber is always evenly filled, the Continuous Feed System (CFS) monitors the crusher level (jaw crusher and cone crusher) or the load at the rocker and rotor as well as the motor utilization (impact crusher).
Independently of this, the CFS regulates the frequency of the vibrating feeder and prescreen. A backlog on the prescreen is thus avoided and crusher utilization is optimized. When the crushing chamber is free again after overloading, material transport is continued without a delay.
The CFS facilitates the work of the operator because the machine automatically guarantees a homogeneous material flow, thus ensuring optimum loading of the crusher.
All relevant data at a glance
> Dashboard
> Camera live image
> Reporting
> Messages and troubleshooting aids
> Overview of all plants in the train
The operator can remain in the excavator/wheel loader
> No interruption to the work process
> Increase in work safety
The easy-to-operate control concept SPECTIVE allows the machines to be operated at a touch panel. All components and functions can be controlled comfortably from the ground.
SPECTIVE guides the operator step by step through the starting procedure. The start screen provides a graphical view of the plant with all adjustable functions at a glance. When the desired function is selected, clear instructions guide users through all operating steps. If a fault occurs, a fault diagnosis appears on the display. Fault localization, the description and remedy tips result in reduced downtimes. The 12″ touch panel is resistant to dust and always easy to read thanks to the light intensity and high contrast. It reacts to fingers, pen or gloves.
Properties

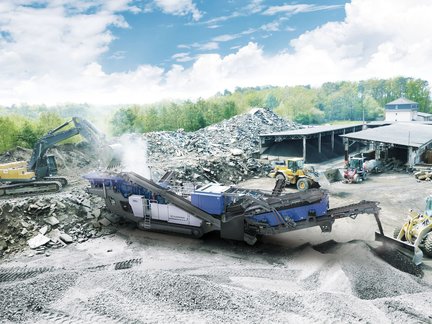

The MOBIREX MR 130(i) PRO covers a very wide application range in natural stone and recycling. A positive feature of the plant is its all-electric drive concept with the option of an external power supply. The CO2-free operation guarantees low energy consumption per ton of final product.
-
Generously dimensioned double-deck prescreen with 2.9 m2 open screening surface -
Fully hydraulic gap adjustment and overload system -
E-DRIVE diesel-electric drive concept, external power supply (optional) -
Simple and intuitive SPECTIVE control concept
