KLEEMANN MC 110i EVO2
Mobile Jaw Crushers
Equipment Specifications
| SIDE DISCHARGE CONVEYOR - Length | 8 ft 10 in |
|---|---|
| FEEDING UNIT - Max. feed size | 39 in x 24 in x 15 in |
| CRUSHER - Single toggle jaw crusher type | STR110-070 |
| CRUSHER - Crusher inlet (W x D) | 1,100 mm x 700 mm |
| POWER SUPPLY UNIT - Drive concept | Diesel-direct |
| TRANSPORT - Transport weight of basic plant | 93,750 lbs |
Select a category to view specifications (or view all).
| CRUSHER - Gap width max. | 7 in |
|---|---|
| CRUSHER - Crusher inlet width | 44 in |
| TRANSPORT - Transport length approx. | 49 ft 3 in |
| POWER SUPPLY UNIT - Generator | 88 kVA |
| CRUSHER - Crusher drive type | direct |
| FEEDING UNIT - Feed height with extension | 14 ft 1 in |
| TRANSPORT - Transport height approx. (standard value) | 11 ft 2 in |
| POWER SUPPLY UNIT - Power supply unit output | 322 hp - 326 hp |
| CRUSHER - Crusher capacity | 215 hp |
| FEEDING UNIT - Hopper width | 6 ft 9 in |
| CRUSHING CAPACITY - Crushing capacity with CSS = 100 mm up to approx. | 231 US t/hr |
| TRANSPORT - Transport width approx. | 9 ft 10 in |
| CRUSHING CAPACITY - Crushing capacity with CSS = 60 mm up to approx. | 143 US t/hr |
| FEEDING UNIT - Hopper width with extension | 9 ft 1 in |
| TRANSPORT - Transport weight max. configuration approx. | 106,350 lbs |
| PRIMARY SCREENING - Width x length | 40 in x 6 ft 1 in |
| PRIMARY SCREENING - Type | Double-deck heavy-piece screen |
| SIDE DISCHARGE CONVEYOR - Discharge height | 6 ft 9 in |
| CRUSHER DISCHARGE CONVEYOR - Discharge height, extended, approx. | 12 ft 4 in |
| CRUSHER - Crusher weight (approx.) | 37,500 lbs |
| CRUSHER DISCHARGE CONVEYOR - Crusher discharge conveyor length | 31 ft 2 in |
| CRUSHER DISCHARGE CONVEYOR - Width | 39 in |
| POWER SUPPLY UNIT - Rated speed | 1,500 rpm |
| CRUSHER DISCHARGE CONVEYOR - Length, extended | 36 ft 1 in |
| SIDE DISCHARGE CONVEYOR - Width | 20 in |
| CRUSHER DISCHARGE CONVEYOR - Discharge height approx. | 10 ft 4 in |
| SIDE DISCHARGE CONVEYOR - Discharge height, extended | 9 ft 8 in |
| SIDE DISCHARGE CONVEYOR - Length, extended | 16 ft 5 in |
| CRUSHER - Gap width min. | 1.2 in |
| VIBRATING FEEDER - Width x length | 40 in x 8 ft 6 in |
| FEEDING UNIT - Hopper length with extension | 11 ft 6 in |
| FEEDING UNIT - Hopper length | 11 ft 1 in |
| CRUSHER - Crusher gap adjustment | Fully hydraulic |
| FEEDING UNIT - Feed height | 12 ft 10 in |
| FEEDING UNIT - Hopper volume | 5.8 yd³ |
| FEEDING UNIT - Hopper volume with extension | 10 yd³ |

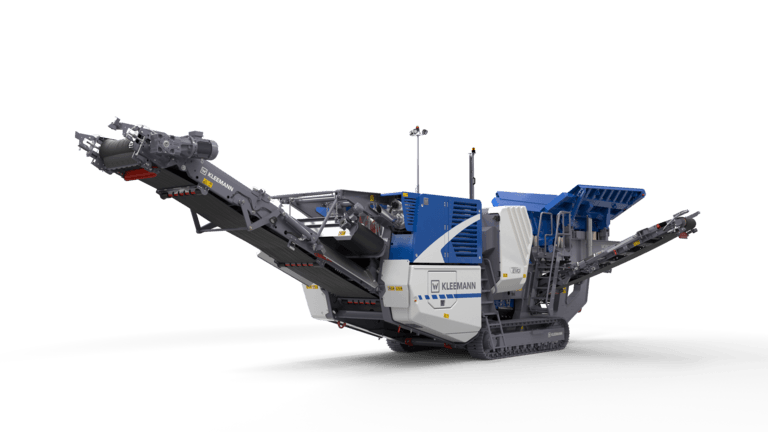

The jaw crusher MOBICAT MC 110 EVO2 is used for the precrushing of almost all natural rock and in recycling. Compact dimensions, efficient prescreening, simple operation via SPECTIVE as well as impressive production output characterize the efficient key player.
-
Continuous Feed System (CFS) for optimal crusher feeding
-
Innovative crusher unblocking system for extremely short downtimes
-
Innovative overload and control systems for protection of the crusher
-
Independently vibrating double-deck prescreen
-
Efficient and powerful diesel-direct drive
-
Simple and intuitive SPECTIVE control concept
