KLEEMANN MC 120i PRO
Mobile Jaw Crushers
Equipment Specifications
| POWER SUPPLY UNIT - Generator | 500 kVA |
|---|---|
| PRIMARY SCREENING - Type | Double-deck heavy-piece screen |
| FEEDING UNIT - Hopper length | 13 ft 5 in |
| FEEDING UNIT - Hopper width with extension | 12 ft 10 in |
| CRUSHING CAPACITY - Crushing capacity with CSS = 100 mm up to approx. | 276 US t/hr |
| TRANSPORT - Transport weight max. configuration approx. | 187,500 lbs |
| CRUSHER DISCHARGE CONVEYOR - Discharge height, extended, approx. | 14 ft 11 in |
|---|---|
| CRUSHER - Gap width min. | 3 in |
| SIDE DISCHARGE CONVEYOR - Width | 26 in |
| FEEDING UNIT - Feed height with extension | 17 ft 4 in |
| SIDE DISCHARGE CONVEYOR - Length | 21 ft 10 in |
| FEEDING UNIT - Hopper length with extension | 12 ft 10 in |
| CRUSHER DISCHARGE CONVEYOR - Width | 47 in |
| TRANSPORT - Transport height approx. (standard value) | 13 ft 5 in |
| POWER SUPPLY UNIT - Rated speed | 1,800 rpm |
| CRUSHER DISCHARGE CONVEYOR - Crusher discharge conveyor length | 40 ft 4 in |
| FEEDING UNIT - Max. feed size | 43 in x 27 in x 16 in |
| CRUSHER DISCHARGE CONVEYOR - Length, extended | 45 ft 7 in |
| TRANSPORT - Transport width approx. | 9 ft 10 in |
| PRIMARY SCREENING - Width x length | 48 in x 9 ft 6 in |
| CRUSHER - Crusher gap adjustment | Fully hydraulic |
| CRUSHER - Crusher inlet width | 48 in |
| VIBRATING FEEDER - Width x length | 44 in x 11 ft 10 in |
| CRUSHING CAPACITY - Crushing capacity with CSS = 130 mm up to approx. | 358 US t/hr |
| FEEDING UNIT - Feed height | 16 ft 2 in |
| TRANSPORT - Transport length approx. | 63 ft 6 in |
| CRUSHER - Crusher weight (approx.) | 64,350 lbs |
| CRUSHER - Single toggle jaw crusher type | STR120 |
| CRUSHER - Gap width max. | 8 in |
| CRUSHER DISCHARGE CONVEYOR - Discharge height approx. | 13 ft 1 in |
| CRUSHER - Crusher inlet (W x D) | 1,200 mm x 800 mm |
| FEEDING UNIT - Hopper width | 9 ft 4 in |
| POWER SUPPLY UNIT - Power supply unit output | 493 hp |
| SIDE DISCHARGE CONVEYOR - Discharge height | 11 ft 4 in |
| POWER SUPPLY UNIT - Drive concept | Diesel-electric |
| CRUSHER - Crusher drive type | electric |
| TRANSPORT - Transport weight of basic plant | 159,900 lbs |
| CRUSHING CAPACITY - Crushing capacity with CSS = 160 mm up to approx. | 441 US t/hr |
| VIBRATING EXTRACTOR - Width x length | 51 in x 6 ft 7 in |
| CRUSHER - Crusher capacity | 268 hp |
| FEEDING UNIT - Hopper volume with extension | 17 yd³ |
| FEEDING UNIT - Hopper volume | 12.7 yd³ |
Featured Content
The crushing plants are equipped with efficient, powerful diesel-electric drives. They ensure environmentally friendly operation combined with low fuel consumption.
Efficient and powerful diesel-electric drive (A) for low fuel consumption (crusher and all conveyor belts are driven electrically)
External power supply (B) for even more economic application in quarries
The easy-to-operate control concept SPECTIVE allows the machines to be operated at a touch panel. All components and functions can be controlled comfortably from the ground.
SPECTIVE guides the operator step by step through the starting procedure. The start screen provides a graphical view of the plant with all adjustable functions at a glance. When the desired function is selected, clear instructions guide users through all operating steps. If a fault occurs, a fault diagnosis appears on the display. Fault localization, the description and remedy tips result in reduced downtimes. The 12″ touch panel is resistant to dust and always easy to read thanks to the light intensity and high contrast. It reacts to fingers, pen or gloves.
Jaw crushers operate according to the principle of pressure crushing. The crushed material is crushed in the wedge-shaped pit between the fixed crusher jaw and the crusher jaw articulated on an eccentric shaft. The material is crushed by the elliptic course of movement and falls down due to gravity. This occurs until the material is smaller than the set crushing gap.
Uniform loading is indispensable for a good product, optimum throughput and low wear.
To ensure that the crushing chamber is always evenly filled, the Continuous Feed System (CFS) monitors the crusher level (jaw crusher and cone crusher) or the load at the rocker and rotor as well as the motor utilization (impact crusher).
Independently of this, the CFS regulates the frequency of the vibrating feeder and prescreen. A backlog on the prescreen is thus avoided and crusher utilization is optimized. When the crushing chamber is free again after overloading, material transport is continued without a delay.
The CFS facilitates the work of the operator because the machine automatically guarantees a homogeneous material flow, thus ensuring optimum loading of the crusher.
The WITOS FleetView telematic system provides support for efficient fleet and service management. It provides information on the operating status of the machine independently of the location and time. Even users with only one machine benefit from WITOS.
From support for maintenance and diagnostic processes to the targeted control of the machines: the range of services is diversified and it is an ideal supplement to the WIRTGEN GROUP Smart Service agreements.
Properties

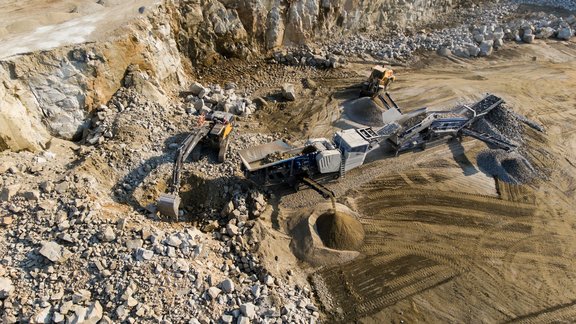

The MOBICAT MC 120i PRO, the first jaw crusher in the PRO range, is used for precrushing almost all types of natural stone. The jaw crusher is extremely robust and impresses with its low-maintenance operation. The machine therefore guarantees high production outputs.
-
Extremely robust design
-
Very high production outputs with low-maintenance operation
-
Crusher unblocking system via frequency converter (optional)
-
External power supply (optional)
-
Ideal for combination with downstream MOBICONE MCO 110i PRO cone crusher
-
Optional crusher discharge chute
