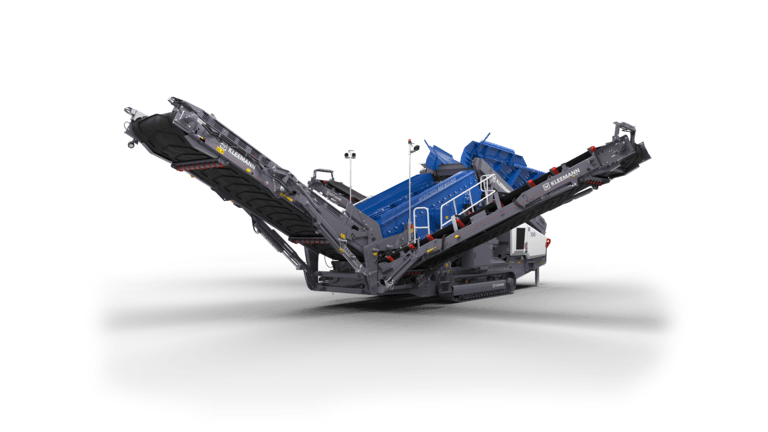

KLEEMANN MSS 802i EVO
Mobile Screening Plants
Properties
Changing work sites and new applications often create challenges for screening plants. The mobile screen for coarse elements MOBISCREEN MSS 802i EVO is ideally prepared for this. The large range of screen surfaces and the simple setting of screening parameters make it possible to adapt the MSS 802i EVO easily to new application conditions.
-
Mobile double-deck screening unit
-
Diesel-hydraulic drive
-
Screen for coarse elements
-
Maximum feed size 500 mm
| FEEDING CONVEYOR - Width x length | 1,400 mm x 4,500 mm |
|---|---|
| FEEDING UNIT - Hopper volume | 9.1 m³ |
| BELT CONVEYOR DISCHARGE, FINE GRAIN - Width x Length | 1,200 mm x 4,380 mm |
| SCREENING UNIT - Upper deck (W x L) | 1,550 mm x 4,880 mm |
| DISCHARGE CONVEYOR OVERFLOW UPPER DECK (OVERSIZE GRAIN) - Width x Length | 1,400 mm x 6,065 mm |
| POWER SUPPLY UNIT - Drive concept | Diesel-hydraulic |
| FEEDING UNIT - Feed capacity up to approx. | 500 t/h |
| TRANSPORT - Transport length approx. | 15,840 mm |
| SCREENING UNIT - Model | Double-deck screen machine |
| TRANSPORT - Transport width approx. | 3,000 mm |
| DISCHARGE CONVEYOR OVERFLOW UPPER DECK (OVERSIZE GRAIN) - Discharge height approx. | 4,050 mm |
| DISCHARGE CONVEYOR OVERFLOW LOWER DECK (MEDIUM GRAIN) - Discharge height approx. | 3,680 mm |
| DISCHARGE CONVEYOR OVERFLOW LOWER DECK (MEDIUM GRAIN) - Width x length | 900 mm x 7,760 mm |
| TRANSPORT - Transport weight of basic plant approx. | 30,000 kg |
| FEEDING UNIT - Feeding height | 3,570 mm |
| SCREENING UNIT - Lower deck (W x L) | 1,550 mm x 4,500 mm |
| FEEDING UNIT - Max. feed size | 800 mm x 500 mm x 300 mm |
| TRANSPORT - Transport height approx. (default value) | 3,400 mm |
| POWER SUPPLY UNIT - Power supply unit output | 99 kW |
Featured Content
Scalping screens are designed such that they can sort material even before the first crushing stage. For this purpose, different screening plant versions are available with different screen casing sizes as double-deck screening plants.
The matching screen surfaces for optimum results
During the daily routine, screen surfaces are really put to the test. To guarantee long-term, reliable screening to the desired final grain size, the screen surfaces from KLEEMANN are made of particularly wear-resistant spring wire steel or round wire.
Thanks to the double-anchoring at the crossings, they have a high mesh stability for uniform screening. The screening result itself is determined by numerous factors. The most important influence factors include the grain shape, the humidity content and the feed volume.
(Dual Power Option)
Electricity is often cheaper than diesel. Added to this are ecological, legal or social provisions that often restrict the use of diesel.
The screening plants are equipped with a Dual Power System with two electric motors each with 37 kW (50 PS) for high work output combined with low fuel consumption. Connection is made via an electrical device. This permits a quick switch between two power sources (diesel engine or external power supply). Users thus remain flexible and the pollutant emission is reduced.
The WITOS FleetView telematic system provides support for efficient fleet and service management. It provides information on the operating status of the machine independently of the location and time. Even users with only one machine benefit from WITOS.
From support for maintenance and diagnostic processes to the targeted control of the machines: the range of services is diversified and it is an ideal supplement to the WIRTGEN GROUP Smart Service agreements.
