KLEEMANN MBT 24i
Mobile Stockpile Conveyors
Properties

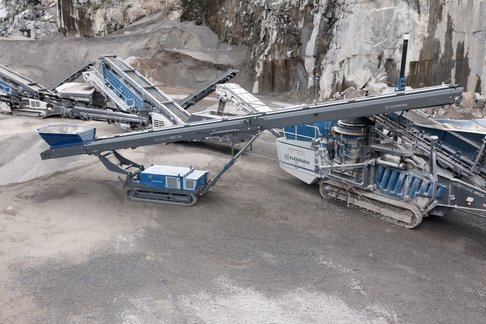

The mobile stackers MOBIBELT MBT 20(i)/MBT 24(i) are used for efficient logistics processes on work sites. They flexibly extend the operating range of mobile crushing and screening plants and guarantee larger stockpiles, improved work site logistics and all this combined with simple operation.
-
Generously dimensioned feed hopper
-
Diesel-hydraulic drive concept H-DRIVE, external power supply (optional)
-
Simple operation thanks to SPECTIVE operating position and local control elements
-
Hydraulically adjustable feeding and discharge height
Select a category to view specifications (or view all).
| CONVEYOR BELT - Stockpile volume | 1,770 yd³ |
|---|---|
| SIZE AND WEIGHT - Height x height | 33 ft x 12 in |
| FEEDING UNIT - Feed capacity up to approx. | 496 US t/hr |
| CONVEYOR BELT - Width x length | 39 in x 74 ft 6 in |
| SIZE AND WEIGHT - Transport length | 38 ft x 9 in |
| SIZE AND WEIGHT - Width | 7 ft x 6 in |
| POWER SUPPLY UNIT - Power pack manufacturer (Stage V) | John Deere |
| POWER SUPPLY UNIT - Drive concept | H-DRIVE (Diesel-hydraulic) |
| SIZE AND WEIGHT - Transport width | 7 ft x 6 in |
| CONVEYOR BELT - Troughing angle | 45 ° |
| SIZE AND WEIGHT - Transport weight of basic plant | 27,750 lbs |
| POWER SUPPLY UNIT - Power supply unit output | 49 hp |
| CONVEYOR BELT - Belt spec | EP400/3 +1,5 |
| CONVEYOR BELT - Belt drive, hydraulic | 38 in³ |
| SIZE AND WEIGHT - Width x length | 7 ft 6 in x 71 ft 11 in |
| SIZE AND WEIGHT - Transport height max. | 8 ft x 4 in |
| POWER SUPPLY UNIT - Power pack manufacturer (Tier 3/ Stage IIIA) | Kubota |
| POWER SUPPLY UNIT - Power pack manufacturer (Tier 4/ Stage IV) | John Deere |
| POWER SUPPLY UNIT - Diesel tank capacity | 58 Imp.gal |
| FEEDING UNIT - Hopper volume | 1.6 yd³ |
| FEEDING UNIT - Max. feed size | 8 in |
| CONVEYOR BELT - Discharge height | 33 ft x 2 in |
Properties
The mobile stackers MOBIBELT MBT 20(i)/MBT 24(i) are used for efficient logistics processes on work sites. They flexibly extend the operating range of mobile crushing and screening plants and guarantee larger stockpiles, improved work site logistics and all this combined with simple operation.
-
Generously dimensioned feed hopper -
Diesel-hydraulic drive concept H-DRIVE, external power supply (optional) -
Simple operation thanks to SPECTIVE operating position and local control elements -
Hydraulically adjustable feeding and discharge height
