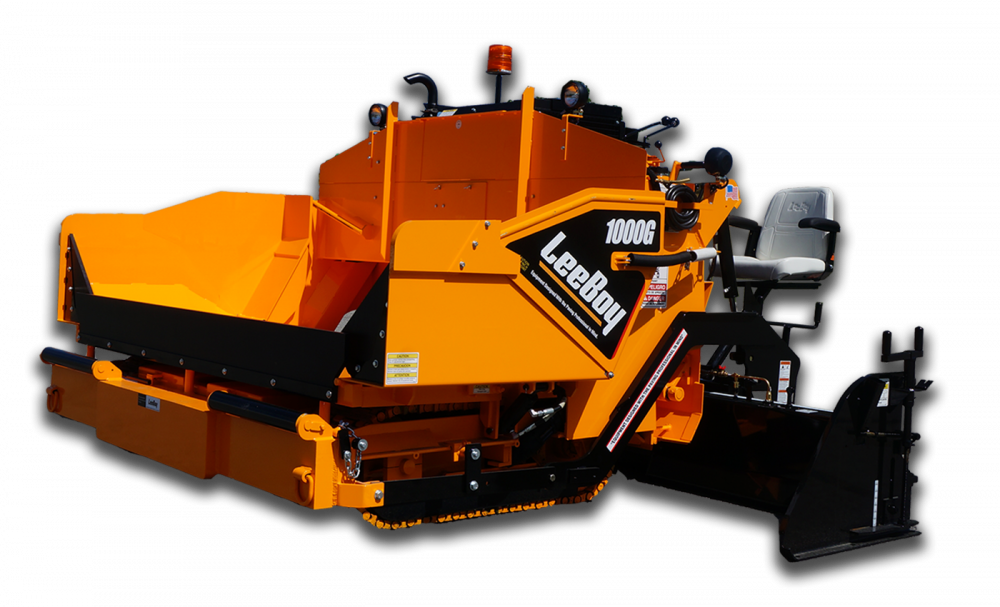

Asphalt Paver 1000G

  • Leeboy
  • LeeBoy Commercial Class Pavers

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs
  • Weight (with screed) 11,000 lbs. (4,990 kg)
  • Tier 4 Final – 49hp (37kw) @ 2,600 RPM
  • Paving Widths Variable Up To 13’ (3.9 m)
  • + Expand All
  • - Close All
  • Push Rollers:

    Two 3” (.076 m) diameter rollers with sealed bearings
  • Screed End Gates:

    Equipped with vertical height adjustment and tilt
  • Hydraulic System:

    Variable volume hydraulic pumps for each drive
    A constant volume pump for all other hydraulic functions
    Hydraulic reservoir: 45 gallons (170 l)
  • Paving Widths:

    Variable up to 13' (3.9 m)
  • Training, Support and Company:

    Training and support manuals
    Optional on-site operator training by Dealer
    One-year, unlimited hours warranty against any manufacturer defects
    Extended warranty available
    50+ years manufacturing experience
    ISO 9001 Certified
    Manufactured in the USA



  • Screed Heat:

    Two 54,000 BTU propane burners on main screed
    Each extension has one 36,000 BTU propane burner
    One 36,000 BTU burner igniter
  • Operator’s Platform:

    Full machine width platform with left hand seat
  • Washdown System:

    Electric HD pump with one 22’ x .375” (6.706 x .009 m) and one 15’ x .375” (4.572 x .009m) diameter hoses and spray nozzles
  • Screed:

    Legend full free floating 19” (.483 m) screed, consisting of a 13” (.330 m) main screed
    Constructed of .375” (.010 m) AR 400 bolt-on wear plates for easy replacement
  • Engine:

    Kubota turbocharged diesel
    Tier 4 Final – 49hp (37kw) @ 2,600 RPM
  • Capacities:

    Fuel: 13.5 gallons (51 l)
    Hydraulic: 45 gallons (170 l)
  • Additional Standard Equipment:

    Back-up alarm
    Lockable fuel and hydraulic caps
    Rotating safety beacon
    Adaptable for field automation installation
    Wired for optional sonic auger, sensors and cord

  • Optional Equipment:

    Two-speed track drive (track only)
    Failsafe brake
    Sonic auger, sensors and cord
    LED work light package
    Hose reel, limited to one
    Electric screws for grade controls
    Wiring only, grade controls (TopCon), includes A/M modules
    Sonic grade control, one side (TopCon)




  • Material Flow Gates:

    Two independent hydraulically operated 4’ (1.219 m) wide gates located under the augers and constructed of at least .25” (.006 m) A-36 plate steel
  • Screed Extensions:

    Two 44” (1.118 m) screed extensions hydraulically actuated to a width of 13’ (3.96 m)
    To eliminate seams, the heated extensions are mounted flush with the main screed and are adjustable with the angle of attack
    Includes replacement .25” (.006m) AR 400 bottom wear plates
  • Hopper:

    Gravity fed, hydraulically raised hopper
    Side wings fold in or out
    Hopper size: 5.5 ton (4,900 kg)
    Hopper height: 22” (.559 m)
  • Paving Depths:

    Depth: 0” to 6” (.152 m)
  • Screed Crown/Invert:

    Equipped with a crown/invert adjustment allowing at least 2” (.051m) of crown and 1.5” (.038 m) of valley
    Includes a leveling indicator for the operator to know when the screed is level
  • Track Drive System:

    Hydrostatically powered, self-cleaning friction drive tracks consisting of two drive tires and hydraulically adjustable front idler
    Drive mechanism consists of two torque hubs for variable speeds
    Track size: 14” wide x 48” long (.356 x 1.219 m) steel
    Paving speed: 0 to 220’ per minute (2.5 mph)
    Travel speed: 0 to 220’ per minute (2.5 mph)

  • Steering:

    Independent hydrostatic steering from the left or right side of machine
  • Screed Vibration:


    Equipped with a hydraulic vibrator capable of producing 2,000 vibrations per minute
  • Dimensions:

    Length: 9’6” (2.9 m)
    Width: 8’6” (2.59 m) transport
    9’ (2.7 m) hopper wings down
    Height: 7’ (2.13 m)
    Total Weight (with screed): 11,000 lbs. (4,990 kg)

  • Operator’s Controls:

    All control levers are on the left side
    Right side levers include left and right drive control, right auger, right screed extension and hopper
  • Material Augers:

    Two independently operated hydraulic casted augers constructed with .625” (.016 m) segmented A 36 steel
    Augers are 9” (.229 m) diameter
