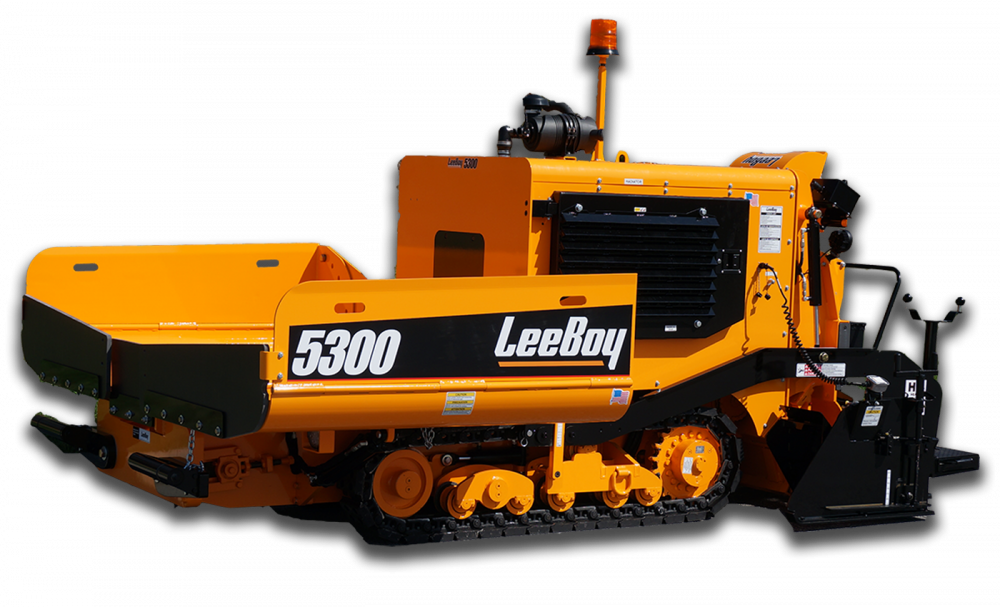

  • Material Augers:

    Two independent hydraulically operated cast augers constructed with .625” (.016 m) AR 4140 HT (heat treated) steel with replaceable flights
    Augers are 12” (.305 m) diameter
  • Additional Standard Equipment:

    Back-up alarm
    Rotating safety beacon
    Operation LED light package
    Washdown tank, 5 gallon (18.92 l)
    Pressure transducers
    Sonic auger, sensors and cords
    Grade control wiring (Topcon or Spectra-Physics)
    Slim line end gates

  • Screed Vibration:

    Equipped with two hydraulic vibrators capable of producing 4,200 vibrations per minute
  • Dimensions:

    Length: 15’ 5” (4.69 m)
    Width: 4’ 5” (1.346 m) transport
    9’ 7” (2.92 m) hopper wings down
    Height: 7’ 8” (2.337 m)
    Total Weight (with screed): 12,700 lbs. (5,760 kg)

  • Training, Support and Company:

    Training and support manuals
    Optional on-site operator training by Dealer
    One-year, unlimited hours warranty against any manufacturer defects
    Extended warranty available
    50+ years manufacturing experience
    ISO 9001 Certified
    Manufactured in the USA

  • Track Drive System:

    Hydrostatically powered, self-cleaning crawler type tracks consisting of drive sprocket, six rollers (two of which oscillate) and hydraulically adjustable front idler
    Drive mechanism has two torque hubs
    Fail safe brakes with anti-creep function
    Track size: 7” wide x 5’ 1” long (.177 x 1.54 m) steel (wheel base)
    Paving speed: 0 to 151’ per minute (1.7 mph)
    Travel speed: 0 to 239’ per minute (2.7 mph)

  • Push Rollers:

    Two 2.88” (.073 m) diameter rollers with sealed bearings mounted to allow pivoting on frame
  • Capacities:

    Fuel: 25 gallons (95 l)
    Hydraulic reservoir: 33 gallons (124.9 l)
  • Optional Equipment:

    Mini Electric HD Legend Screes
    9’ paving kit, includes auger extensions, shields and screed extensions
    Swivel/pivoting push roller
    Hydraulic tow-points
    Dual grade control (TopCon P-32 system)
    Dual grade and slope (TopCon P-32 system)
    Left hand auger strike off plate
    Right hand auger strike off plate

  • Hopper:

    Single 13.44” (.34 m) feeding conveyor
    Conveyor is controlled by automatic sensors
    Hopper size: 7 ton (6,350 kg)
    Hopper height: 22” (.559 m)

  • Washdown System:

    Electric HD pump with one 15’ x .3125” (4.572 x .008 m) diameter hose
  • Paving Depths:

    Manual flight screws positioned on the screed to control material thickness
    Depth: 0” to 6” (.152 m)
    OPTIONAL: Hydraulically operated tow cylinders control material thickness with toggle switches for each side

  • Operator’s Platform:

    Full machine width platform
  • Operator’s Controls:

    All control switches are in a single control box which can be moved from right side to left side
  • Paving Widths:

    Variable Up To 7’ (2.13 m)
  • Screed:

    HD mini full free floating 46” (1.16 m) screed, consisting of a 15.375” (.390 m) by 3’ 10” (1.168 m) main screed
    Constructed of .375” (9.52 mm) AR 400 bolt-on wear plate for easy replacement
  • Screed Heat:

    Two 54,000 BTU propane burners on main screed
    Each extension has one 36,000 BTU propane burner
    Two 36,000 BTU burner igniters
    OPTIONAL - Electric: Two 1000 watt and one 250 watt element on main screed
    Each extension has one 1000 watt element
    7.5 kw generator mounted on tractor

  • Engine:

    Kubota turbocharged diesel, V2607-CR-TE4B
    Tier 4 Final – 64.4 hp (48 kw) @ 2,400 rpm
  • Screed Crown/Valley:

    Equipped with a crown/invert adjustment allowing at least 1.5” (.038 m) in either direction
    Includes a leveling indicator for the operator to know when the screed is level
  • Under Auger Material Cutoff:

    One hydraulically operated 3’ 8” (1.11 m) wide cutoff located under the augers and constructed of .375” (9.52 mm) A-36 steel plate
  • Screed Extensions:

    Two 21.19” (.538 m) screed extensions hydraulically operated
    To eliminate seams, the heated extensions are adjustable and mounted flush with the main screed
    Includes replaceable .25” (.006m) AR 400 bottom wear plates

  • Hydraulic System:

    Variable volume hydraulic pumps for each drive
    Load sense pump controls augers, conveyor and all other hydraulic functions
    A hydraulic gear pump powers the hydraulically driven fan and provides charge pressure to the variable volume pump
    Hydraulic reservoir: 33 gallons (124 l)
    Hydraulic oil: all weather, all temperature

  • Steering:

    One electric steering box can be moved from left to right operating station
    Electronically controlled pumps operated by the forward/reverse joysticks
