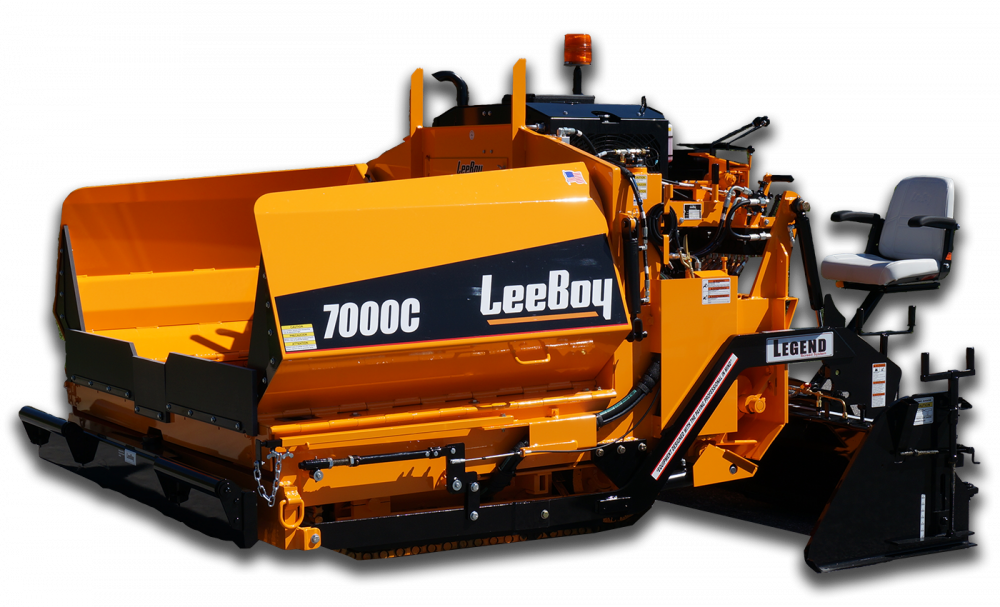

LEEBOY Asphalt Paver 7000C
LeeBoy Commercial Class Pavers
Equipment Features
- Tier 4 Final – 65 hp (48kw) @ 2,400 rpm
- Weight (with screed): 13,000 lbs. (5,897 kg)
- Paving Widths Variable Up To 13’ (3.9 m)
Equipment Features
Featured Content
(Legend) full free floating 19” (.483 m) screed, consisting of a 13” (.330 m) by 8’ (2.438 m) wide main screed
Constructed of .375” (.010 m) AR 400 bolt-on wear plates for easy replacement
Dual 36” (.914 m) feeding conveyors
Each conveyor is independent with automatic cut-offs
Hopper is hydraulically raiseable to allow for cleaning and service
Hopper size: 6 ton (5,443 kg)
Hopper height: 22” (.559 m)
Electric HD pump with one 22’ x .375” (6.706 x .009 m) and one 15’ x .375” (4.572 x .009m) diameter hose
Full machine width platform with left hand seat
Length: 11’ (3.35 m)
Width: 8’6” (2.59 m) transport
10’ (3.05 m) hopper wings down
Height: 7’ (2.13 m), adjustable to 6’4” (1.93 m)
Total Weight (with screed): 13,000 lbs. (5,897 kg)
All control levers are on the left side
Right side levers include left and right drive control, right auger, right screed extensions
Includes a horn and back-up alarm
Variable volume hydraulic pumps for each drive
A constant volume pump for conveyors and a constant volume pump for all other hydraulic functions
Equipped with hydraulic oil cooler
Hydraulic reservoir: 40 gallons (151 l)
Two 54,000 BTU propane burners on main screed
Each extension has one 36,000 BTU propane burner
One 36,000 BTU burner ignitor
Two 44” (1.118 m) screed extensions hydraulically actuated to a width of 13’ (3.96 m)
To eliminate seams, the heated extensions are mounted flush with the main screed and are adjustable with the angle of attack
Includes replacement .25” (.006m) AR 400 bottom wear plates
Includes manual flights screws positioned on the screed
Depth: 0” to 6” (.152 m)
OPTIONAL: Electrically operated thickness screws with toggle switches connected to a heavy-duty coil cord to allow operation from either side of the paver
Hydrostatically powered, self-cleaning friction drive tracks consisting of two drive tires, one roller and hydraulically adjustable front idler
Drive mechanism consists of two torque hubs for variable speeds
Track size: 14” wide x 5’ long (.356 x 1.524 m) steel
Paving speed: 0 to 210’ per minute (2.4 mph)
Travel speed: 0 to 210’ per minute (2.4 mph)
Two independently automatically or manually operated hydraulic casted segmented augers constructed with .625” (.016 m) AR 4140 HT (heat treated) steel with replaceable flights
Augers are 9” (.229 m) diameter
Unit is wired for sonic auger controls
Independent hydrostatic steering from the left to right side of machine
Training and support manuals
Optional on-site operator training by Dealer
One-year, unlimited hours warranty against any manufacturer defects
Extended warranty available
50+ years manufacturing experience
ISO 9001 Certified
Manufactured in the USA
Variable up to 13’ (3.9 m)
Equipped with vertical height adjustment and tilt
Equipped with a hydraulic vibrator capable of producing 1,800 vibrations per minute
Fuel: 13 gallons (49 l)
Hydraulic: 40 gallons (151 l)
Washdown tank: 7.5 Gallons (28.4 l)
Equipped with a crown/invert adjustment allowing at least 2” (.051m) of crown and 1.5” (.038 m) of valley
Includes a leveling indicator for the operator to know when the screed is level
Two independent hydraulically operated 4’ (1.219 m) wide gates located under the augers and constructed of at least .25” (.006 m) A-36 plate steel
Back-up alarm
Rotating safety beacon
Gauge package (electronic Murphy PU480 display containing oil pressure, voltmeter, fuel)
Glow plugs
Truck hitch
Failsafe brake with anti-creep
Second seat
LED work light package
Sonic auger, sensor and cords
Hose reel, limited to one
Electric screws for grade controls
Wiring only, grade controls (TopCon), includes A/M modules
Sonic grade control, one side (TopCon)
Two 3” (.076 m) diameter rollers with sealed bearings mounted on swivel frame
Kubota water cooled, turbocharged
Tier 4 Final – 65 hp (48kw) @ 2,400 rpm
