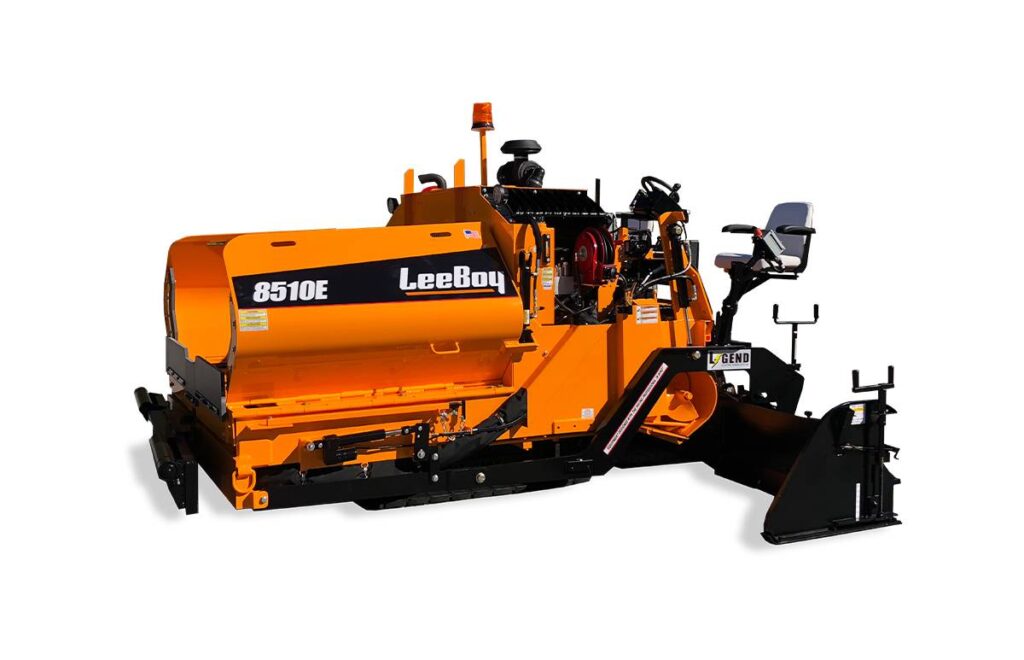

LEEBOY Asphalt Paver 8510E
LeeBoy Commercial Class Pavers
Equipment Features
- Paving Widths Variable Up To 15’
- 74 hp (55.4 kw) @ 2,200 rpm
- Weight (with screed): 17,720 lbs
Equipment Features
Featured Content
- Two 3” diameter rollers with sealed bearings mounted on swivel frame
- Vertically adjustable push rollers, 7” of height adjustment
- Adjustable height push rollers with self-cleaning scrapers
- Kubota turbocharged diesel
- Tier 4 Final – 74 HP (55.4 kW) @ 2,200 rpm
- Legend Propane Screed: Variable up to 15’, weight 2,510 lbs
- Legend Electric Screed: Variable up to 15’, weight 2,600 lbs
- Legend HD Screed: Variable up to 15’, weight 3,075 lbs
- Variable up to 15’
- Electric Legend Plus Screed, 8’ to 15’, weight: 2,600 lbs
- Legend 815 Heavy-Duty Electric Screed, 8’ to 15’, weight: 3,075 lbs
- Screed extension vibration, only available on the Legend 815 Heavy-Duty Screed
- Automatic screed temperature control, only available on the Legend 815 Heavy-Duty Screed
- Heated endgates, available on the Legend 815 Heavy-Duty Screed
- Slope meter
- Horizontal flight screws, available on the Legend 815 Heavy-Duty Screed
- 3:1 flight screw adjusters, available on the Legend 815 Heavy-Duty Screed
- Single point lube system, screed
- Rubber track continuous, in lieu of poly
- Steel track, in lieu of poly
- High deck configuration
- Steering wheel drive controls, in lieu of joysticks
- Manual drive, steering controls, in lieu of joysticks
- Truck hitch
- Truck hitch valving
- Wiring only, grade controls (Topcon), includes A/M modules
- Sonic grade control, one side (Topcon)
- Dual grade control (Topcon)
- Dual grade and slope (Topcon)
- 12” x 4.5” berm extension, left and right, only available on the Legend 815 Heavy-Duty Screed
- Hydrostatically powered, self-cleaning crawler type tracks consisting of drive sprocket, five rollers and hydraulically tensioned front idler
- Tracks are torque hub driven with two-speed motors, hi/low speed is selected by a toggle switch in the control box
- Fail-safe brakes
- Track size: 14” wide x 77” long poly 5 rollers
OR
- Rubber Track Option: 15.75” wide x 77” long rubber 5 rollers
– Paving speed: 0 to 135’ per minute (1.5 mph)
– Travel speed: 0 to 290’ per minute (3.2 mph)
- Dual electronic steering controls
- It can be controlled from a high deck position or lowered to control at the screed
- Electronically controlled pumps operate the forward/reverse motion from dual joysticks
- Fuel: 19 gallons
- Hydraulic: 67 gallons
- Washdown tank: 7 gallons
- Two independent automatic or manual operated hydraulic casted segmented augers constructed with .625” AR 4140 HT (heat-treated) steel with replaceable flights
- Augers are 12” diameter
- Controlled automatically with sonic units (non-contacting)
- Replaceable auger back
- Heavy-duty auger motors
- Includes dual electronic steering
- All functions can be controlled from left side
- Right side levers include screed raise/float, left and right cutoffs, hopper wings, and right screed extension
- Color graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, volt meter, water temp, tachometer, hydraulic oil temp, engine diagnostics
- Back-up alarm
- LED beacon light
- LED work light package
- Vandalism protection covers and removable steering boxes
- Horn
- Spray down system with 2 hose reels
- Citrus tank
- 2 seats
- Poly track (standard track)
- Variable volume hydraulic pumps for each drive
- A constant volume tandem pump for charge pressure and conveyor function and another constant volume pump for generator and auger functions
- Hydraulic reservoir: 67 gallons
- Hydraulic oil: all weather, all temperature
- Hopper size: 7.5 ton
- Hopper height: 23”
- Hopper wings: Heavy-duty .375” with large radius corners
- Length: 13’ 5”
- Width: 8’ 6” transport
10’ hopper wings down - Height: 8’
- Total Weight (with screed): 17,720 lbs
- Electrically operated tow point control with toggle switches allow operation of grade control from the main control box
- Includes manual flights screws positioned on the screed
- Depth: 0” to 6”
Optional Low Deck
- Two seats mounted on the screed
- Can be removed for standing
- Two piece, grip strut, anti-slip walk board platform
- Walk board extensions slide out, left and right
OR
Optional High Deck
- Full machine width platform with both right and left hand seats mounted on tractor
- 4’ 6” above ground
- Includes a lockable cover for the instrument panel
- Two piece, grip strut, anti-slip walk board platform
- Walk board extensions slide out, left and right
- Electric HD pump with two 25’ x .375” diameter hose reels and spray nozzles
- Built in pressure sensor and shutoff
- Citrus tank sight gauge
- Two independent hydraulically operated 4’ wide gates located under the augers and constructed of .375” A-36 plate steel
- Dual 36” feed conveyors
- Each conveyor is independent with automatic cut-offs
- Conveyor is hydraulically raiseable to allow for cleaning and service
- Training and support manuals
- Optional on-site operator training by Dealer
- Two-year, unlimited hours warranty against any manufacturer defects
- Extended warranty available
- 55+ years manufacturing experience
- ISO 9001 Certified
- Sourcewell Contract#052417-VTL
- Manufactured in the USA
