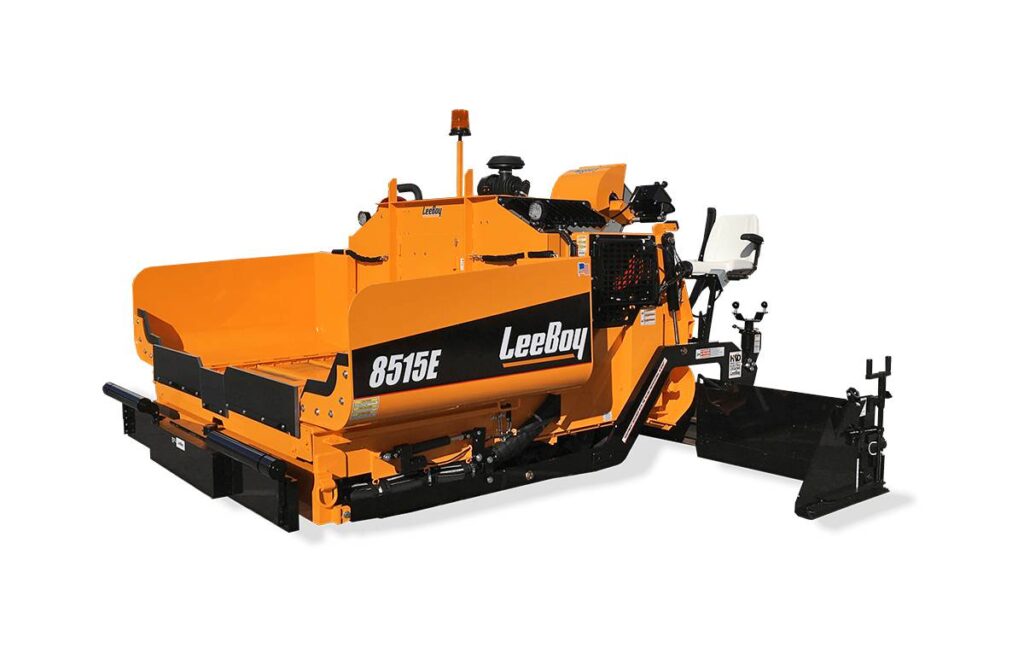

LEEBOY Asphalt Paver 8515E
LeeBoy Commercial Class Pavers
Equipment Features
- Weight (with screed): 17,600 lbs
- 74 hp (55.4 kw) @ 2,200 rpm
- Paving Widths Variable Up To 15’
Equipment Features
Featured Content
- Electronically operated tow point screws with toggle switches allow operation of grade from the high deck position
- Includes manual flights screws positioned on the screed
- Depth: 0 to 6”
- Includes both right and left hand seats with a lockable cover for the instrument panel
- Two piece, grip strut, anti-slip walk board platform
- Walk board extensions slide out, left and right
- Length: 13’ 5”
- Width: 8’ 6” transport
10’ hopper wings down - Height: 8’
- Total Weight (with screed): 17,600 lbs
- Legend Heavy-duty electric heated screed variable up to 15’, 10kw generator, weight: 3,230 lbs
- Remote screed controls
- Automatic screed temperature controls (Legend HD screed only)
- Screed extension vibration (Legend HD screed only)
- Rubber track, continuous
- Steel track – in lieu of poly track
- Single point lube system, screed
- Sloping screed extensions
- Heated endgates
- Slope meter
- Horizontal flight screws
- 3:1 flight screw adjusters
- Hydraulic tow points
- Truck hitch
- Truck hitch valving
- Power crown
- Steering wheel drive controls (in lieu of joysticks)
- Wiring only, grade controls, includes A/M module Sonic grade control both sides
- Sonic grade control, one side (Topcon)
- Dual sonic grade (Topcon)
- Dual sonic grade and slope (Topcon)
- 12” x 4.5” berm extension, left and right (Legend HD screed only)
- Hydrostatically powered, self-cleaning crawler type tracks consisting of drive sprocket, four rollers and hydraulically adjustable front idler
- Drive mechanism is torque hub driven which consist of two speeds and obtained by means of a toggle switch
- Fail-safe brakes
- Track size: 14” wide x 77” long poly 4 rollers
OR
- Rubber Track Option: 15.75” wide x 77” long rubber 5 rollers
- Steel Track Option: 12” wide x 77” long steel 5 rollers
– Paving speed: 0 to 150’ per minute (1.7 mph)
– Travel speed: 0 to 300’ per minute (3.4 mph)
- Two independent hydraulically operated 4′ wide gates located under the augers and constructed of at least .375″ A-36 plate steel
- Electric HD pump with two 25’ x .375” diameter hose reels and spray nozzles
- Built in pressure sensor and shutoff
- Citrus tank sight gauge
- Back-up alarm
- LED beacon light
- LED work light package
- Vandalism protection covers
- Horn
- Spray down system with 2 hose reels
- 2 seats
- Poly track (standard track)
- Dual 36” feeding conveyors
- Each conveyor is independent with automatic cut-offs.
- Conveyor is hydraulically raiseable to allow cleaning and service
- Dual electronic steering controls
- Machine can be controlled from a high deck position or lowered to control at the screed
- Electronically controlled pumps operate the forward/reverse motion from dual joysticks
- Two 12” replaceable segmented augers constructed of .625″ AR 4140 HT (heat treated) steel
- Augers can be controlled automatically by sonic units (non-contacting)
- Replaceable auger back
- Heavy-duty auger motors
- Training and support manuals
- Optional on-site operator training by Dealer
- Two-year, unlimited hours warranty against any manufacturer defects
- Extended warranty available
- 55+ years manufacturing experience
- ISO 9001 Certified
- Sourcewell Contract#052417-VTL
- Manufactured in the USA
- Hopper size: 7.5 ton
- Hopper height: 23”
- Hopper wings: Heavy-duty 3/8” with large radius corners
- Kubota turbocharged diesel
- Tier 4 Final – 74 HP (55.4 kW) @ 2,200 rpm
- Legend Electric Screed: Variable up to 15’, weight 2,810 lbs
- Legend HD Screed: Variable up to 15’, weight 3,230 lbs
- Two 3″ diameter rollers with sealed bearings mounted on a swivel frame
- Vertically adjustable push rollers, 7” of height adjustment
- Adjustable height push rollers with self-cleaning scrapers
- Machine has variable paving widths up to 15’
- High deck/low deck configuration
- Includes dual electronic steer
- Dash panel is movable from left to right and includes augers, screed extension, cut-offs, screed, hopper wings, conveyors, grade controls, steering and lights
- Color graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, voltmeter, water temp, tachometer, hydraulic oil temp, engine diagnostics
- Variable volume hydraulic pumps for each drive
- A constant volume pump for conveyors and cylinder functions and a constant volume pump for generator, 3 pump system
- Hydraulic oil: all weather, all temperature
- Fuel: 19 gallons
- Hydraulic: 67 gallons
- Washdown tank: 7 gallons
