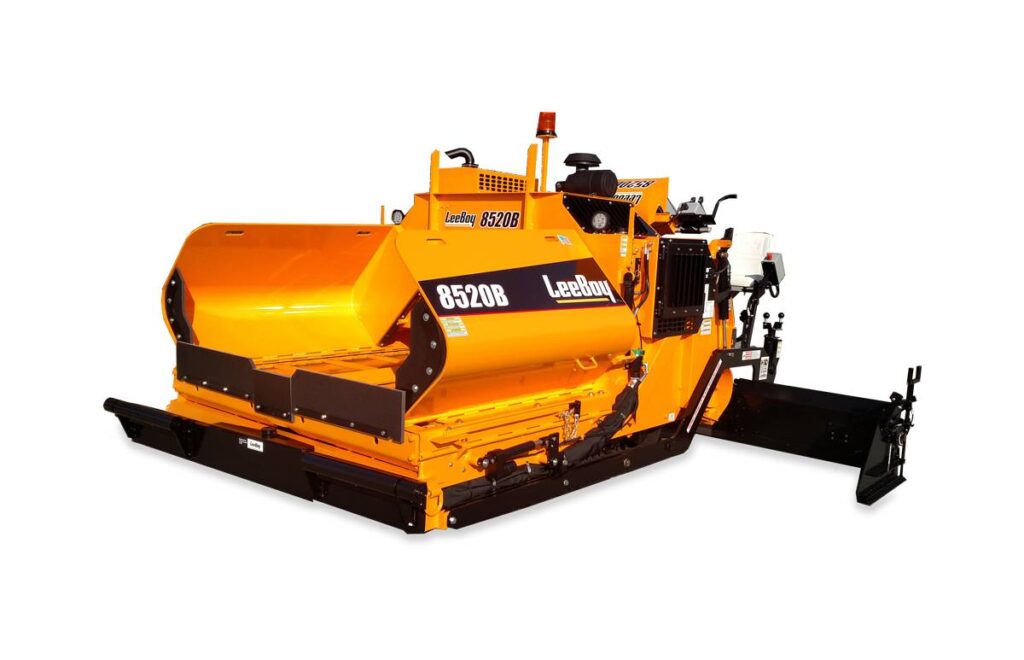

Asphalt Paver 8520B
- Leeboy
- LeeBoy Commercial Class Pavers
Find a location to get your local store information and inventory.
Find Location
Key Features & Specs
- Weight (with screed) 19,760 lbs
- 106 hp (79 kw) @ 2,200 rpm
- Paving Widths Variable Up To 15’

- + Expand All
- - Close All
-
Conveyor
- Two independent, hydraulically driven conveyors with automatic shut-off
- Dual 36" feeding conveyors
- Quick change auger assemblies
- Conveyor is hydraulically raiseable to allow cleaning and service
- System has manual override function and automatic functions are controlled by a paddle and limit switch
-
Optional Equiment
- Remote screed controls
- Screed extension vibration
- Automatic screed temperature control
- Rubber track, continuous
- Sloping screed extensions
- Heated endgates
- Slope meter
- Horizontal flight screws
- 3:1 flight screw adjusters
- Walkboard extensions slide outs, left and right
- Hydraulic tow points
- Truck hitch
- Truck hitch valving, excludes truck hitch
- Power crown
- Single point lube system, screed
- Steering wheel drive controls, in lieu of joysticks
- Wiring only, grade controls (Topcon), includes A/M modules
- Sonic grade control, one side (Topcon)
- Dual grade control (Topcon)
- Dual grade and slope (Topcon)
- 12” x 4.5” berm extension, left and right
- Remote screed controls
-
Hopper
- Hopper size: 9 ton
- Hopper height: 31.75”
- Hopper wings: Heavy-duty .5” with large radius corners
- Hopper size: 9 ton
-
Paving Widths
- Variable paving widths up to 15’
-
Screed
- Legend HD Screed: Variable up to 15’, weight 3,260 lbs
- Legend HD Screed: Variable up to 15’, weight 3,260 lbs
-
Operator’s Controls
- High deck/low deck configuration
- Includes dual electronic steer
- All control switches are located in one box that can be slid to each side. Dash panel includes augers, screed extension, cut-offs, screed, hopper wings, conveyors, grade controls, steering and lights
- Color graphic control screen with digital readouts. Review and monitor system vitals including: oil pressure, hour meter, fuel gauge, voltmeter, water temp, tachometer, hydraulic oil temp, engine diagnostics
- High deck/low deck configuration
-
Material Augers
- Two independent, hydraulically driven, segmented augers. Operated automatically or manually
- Augers are 12” diameter and are cast from .625” SAE 4140 heat treated steel
- System has manual override function and automatic functions are controlled by sonic sensors (non-contracting)
- Single point lube system
- Two independent, hydraulically driven, segmented augers. Operated automatically or manually
-
Hydraulic System
- Variable volume hydraulic pumps for each drive
- A constant volume pump for conveyors and a constant volume pump for all other hydraulic functions
- Hydraulic reservoir: 25 gallons (94.6 l)
- Hydraulic oil: all weather, all temperature
- Variable volume hydraulic pumps for each drive
-
Capacities
- Fuel: 32 gallons
- Hydraulic: 25 gallons
- Washdown tank: 7 gallons
- DEF tank: 5 gallons
- Fuel: 32 gallons
-
Operator’s Platform
- Includes both right and left hand seats 4' 6" above ground with a lockable cover for the instrument panel
- Two piece, grip strut, anti-slip walk board platform
- Walk board extensions slide out, left and right
- Includes both right and left hand seats 4' 6" above ground with a lockable cover for the instrument panel
-
Additional Standard Equipment
- Back-up alarm
- LED beacon light
- LED work light package
- Vandalism protection covers
- Horn
- 2 seats
- Back-up alarm
-
Push Rollers
- Two 3" diameter rollers with sealed bearings mounted on a swivel frame
- Vertically adjustable push rollers, 7” of height adjustment
- Adjustable height push rollers with self-cleaning scrapers
- Two 3" diameter rollers with sealed bearings mounted on a swivel frame
-
Paving Depths
- Electronically operated tow point actuators with toggle switches allow operation of grade from the high deck position
- Includes manual flights screws positioned on the screed
- Depth: 0 to 6”
- Electronically operated tow point actuators with toggle switches allow operation of grade from the high deck position
-
Track Drive System
- Hydrostatically powered, self-cleaning crawler type tracks consisting of drive sprocket, seven rollers and hydraulically adjustable front idler
- Drive mechanism is torque hub driven which consist of two speeds and obtained by means of a toggle switch
- Fail safe brakes
- Track size: 14” wide x 87” long poly 7 rollers OR Rubber Track Option: 15.75” wide x 87” long rubber 7 rollers
- Paving speed: 0 to 150’ per minute (1.7 mph)
- Travel speed: 0 to 300’ per minute (3.4 mph)
- Hydrostatically powered, self-cleaning crawler type tracks consisting of drive sprocket, seven rollers and hydraulically adjustable front idler
-
Engine
- Kubota turbocharged diesel
- Tier 4 Final - 106 HP (79 kW) @ 2,200 rpm
- Kubota turbocharged diesel
-
Steering
- Dual electronic steering controls
- Machine can be controlled from a high deck position or lowered to control at the screed
- Electronically controlled pumps operate the forward/reverse motion from dual joysticks
- Dual electronic steering controls
-
Dimensions
- Length: 14’ 5”
- Width: 8’ 6” transport
10’ hopper wings down - Height: 8’ 2”
- Total Weight (with screed): 19,760 lbs
- Length: 14’ 5”
-
Under Auger Material Cutoff
- Two independent hydraulically operated 4' wide gates located under the augers and constructed of at least .25" A-36 plate steel
-
Training, Support and Company
- Training and support manuals
- Optional on-site operator training by Dealer
- Two-year, unlimited hours warranty against any manufacturer defects
- Extended warranty available
- 55+ years manufacturing experience
- ISO 9001 Certified
- Sourcewell Contract#052417-VTL
- Manufactured in the USA
-
Washdown System
- Electric HD pump with two 25’ x .375” diameter hose reels and spray nozzles
- Built in pressure sensor and shutoff
- Citrus tank sight gauge
- Electric HD pump with two 25’ x .375” diameter hose reels and spray nozzles
