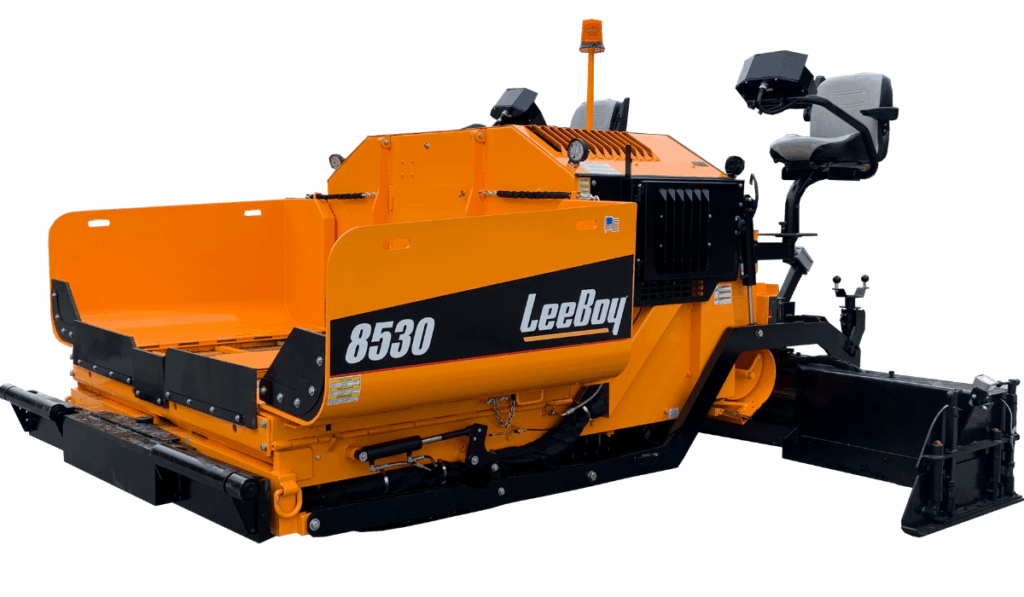

Asphalt Paver 8530
- Leeboy
- LeeBoy Commercial Class Pavers
Find a location to get your local store information and inventory.
Find Location
Key Features & Specs
- 125 hp (93 kw)
- Paving Widths Variable Up To 15’ 6"
- Weight (with screed) 22,520 lbs

- + Expand All
- - Close All
-
Screed
- Legend HD PRO Screed: Variable up to 15’6”, weight 4,150 lbs
- Legend HD PRO Screed: Variable up to 15’6”, weight 4,150 lbs
-
Conveyor
- Two independent, hydraulically driven conveyors with automatic shut-off
- Dual 36” feeding conveyors
- Conveyors are reversible
- Front heavy-duty conveyor chain adjustments, does not require lifting of conveyor floor
- Quad bearings, front and rear conveyor
- Conveyor is hydraulically raiseable to allow cleaning and service
- System has manual override function and automatic functions are controlled by a paddle and limit switch
- 3,000 hour Wide-Conveyor Floor Assembly Warranty
- Two independent, hydraulically driven conveyors with automatic shut-off
-
Optional Equipment
- Additional control post and wire harness, left side
- Screed extension vibration
- Rubber track, continuous
- Heated endgates
- Slope meter
- 3:1 flight screw adjusters
- Horizontal flight screws
- Truck hitch
- Truck hitch valving, excludes truck hitch
- Power crown
- Hydraulically extendable oscillating push rollers
- Central point lube system, screed
- Steering knob drive controls, in lieu of joysticks
- Wiring only, grade controls (Topcon)
- Sonic grade control, one side (Topcon)
- Dual grade control (Topcon)
- Dual grade and slope (Topcon)
- 12” x 6” berm extension, left and right
- LED blade light system, DC powered, 2 individually mounted LED blades
- Umbrella mounts (x2)
- Additional control post and wire harness, left side
-
Operator’s Controls
- High deck/low deck configuration
- Includes dual electronic steer
- Dual, independent adjustable control stations interchangeable in the field
- Dash panel includes augers, screed extension, cut-offs, screed, hopper wings, conveyors, grade controls, steering and lights
- User-friendly, icon-based CAN Bus controls
- Backlit keypad with LED indicator lights
- Colored LED, sunlight viewable control screen with digital readouts. Review and monitor system vitals including: RPM, paving speeds, system pressures, screed temperature and generator usage
- High deck/low deck configuration
-
Hydraulic System
- Variable volume hydraulic pumps for each drive
- Independent constant volume pumps for augers, conveyors, cylinders, and charge
- Hydraulic reservoir: 25 gallons
- Hydraulic oil: all weather, all temperature
- Dual 77,000 BTU oil coolers
- Variable volume hydraulic pumps for each drive
-
Track Drive System
- Hydrostatically powered, self-cleaning crawler type tracks consisting of drive sprocket, seven rollers and hydraulically adjustable front idler
- Drive mechanism is torque hub driven which consist of two speeds and obtained by means of a keypad button
- Fail safe brakes
- Track size: 14” wide x 87” long poly 7 rollers OR Rubber Track Option: 15.75” wide x 87” long rubber 7 rollers
- Paving speed: 0 to 150’ per minute (1.7 mph, 2.7 kph)
- Travel speed: 0 to 300’ per minute (3.4 mph, 5.4 kph)
- Hydrostatically powered, self-cleaning crawler type tracks consisting of drive sprocket, seven rollers and hydraulically adjustable front idler
-
Under Auger Material Cutoff
- Two independent hydraulically operated 4' wide gates located under the augers and constructed of .375" A-36 plate steel
- Can be configured to automatically close in reverse
- Operational from the main control panel or screed controls
- Two independent hydraulically operated 4' wide gates located under the augers and constructed of .375" A-36 plate steel
-
Dimensions
- Length: 15’
- Width: 8’ 6” transport
10’ hopper wings down - Height: 6’ 8” low deck
7’ 9” high deck - Total Weight (with screed): 22,520 lbs
- Length: 15’
-
Push Rollers
- Two 3" diameter rollers with sealed bearings mounted on a swivel frame
- Vertically adjustable push rollers, 7” of height adjustment
- Built in material scraper on each push roller
- Two 3" diameter rollers with sealed bearings mounted on a swivel frame
-
Capacities
- Fuel: 32 gallons
- Hydraulic: 25 gallons
- Washdown tank: 7 gallons
- DEF tank: 5 gallons
- Fuel: 32 gallons
-
Washdown System
- Electric HD pump with two 25’ x .375” diameter hose reels and spray nozzles
- Built in pressure sensor and shutoff
- Citrus tank sight gauge
- Electric HD pump with two 25’ x .375” diameter hose reels and spray nozzles
-
Steering
- Dual electronic steering controls
- Machine can be controlled from a high deck position or lowered to control at the screed
- Electronically controlled pumps operate the forward/reverse motion from dual joysticks
- Dual electronic steering controls
-
Engine
- Kubota turbocharged diesel
- Tier 4 Final - 125 HP (93.2 kW)
- Remote mounted DOC + DPF + SCR
- MURR I/O distributor blocks with LED lighting
- Kubota turbocharged diesel
-
Training, Support and Company
- Training and support manuals
- Optional on-site operator training by Dealer
- Two-year, unlimited hours warranty against any manufacturer defects
- Extended warranty available
- 55+ years manufacturing experience
- ISO 9001 Certified
- Sourcewell Contract#052417-VTL
- Manufactured in the USA
-
Hopper
- Hopper size: 9 ton
- Hopper height: 31.75”
- Hopper wings: Heavy-duty .5” with large radius corners
- Rear hopper wing wipers
- Hopper size: 9 ton
-
Paving Widths
- Variable paving widths up to 15’ 6"
-
Operator’s Platform
- Includes both right and left hand seats 6' 1" (1.85 m) above ground with a lockable cover for the instrument panel
- Various pivoting and adjustable swing out seat positions
- Two piece, grip strut, anti-slip walk board platform
- Walk board extensions slide out, left and right
- Walk boards fold up and lock for transport and working requirements
- Includes both right and left hand seats 6' 1" (1.85 m) above ground with a lockable cover for the instrument panel
-
Additional Standard Equipment
- Gauge package (oil pressure, hour meter, fuel gauge, voltmeter, water temp, tachometer, hydraulic oil temp, engine diagnostics)
- Actuator-driven hood lift
- Ground-level service access doors
- Integrated dual tool boxes on screed
- Back-up alarm
- Quick-folding LED beacon light
- Sliding LED work light package
- Vandalism protection covers
- Horn
- 2 seats
- USB port
- Magnetic cup holders
- Gauge package (oil pressure, hour meter, fuel gauge, voltmeter, water temp, tachometer, hydraulic oil temp, engine diagnostics)
-
Paving Depths
- Electronically operated tow point cylinders
- Includes manual flights screws positioned on the screed
- Depth: 0 to 8"
- Electronically operated tow point cylinders
-
Material Augers
- Two independent, hydraulically driven, segmented augers. Operated automatically or manually
- Augers are reversible
- Variable speed from 0-173 rpm
- Quick change auger assemblies
- Augers are 12” diameter, 12” pitch and are cast from .75” HRC 55-60
- System has manual override function and automatic functions are controlled by sonic sensors (non-contracting)
- Single point lube system
- Two independent, hydraulically driven, segmented augers. Operated automatically or manually
