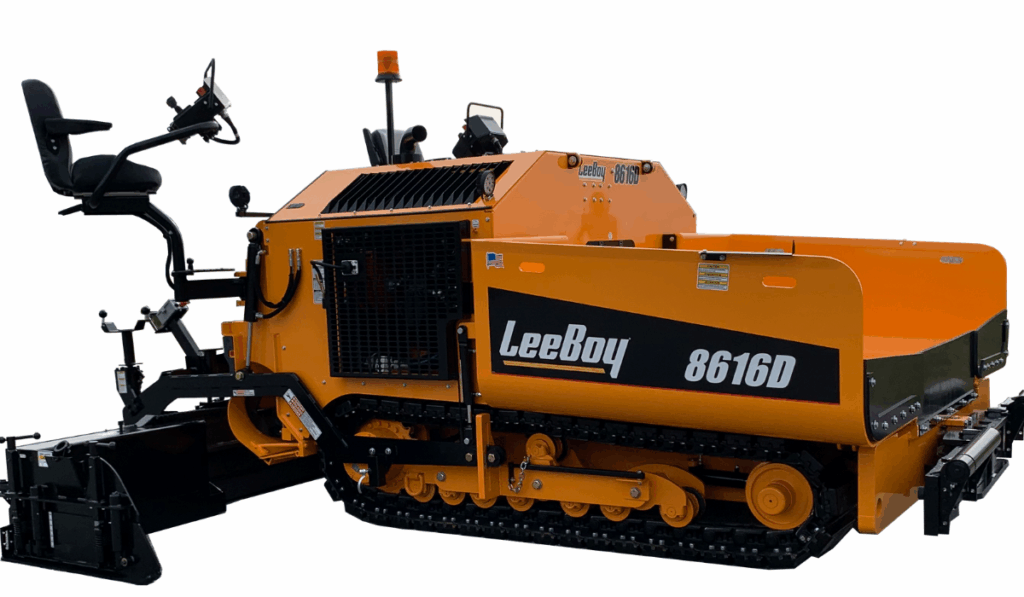

LEEBOY Asphalt Paver 8616D
LeeBoy Commercial Class Pavers
Equipment Features
- 127 hp (95 kw) @ 2,300 rpm
- Weight (with screed): 23,450 lbs
- Paving Widths Variable Up To 15’ 6"
Equipment Features
Featured Content
- Two 46” x 9” hydraulically operated screed extensions
- The heated extensions are adjustable and mounted flush with the main screed
- Energy chain, each screed extension
- Includes replaceable .375” by 9” Hardox® 450 bottom wear plate
- Walkway width: 12”
- Hydraulic sloping screed extensions standard
- Adjustable strike offs
- Machine has variable paving widths up to 15’ 6”
- Two independent, hydraulically driven conveyors with automatic shut-off
- Dual 20.5” feeding conveyors
- Conveyors are reversible
- Heavy-duty conveyor chain adjustments
- Quad bearings, front and rear conveyor
- System has manual override function and automatic functions are controlled by a paddle and limit switch
- Equipped with two electric vibrators producing 70lbs of force each
- 4,100 rpm, each vibrator
- Includes both right and left hand seats 6’ 1″ above ground with a lockable cover for the instrument panel
- Various pivoting and adjustable swing out seat positions
- Two piece, grip strut, anti-slip walk board platform
- Walk board extensions slide out, left and right
- Walk boards fold up and lock for transport and working requirements
- Equipped with a crown/invert adjustment allowing at least 2.5″ of crown and 1.5″ of valley
- Includes a levelling indicator for the operator to know when the screed is level
- Two independent, hydraulically driven, segmented augers. Operated automatically or manually
- Augers are reversible
- Variable speed from 0-168 rpm
- Quick change auger assemblies
- Augers are 12” diameter, 12” pitch and are cast from .75” HRC 55-60
- System has manual override function and automatic functions are controlled by sonic sensors (non-contracting)
- Single point lube system
- Legend HD PRO Screed: Variable up to 15’ 6”, weight 4,150 lbs
- Legend HD PRO Screed, electric heat
- 14.4 kw generator
- Electric timer and automatic temperature control (ATC)
- Automatic RPM control system
- Environmentally safe, sealed S-curve elements in main screed and sealed, blade-style elements in extensions
- Spring-loaded end gates
- Equipped with vertical height adjustments and tilt with replaceable wear shoes
- Fuel: 37 gallons
- Hydraulic: 31 gallons
- Washdown tank: 7 gallons
- DEF tank: 5 gallons
- Electronically operated tow point cylinders
- Includes manual flights screws positioned on the screed
- Depth: 0 to 8”
- Kubota turbocharged diesel
- Tier 4 Final – 127 HP (95 kW)
- Remote mounted DOC + DPF + SCR
- MURR I/O distributor blocks with LED lighting
- Length: 16’ 4’
- Width: 8’ 6” transport
10’ hopper wings down - Height: 6’ 8” low deck
7’ 10” high deck - Total Weight (with screed): 23,450 lbs
- Hopper size: 9 ton
- Hopper height: 33”
- Hopper wings: heavy-duty .5” with large radius corners
- Rear hopper wing wipers
- Dual electronic steering controls
- Machine can be controlled from a high deck position or lowered to control at the screed
- Electronically controlled pumps operate the forward/reverse motion from dual joysticks
- High deck/low deck configuration
- Includes dual electronic steer
- Dual, independent adjustable control stations interchangeable in the field
- Dash panel includes augers, screed extension, cut-offs, screed, hopper wings, conveyors, grade controls, steering and lights
- User-friendly, icon-based CAN Bus controls
- Backlit keypad with LED indicator lights
- Colored LED, sunlight viewable control screen with digital readouts. Review and monitor system vitals including: RPM, paving speeds, system pressures, screed temperature and generator usage
- Additional control post and wire harness for the left side
- Smooth ride HD poly pad track
- Screed extension vibration
- Heated endgates
- Slope meter
- Horizontal flight screws
- 3:1 flight screw adjusters
- Truck hitch
- Truck hitch valving, excludes truck hitch
- Hydraulically extendable oscillating push rollers (not available with truck hitch)
- Central point lube system, screed
- Steering knob drive controls (in lieu of joysticks)
- Power crown
- Wiring only, grade controls (Topcon)
- Sonic grade control, one side (Topcon)
- Dual grade control (Topcon)
- Dual grade and slope (Topcon)
- 12” x 6” Berm extension, left and right
- LED blade light system, DC powered, 2 individually mounted LED blades
- Umbrella mount (x2)
- Two 3″ diameter rollers with sealed bearings mounted on a swivel frame
- Vertically adjustable push rollers, 7” of height adjustment
- Adjustable height push rollers with self-cleaning scrapers
- Power crown
- Gauge package (oil pressure, hour meter, fuel gauge, volt meter, water temp, tachometer, hydraulic oil temp, engine diagnostics)
- Actuator-driven hood lift
- Ground-level service access doors
- Integrated dual tool boxes on screed
- Back-up alarm
- Quick-folding LED beacon light
- Sliding LED work light package
- Vandalism protection covers
- Horn
- 2 seats
- Magnetic cup holders
- Variable volume hydraulic pumps for each drive
- Load sense pump for augers, conveyors and cylinder functions
- Hydraulic oil: all weather, all temperature
- Single 154,000 BTU oil coolers
- Hydrostatically powered, self-cleaning crawler type tracks consisting of drive sprocket, eight rollers (five oscillating) and hydraulically adjustable front idler
- Drive mechanism is torque hub driven which consist of two speeds and obtained by means of a keypad button
- Fail safe brakes
- Track size: 14″ wide x 108″ poly 8 rollers
OR
- Track size: 14″ wide x 108″ long
– Paving speed: 0 to 125’ per minute (1.4 mph)
– Travel speed: 0 to 350’ per minute (3.9 mph)
- Electric HD pump with two 25’ x .375” diameter hose reels and spray nozzles
- Built in pressure sensor and shutoff
- Citrus tank sight gauge
- Training and support manuals
- Optional on-site operator training by Dealer
- Two-year, unlimited hours warranty against any manufacturer defects
- Extended warranty available
- 55+ years manufacturing experience
- ISO 9001 Certified
- Sourcewell Contract#052417-VTL
- Manufactured in the USA
