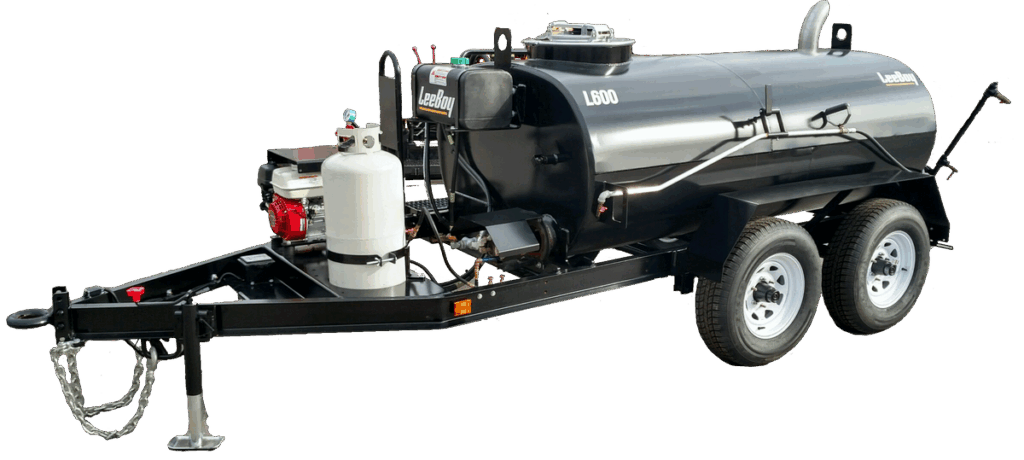

LEEBOY L600 Tack Distributor
Paving
Equipment Features
- Width: 6’ 4” (1.94 m)
- Height: 5’ 9” (1.76 m)
- Tank: 600 gallons (2,271 l)
Equipment Features
Featured List
- Length: 15' 8” (4.78 m)
Featured Content
- 6’ (1.829 m) wand with cold handles
- On/off valve
- Removable spray tip
- 20″ (508 mm) diameter
- 10″ (254 mm) diameter fill hose
- 3 psi (2.1 bar) pressure relief
- 4.8 HP (3.6 kw) Honda
- 1 gallon (3.79 l) fuel tank
- Specially designed 7 GPM (26.5 LPM) pump
- Length: 97.875” (2.48 m)
- Width: 54.125” (1.37 m)
- Height: 36.25” (.92 m)
- 4” (102 mm)
- Engines
– Honda gas – 4.8 hp (3.6 kW) electric start
– Hatz diesel – 7.2 hp (5.4 kW) pull start or electric start
– Fuel: 1.32 gallons (5.0 l)
- Heat Systems
– Diesel Burner, One 300,000 BTU diesel burner (only available with electric start engines)
7 gallon (26.5 l) fuel tank
Auto ignition diesel burner with outfire– Overnight Heat
120 volt/1500 watt
Immersion element
- Spray Bar, Width: 8′ (2.44 m), Controls: In-truck controls (requires 8′ spray bar option)
- Insulated Tank
- 2″ ball hitch
- Waste bucket mount
- 6,000 lb (2,722 kg) axles with a pintle eye
- 1,500 lb (680.3 kg) jackleg
- Wired for towing
- Tires: ST 225/75D15
- Shipping weight: 3,050 lbs (1,370 kg)
- Loaded weight: 7,270 lbs (3,298 kg)
- 50 – 300” F (10 – 149” C)
- Adjustable angle face plate
- 7 gallons (26.5 l) tank with suck back valve
- 1” (25 mm)
- .5” x 40’ (13 mm x 12.192 m) heavy-duty recoil hose reel
- Training and support manuals
- Optional on-site operator training by Dealer
- Two-year, unlimited hours warranty against any manufacturer defects
- Extended warranty available
- 50+ years manufacturing experience
- ISO 9001 Certified
- Manufactured in the USA
- One 300,000 BTU propane burner
- One starter burner
- 40 lbs (18.1 kg) propane fuel tank
