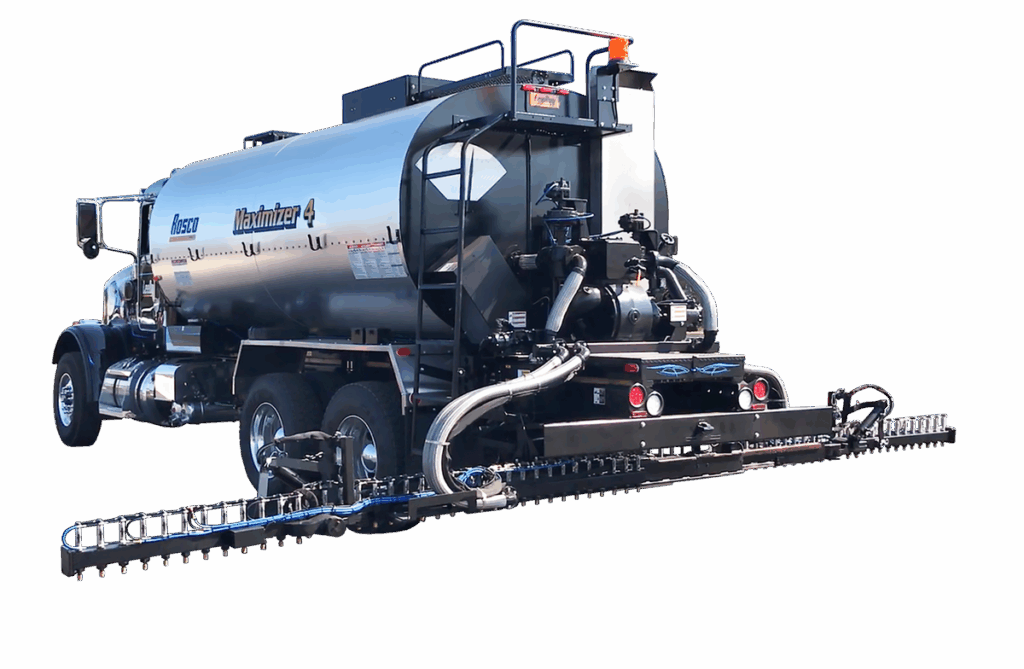

LEEBOY Maximizer 4B Distributor
Paving
Equipment Features
- Length: Depends on type of truck purchased and options selected
- Height: Depends on type of truck purchased and options selected
- Width: Depends on type of truck purchased and options selected
Equipment Features
Featured List
- Weight: Depends on type of truck purchased and options selected
Featured Content
- Hydrostatic, front live power driven by engine crankshaft
- The hydrostatic pump is an infinitely variable, displacement axial piston pump
- Hydraulic reservoir: 20 gallons (76 l) with thermometer and sight gauge and level indicator
- Weather tight and safety relieving cover with basket-type strainer
- Inside splash guards
- Steel measuring stick
- Tank vent and overflow
- Manhole opening: 22” (.559 m) in diameter
- Overflow: 3” (76 mm) in diameter
- Viking, positive displacement pump
- Rotary gear type with built-in relief valve for safety
- Asphalt pump driven by low-speed high torque fixed displacement hydraulic motor and connected by a flexible coupling
- Pump: 560 gallons per minute (2,120 l per minute)
- Hand spray wand with a 25’ (7.6 m) rubber hose
- Front and rear dial contents gauge
- 4” (102 mm) dial thermometer and internal pencil thermometers
- ICC clearance lights and reflectors
- Rear bumper to protect spraybar
- Sample valve
- Back-up alarm
- Mud flaps
- Ladder and platform assembly
- Grease gun
- Heat exchanger in lower flue tube
- Jacketing on emulsion tank sump
- Jacketed Viking asphalt pump
- Internal spraybar heating
- High-temperature insulated flexible metal hoses and hard line
- At the rear of tank
- Cleanout plug and suction line from the pump includes tank cutoff valve
- Sump size: 4” (102 mm) in diameter
- Two diesel fired burners with electric ignition and heat limit controls
- Two, u-type, high temperature flue pipes running the length of the tank
- Single exhaust stack is constructed of stainless steel and includes a rain cover
- Heating flue size: 8” (203 mm) in diameter throughout
- Burners: 560,000 BTU per burner, per hour capacity
- Enviro-flush system allows solvent circulation through asphalt pump, valves, distributing lines and spraybar
- Cleanout material returned to enviro-flush tank for later use or disposal
- Flush tank: 25 gallons (95 l)
- Enviro-Flush tank: 25 gallons (95 l)
- High temperature, flexible metal hoses
- Steel pipe with ball and socket joint is not acceptable
- Meets all applicable Federal DOT tank regulations
- ASTM A569 grade mild steel with minimum 10 gauge (3.4 mm) shell and 7 gauge (4.5 mm) flat heads
- Flanged reinforced and welded to shell inside and outside of tank
- Seams are all electrically welded
- Thermometers: One 4” (102 mm) dial thermometer
One internal pencil thermometer
- Plus+1 CAN Bus control and onboard diagnostic system
- DP 700 [7” (177.8 mm), 800 x 480 pixel) high-resolution, color graphic display
- Controller for automatic application rate control
- Automatic valves for cab control of distributor functions
- Exclusive enviro-flush system with hydraulic pump speed control
- Settings for flow, speed calibration, spraybar width and spray bar on/off control by section
- Automatic valves for cab control of distributor functions
- Capable of storing up to 12 preset combinations of application rates and flow calibrations for instant retrieval
- Selectable readouts include FPM, GPM, total feet sprayed, total gallons sprayed, total square yards sprayed, flow and speed calibration, application rate, tank temperature, hour meter and spraybar width (English and metric units can be selected for the rate controls)
- Controller provides accurate applications regardless of changes in speed or spraybar width during operations
- Includes GPS ground speed sensor
- Convenient external controls and speed display mounted on rear fender
- 2” (51 mm) rock wool with spacers to prevent compression
- Clips to secure position of insulation and protected by an aluminum jacket
- Installation for a customer supplied truck chassis
- PTO transmission (required if not using front live power)
- LPG burner in lieu of diesel burner [includes LP tank]
- Diesel burners with electronic ignition, 100% outfire protection and heat control
- Diesel burners with outfire protection and heat limit control
- Oil heat system
- Washdown system with pump and hose, self-winding hose reel
- Loading hose, 3” x 15’ (76 mm x 4.572 m) flexible steel with quick couplers
- Loading hose, 3” x 15’ (76 mm x 4.572 m) rubber with quick couplers
- Hose trough for loading hose
- LED working lights, qty 4
- Beacon light
- Electronically actuated emulsion tank hand rails
- Frame mounted toolbox
- Extra fender mounted toolbox
- Wet storage box
- Full width mud flap
- Hot oil option
- Electric overnight heat, 240V single phase
- Radar horn in lieu of GPS
- Nozzle selection
- 10 gauge (3.4 mm) steel with staggered openings to provide adequate tank strength and proper surge control
- 2,050 gallons (7,760 l) to 4,250 gallons (16,088 l)*
*Gallons listed are maximum tank capacities. Recommended tank capacities may be limited by 1.) Thermal expansion of materials. 2.) Density of materials. 3.) Truck/axle load ratings. For more detail, please contact your local Rosco Sales Representative or Dealer.
- Nozzles are brass, slotted and valves are non-clogging
- Each has a quick-disconnect feature allowing the operator to change spray widths in 4” (102 mm) increments across the entire bar without the use of tools or blank nozzles
- Spraybar: 24’ (7.3 m) full circulating, extendible spraybar
Two 8’ (2.43 m) independently controlled extending sections
Each spray nozzle automatically turns on when extended and off when retracted
Two 4’ (1.22 m) fully circulating hydraulically folding wings
Spray nozzles operated in 1’ (25.4 mm) increments
All functions operated by the Plus+1 controller in the cab - Nozzles: Spaced on 4” (.102 m) centers on spraybar
- Training and support manuals
- Optional on-site operator training by Dealer
- Two-year, unlimited hours warranty against any manufacturer defects
- Extended warranty available
- 50+ years manufacturing experience
- ISO 9001 Certified
- Manufactured in the USA
