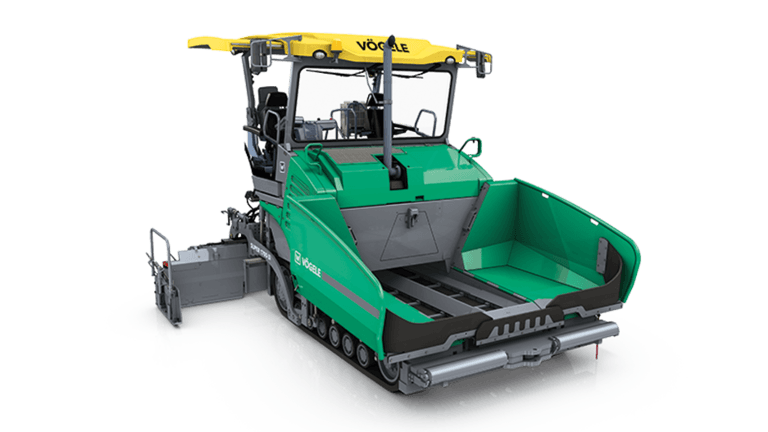

VOGELE SUPER 1700-3i
Paving
The innovative tracked paver in the 8-foot class
The SUPER 1700-3i is a cutting-edge tracked paver in the 8-foot class. Conceived especially for the North American and Australian markets, the tracked machine handles a wide variety of paving jobs. Thanks to its compact design, it is ideal for large commercial applications. The machine is equipped with ErgoPlus 3, the modern intuitive system for paver operation providing maximum operating comfort and all-round visibility.
| DRIVE - Version | liquid-cooled 4-cylinder diesel engine |
|---|---|
| UNDERCARRIAGE - Track tension adjuster | hydraulic |
| UNDERCARRIAGE - Lubrication of track rollers | lifetime |
| DRIVE - Exhaust emissions after-treatment | DOC, SCR |
| DRIVE - Type | QSB 4.5 - C173 |
| UNDERCARRIAGE - Traction drive crawler tracks | electronically controlled separate hydraulic drive provided for each crawler track |
| SCREED - Screed heating | electric, thermostat-controlled |
| DRIVE - Exhaust emissions standard | European exhaust emissions standard 4, US standard EPA Tier 4f |
| SCREED - Screed | Type Basic width Maximum width Compacting systems VF 500 8 ft 19 ft 6 in V |
| UNDERCARRIAGE - Travel speed (up to) | 6.8 mph |
| DRIVE - Manufacturer | Cummins |
| DRIVE - Nominal output | 173 hp / 2,000 RPM |
| UNDERCARRIAGE - Version | provided with rubber pads |
| UNDERCARRIAGE - Paving speed (up to) | 250 fpm |
| DRIVE - ECO mode output | 160 hp / 1,700 rpm |
| SCREED - Power supply | three-phase AC generator |
| UNDERCARRIAGE - Ground contact | 2,594 mm x 355 mm |
| DIMENSIONS AND WEIGHTS - Maximum laydown rate | 770 US t/hr |
| CONVEYORS AND AUGERS - Standard height | hydraulically adjustable by 6 in |
| CONVEYORS AND AUGERS - Version | with replaceable feeder bars, direction of conveyor temporarily reversible |
| CONVEYORS AND AUGERS - Drive | separate hydraulic drives, proportional control |
| CONVEYORS AND AUGERS - Height | infinitely variable |
| CONVEYORS AND AUGERS - Conveyors | 2 |
| MATERIAL HOPPER - Positions | can be adjusted in a forward direction by 3 or 6 in |
| MATERIAL HOPPER - Standard | oscillating |
| CONVEYORS AND AUGERS - Version | with replaceable auger blades, reversible direction of rotation |
| DIMENSIONS AND WEIGHTS - Length | Screed Total length VF 500 18 ft 4 in |
| CONVEYORS AND AUGERS - Lubrication | centralized lubrication system, electrically-driven grease pump |
| DIMENSIONS AND WEIGHTS - Operating weight | Screed Total weight VF 500 38,030 lbs |
| CONVEYORS AND AUGERS - Speed | 120 rpm |
Featured Content
VÖGELE Niveltronic Plus Automated Grade and Slope Control is a unique grade and slope control system providing the basis for efficient paving true to line and level on any kind of base. Niveltronic is an in-house development by VÖGELE and is based on many years’ experience in grade and slope control technology. In terms of ease of operation, quality and reliability, Niveltronic Plus represents the perfect solution for all grade and slope control tasks.
The philosophy behind the machine concept of the Premium Line road pavers is “Lower consumption – lower emissions – lower costs”. The VÖGELE EcoPlus low-emissions package combines a number of individual measures to reduce the fuel consumption and noise levels to a significant extent.
Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. That is why the ErgoPlus 3 operating concept focuses on the operator. With VÖGELE pavers, the user consequently retains full control over the machine and construction project.
The innovative tracked paver in the 8-foot class
The SUPER 1700-3i is a cutting-edge tracked paver in the 8-foot class. Conceived especially for the North American and Australian markets, the tracked machine handles a wide variety of paving jobs. Thanks to its compact design, it is ideal for large commercial applications. The machine is equipped with ErgoPlus 3, the modern intuitive system for paver operation providing maximum operating comfort and all-round visibility.
