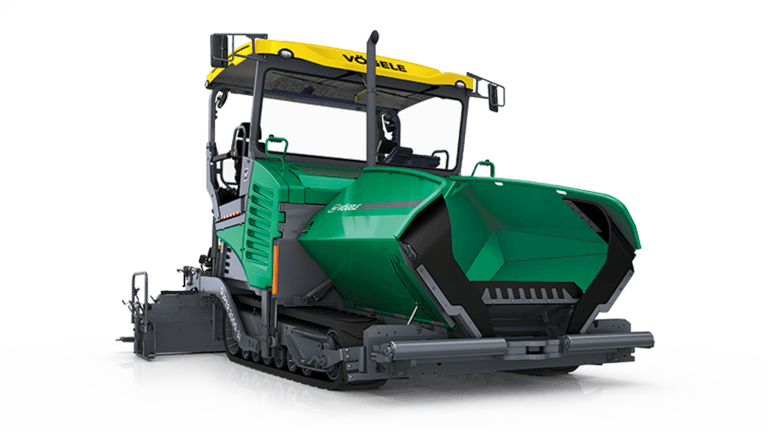

VOGELE SUPER 2000-3i
Highway Class
The versatile Highway Class tracked paver – A true SUPER paver
With the SUPER 2000-3i VÖGELE has now developed an entirely new paver for the North American market. The tracked paver is designed primarily for use in highway construction and large-scale commercial applications, which are all about power and productivity. With a powerful, 6-cylinder engine and high-output hydraulic drives, the paver is fully equipped for these jobs.
| UNDERCARRIAGE - Track tension adjuster | hydraulic |
|---|---|
| UNDERCARRIAGE - Lubrication of track rollers | lifetime |
| UNDERCARRIAGE - Version | provided with rubber pads |
| SCREED - Screed heating | electric, thermostat-controlled |
| SCREED - Power supply | three-phase AC generator |
| UNDERCARRIAGE - Travel speed (up to) | 7.46 mph |
| DRIVE - Exhaust emissions after-treatment | DOC, SCR |
| DRIVE - Nominal output | 250 hp / 2,000 RPM |
| DRIVE - ECO mode output | 224 hp / 1,700 rpm |
| DRIVE - Manufacturer | Cummins |
| DRIVE - Type | QSB 6.7 - C250 |
| SCREED - Screed | Type Basic width Maximum width Compacting systems VF 600 10 ft 25 ft 5 in V VR 600 10 ft 28 ft 3 in V AB 600 9 ft 10 in 27 ft 11 in TV |
| DRIVE - Exhaust emissions standard | European exhaust emissions standard 4, US standard EPA Tier 4f |
| DRIVE - Version | liquid-cooled 6-cylinder diesel engine |
| UNDERCARRIAGE - Ground contact | 2,994 mm x 457 mm |
| UNDERCARRIAGE - Paving speed (up to) | 250 fpm |
| UNDERCARRIAGE - Traction drive crawler tracks | electronically controlled separate hydraulic drive provided for each crawler track |
| MATERIAL HOPPER - Standard | oscillating |
| CONVEYORS AND AUGERS - Height | infinitely variable |
| CONVEYORS AND AUGERS - Lubrication | centralized lubrication system, electrically-driven grease pump |
| CONVEYORS AND AUGERS - Speed | 130 rpm |
| MATERIAL HOPPER - Positions | can be adjusted in a forward direction by 3 or 6 in |
| CONVEYORS AND AUGERS - Version | with replaceable auger blades, reversible direction of rotation |
| DIMENSIONS AND WEIGHTS - Length | Screed Total length VR 600 22 ft 6 in VF 600 21 ft 6 in AB 600 TV 21 ft 9 in |
| CONVEYORS AND AUGERS - Conveyors | 2 |
| CONVEYORS AND AUGERS - Version | with replaceable feeder bars, direction of conveyor temporarily reversible |
| DIMENSIONS AND WEIGHTS - Maximum laydown rate | 1,540 US t/hr |
| DIMENSIONS AND WEIGHTS - Operating weight | Screed Total weight VR 600 49,160 lbs VF 600 48,280 lbs AB 600 TV 49,490 lbs |
| CONVEYORS AND AUGERS - Drive | separate hydraulic drives, proportional control |
| CONVEYORS AND AUGERS - Standard height | hydraulically adjustable by 6 in |
Featured Content
VÖGELE Niveltronic Plus Automated Grade and Slope Control is a unique grade and slope control system providing the basis for efficient paving true to line and level on any kind of base. Niveltronic is an in-house development by VÖGELE and is based on many years’ experience in grade and slope control technology. In terms of ease of operation, quality and reliability, Niveltronic Plus represents the perfect solution for all grade and slope control tasks.
The philosophy behind the machine concept of the Premium Line road pavers is “Lower consumption – lower emissions – lower costs”. The VÖGELE EcoPlus low-emissions package combines a number of individual measures to reduce the fuel consumption and noise levels to a significant extent.
Even the very best machine with the most advanced technology can only really show its strengths if it can be operated easily and as intuitively as possible. At the same time, it should offer an ergonomic and safe working environment for the operating team. That is why the ErgoPlus 3 operating concept focuses on the operator. With VÖGELE pavers, the user consequently retains full control over the machine and construction project.
