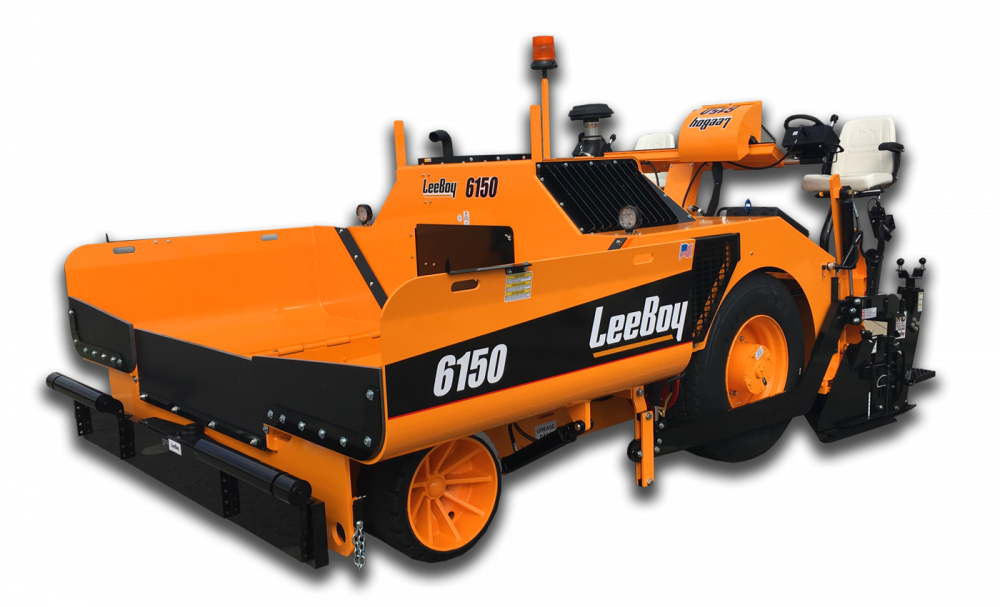

  • Wheeled Drive System:

    Hydrostatic drive with 2-speed hydrostatic motors
    Rear: 385/65 R22.5 heavy-duty hydroinflated truck tires
    Front: steerable wheels, 12” x 22” (.304 x .558 m) diameter solid rubber tires
    Paving speed: 0 to 228’ per minute (2.6 mph)
    Travel speed: 0 to 660’ per minute (7.5 mph)

  • Push Rollers:

    Two 3" (0.076 m) diameter rollers with sealed bearings mounted on a swivel frame
    Vertically adjustable push rollers, 7” (.178 m) of height adjustment

  • Dimensions:

    Length: 16’ 6” (5.03 m)
    Width: 8’ 6” (2.59 m) transport
    10’ 7” (3.21 m) hopper wings down
    Height: 7’ 8” (2.34 m)
    Total Weight (with LP screed): 17,550 lbs. (7,960 kg)

  • Hydraulic System:

    Variable volume hydraulic pumps for each drive
    Fixed volume gear pump for augers and general functions
    Fixed volume gear pump for conveyors
    Fixed volume gear pump for generator and steering
    Hydraulic reservoir: 36 gallons (140 l)

  • Engine:

    Kubota turbocharged diesel
    Tier 4 Final – 74hp (55 kw) @ 2,200 RPM

  • Operator’s Platform:

    Full machine width platform with dual seats
  • Training, Support and Company:

    Training and support manuals
    Optional on-site operator training by Dealer
    One-year, unlimited hours warranty against any manufacturer defects
    Extended warranty available
    50+ years manufacturing experience
    ISO 9001 Certified
    Manufactured in the USA

  • Screed End Gates:

    Equipped with vertical height adjustment and tilt
  • Operator’s Controls:

    High deck/low deck configuration
    Dash panel is movable from left to right and contains all machine controls
    Pivot steer and posi-trac
    Equipped with auger and conveyor bypass

  • Paving Widths:

    Machine has variable paving widths up to 15’ (4.6 m)
  • Washdown System:

    Electric HD pump with two 25’ x .375” (7.62 x .009 m) diameter hose reels and spray nozzles
    Washdown Tank: 7 gallons (26.4 l)

  • Steering:

    Dual electronic steering wheels with joystick for forward, reverse operation
    Allows driver control from right or left side of paver

  • Screed Vibration:

    Equipped with two hydraulic vibrators capable of producing 2,000 vibrations per minute
  • Additional Standard Equipment:

    Back-up alarm
    Lockable fuel and hydraulic caps
    Rotating LED safety beacon
    LED work lights
    Electronic gauge package (oil pressure, hour meter, fuel gauge, volt meter, water temp, tachometer, hydraulic oil temp, hydraulic level warning, engine diagnostics)

  • Material Augers:

    Two 12” (.305 m) replaceable segmented augers constructed of casted .625” (.016 m) thick Ni-hard steel
    Augers can be controlled automatically by sonic sensors (non-contacting)

  • Under Auger Material Cutoff:

    Two independent hydraulically operated 4' (0.051 m) wide gates located under the augers and constructed of at least .375" (.009 m) A-36 plate steel
  • Paving Depths:

    Depth: 0” to 6” (.152 m)
  • Hopper:

    Conveyor fed
    Side wings hydraulically fold in or out
    Hopper size: 7 ton (6,350 kg)
    Hopper height: 22” (.559 m)

  • Screed Extensions:

    Two 44” (1.18 m) screed extensions hydraulically actuated to a width of 15’ (4.57 m)
    The heated extensions are mounted flush with the main screed and are adjustable with the angle of attack
    Includes replacement .25” (6.35 mm) AR 400 bottom wear plates

  • Optional Equipment:

    Electric Legend Plus Screed, variable up to 15’ (4.572 m), 10 kw generator
    Legend 815 Heavy-Duty Electric Screed, variable up to 15’ (4.572 m), 10kw generator
    Automatic screed temperature controls
    Screed extension vibration
    Sloping screed extensions
    Power crown
    Heated endgates, only available on the Legend 815 Heavy-Duty Electric Screeds
    12" (0.304 m) x 4.5” (.114 m) berm extensions, right and left
    Walkboard extensions slide outs, right and left
    Single point lube kit, conveyors
    Single point lube kit, augers
    Wiring only, grade controls (TopCon), includes A/M modules
    3:1 flight screw adjusters
    Sonic grade control, one side (TopCon)
    Dual grade control (TopCon P-32 system)
    Dual grade and slope (TopCon P-32 system)

  • Capacities:

    Fuel: 36 gallons (140 l)
    Hydraulic: 36 gallons (140 l)

  • Screed Crown/Invert:

    Equipped with a crown/invert adjustment allowing at least 2” (76.2 mm) of crown and .75” (19.05 mm) of valley
    Includes a leveling indicator for the operator to know when the screed is level

  • Screed:

    Legend propane screed
    8’ (2.43 m) main screed
    Constructed of .375” (9.5 mm) AR 400 bolt-on wear plates for easy replacement

  • Screed Heat (Propane):

    Two 54,000 BTU propane burners on main screed
    Each extension has one 36,000 BTU propane burner
    One 36,000 BTU burner ignitor
