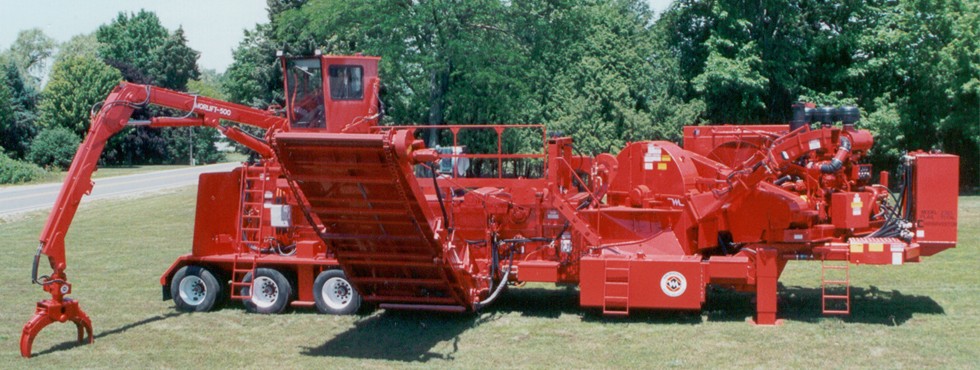

MORBARK 2355 Flail Chiparvestor
Chiparvestors
Equipment Features
- Chip Quality - Units produce quality chips even in non-merchantable and juvenile timber.
- Spreader Infeed - This unique infeed system spreads multiple stems apart, which assists with more complete bark removal.
- Chipper Disc - Each disc is fabricated from plate steel and put through ultrasonic testing. Material certification is issued for each disc, which provides the best chipper disc in the industry.
Featured List
- Hydrostatic Controls - Flail drive is a closed loop hydraulic design with separate hydraulic systems to operate each flail drum. Each system is complete with electric tach and controls in operator’s cab
Featured Content
Length: 54’3” (16.54 m)
Height: 13’8” (4.16 m)
Width: 11’11” (3.63 m)
Gross weight: 115,200 lbs. (52,253 kg)
Engine: CAT
Horsepower: Up to 1,490 HP (1,111 kW)
Tri-axle trailer: 75,000 lb. (34,019 kg) suspension
Drive (flail): hydraulic
Drive (chipper): belt
Fuel capacity (tank): 500 gallons (1,892 litres)
Hydraulic oil capacity (flail): 200 gallons (757 litres)
Hydraulic oil capacity (feed system and loader): 300 gallons (1,135 litres)
Reversing fan
11-HP (8.2 kW) air compressor
Remote control
Brakes: air
Infeed opening 23” x 55” (58.42 cm x 139.7 cm)
Three top feed rollers mounted on yoke assemblies
Five stationary bottom feed rollers
Dual horizontal chain flails with patented segmented drums are equipped with eight flail chain rods.
Discharge system consisting of 60-1/2” wide x 23’ (1.54 m x 7.01 m) long telescoping drag chain conveyor with hydraulic drive.
Air curtain
Cab offers operator a deluxe 6-way adjustable seat, joy stick controls, combination air conditioner/heater, and emergency shut-down system. Along with complete engine gauge panel for both power units located in cab. Hydraulic tilt-down cab for transport. Morbark 500 knuckleboom loader, 23’ (7 m) reach, 270º swing and 360º continuous rotation grapple. Lift capacity of 17,200 lb. (7,800 kg) at 10’ (3.05 m)
75” (190.5 cm) diameter chipper disc with three or four knife configuration.
Built-in dirt separator, debris is bottom discharged into dual 12” (30.48 cm) diameter twig augers which discharge directly into the 23’ (7 m) refuse drag chain.
Hydraulic swivel/telescoping discharge spout.
- Three- or four-knife chipper disc
- Third flail drum
- Discharge spout extension
- ESPAR heating system for cold weather start
- Electric power option
- Discharge spout extension to load open top vans or rail cars
With a unique spreader infeed system to separate multiple stems, ultrasonically tested plate steel chipper disc, and hydrostatic controls, the Model 2355 is fully loaded and ready for action. Delivering up to 1,050 (782 kW) horsepower with a fuel capacity of 500 gallons (1,892 litres), this machine produces high-quality chips from a variety of timber. Customizable options include remote control, dual engines, discharge spout extension and more. The cab offers the operator a six-way adjustable seat, joy stick controls, combination air conditioner/heater and emergency shut-down system, making operating the 2355 safe and comfortable.
