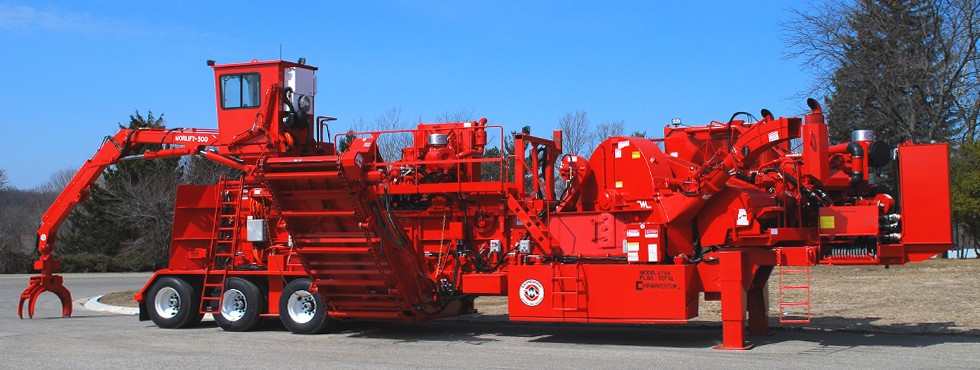

MORBARK 2755 Flail Chiparvestor
Chiparvestors
Offering three-, four- or six-knife chipper disc options, the 2755 is ideal for some of your toughest jobs. A 27″ (68.58 cm) diameter chipping capacity and lift capacity of 17,200 lbs. (7,800 kg) at 10″ (3.05 m) make the 2755 one of the toughest machines for any job. Customizable options include ESPAR heating system for cold weather starts, discharge spout extension to load open vans or rail cars, debris plow in lieu of telescoping conveyor, and remote control.
Featured List
- Spreader Infeed - This unique infeed system spreads multiple stems apart, which assists with more complete bark removal.
- Hydrostatic Controls - Flail drive is a closed loop hydraulic design with separate hydraulic systems to operate each flail drum. Each system is complete with electric tach and controls in operator’s cab.
- Chipper Disc - Each disc is fabricated from plate steel and put through ultrasonic testing. Material certification is issued for each disc, which provides the best chipper disc in the industry.
- Chip Quality - Units produce quality chips even in non-merchantable and juvenile timber.
Featured Content
Cab offers operator a deluxe 6-way adjustable seat, joy stick controls, combination air conditioner/heater, and emergency shut-down system. Along with, complete engine gauge panel for both power units located in cab. Hydraulic tilt-down cab for transport. Morbark 500 knuckleboom loader, 23’ (7 m) reach, 270º swing and 360º continuous rotation grapple. Lift capacity of 17,200 lb. (7,800 kg) at 10’ (3.05 m)
27” (68.58 cm) diameter chipping capacity
83” (210.82 cm) diameter chipper disc with a three, four or six-knife configuration
Chip sizes: 5/8”, 3/4”, 7/8”, or 1” (15.88 mm, 19 mm, 22.22 mm, 25.4 mm)
Dirt separator, bottom discharges onto 12” (30.48 cm) diameter twig augers
Hydraulic swivel/telescoping discharge spout
- Four- or six-knife chipper disc
- Third flail drum
- Push ram discharge in lieu of standard discharge
- ESPAR heating system for cold weather start
- Electric power option
- Foot pedal loader swing for knuckleboom loader
Length: 55’ (16.76 m)
Height: 13’6’’ (4.11 m)
Width: 11’11” (3.63 m)
Gross weight: 120,960 lbs. (54,866 kg)
Tri- axle trailer: 75,000 lb. (34,020 kg) suspension
Engine: CAT
Horsepower: up to 1,490 HP (1,111 kW)
Drive (flail): hydraulic
Drive (chipper): belt
Fuel capacity (tank): 500 gallons (1,892 litres)
Hydraulic oil capacity (feed systems and loader): 300 gallons (1,135 litres)
Hydraulic oil capacity (flail): 200 gallons (757 litres)
11-HP (8.2 kW) air compressor
Reversing fan
Infeed opening: 27” x 55” (68.58 cm x 139.7 cm)
Three top feed rollers mounted on yoke assemblies
Five stationary bottom feed rollers
Dual horizontal chain flails with patented segmented drums are equipped with eight flail chain rods
Discharge system consisting of 60-1/2” (1.54 m) wide x 23’ (7 m) long telescoping drag chain conveyor with hydraulic drive
Air curtain
Offering three-, four- or six-knife chipper disc options, the 2755 is ideal for some of your toughest jobs. A 27″ (68.58 cm) diameter chipping capacity and lift capacity of 17,200 lbs. (7,800 kg) at 10″ (3.05 m) make the 2755 one of the toughest machines for any job. Customizable options include ESPAR heating system for cold weather starts, discharge spout extension to load open vans or rail cars, debris plow in lieu of telescoping conveyor, and remote control.
