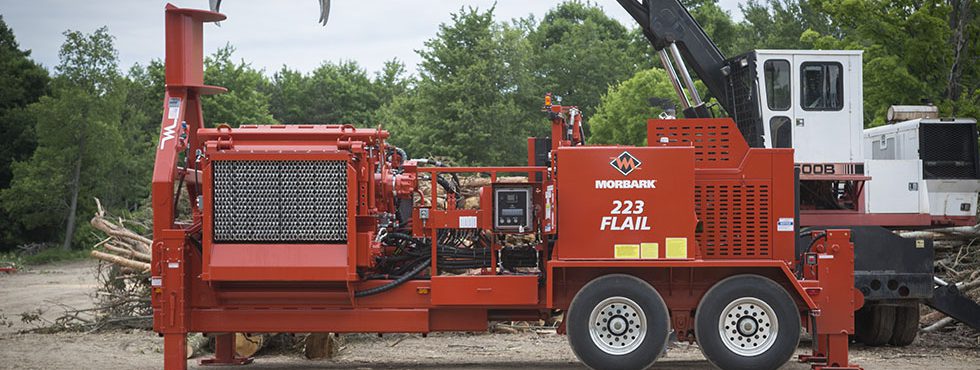

MORBARK 223 Stand-Alone Flail
Flails
Equipment Features
- Segmented Flail Drum - Segmented flail drum provides better wear life than traditional tubular style drums.
- Large Engine/Hydraulic Inspection Area - Large dedicated work/inspection area gives easy access to engine and hydraulic components.
- Drives - Kawasaki direct drive flail motors allow for adjustments of up to 700 RPM.
Featured List
- Adjustable Feed Rate and Flail Drum Speed - Morbark Integrated Control System allows for fine adjustment of speed so that bark removal is maximized and removal of “good” fiber is minimized.
Featured Content
Length (transport): 33’5” (10.18 m)
Length (operating): 25’2” (7.67 m)
Height (transport): 9’11”½” (3.04 m)
Height (operating): 13’4” (4.06 m)
Width: 9’10” (3 m)
Gross weight (approximately): 46,700 lbs. (21,185 kg)
Horsepower: 350 HP to 440 HP (262 kW to 328 kW)
Engine: CAT
Dual-axle Trailer: 45,000 lb. (20,411 kg) suspension
Drive (flail): hydraulic
Fuel capacity: 230 gallons (870 litres)
Hydraulic oil capacity: 200 gallons (757 litres)
Remote control
Infeed opening: 56” x 23” (142.24 cm x 58.42 cm)
One top hydraulically driven feed roller mounted on a yoke assembly
Two stationary bottom hydraulically driven feed rollers
Dual horizontal chain flail drums (one stationary bottom, one carried by a floating yoke) with segmented drums; each equipped with eight flail chain rods
Discharge system consisting of 62” x 19” (157.48 cm x 48.26 cm) opening and 61”½” x 11”½” (156.21 cm x 29.21 cm) hydraulically powered ram
Flail Drum Speed: Adjustable from 0 to 700 RPM
Feed Rate: Adjustable from 70 to 150 ft/min
-
- ESPAR heating system for cold weather start
-
- Caterpillar and Strickland track undercarriage options
The 223 Flail is designed to work in conjunction with chippers like the Morbark 30 Chiparvestor®, the 40/36 Whole Tree Drum Chipper or similar machines. With a large 56” x 23” (142.24 cm x 58.42 cm) infeed opening, the 223 accepts logs up to 23” (58.42 cm) in diameter at a feed rate from 70-150 feet per minute. The Morbark Integrated Control System allows for fine adjustment of feed rate and flail drum speed so that bark removal is maximized and removal of “good” fiber is minimized for superior end products.
