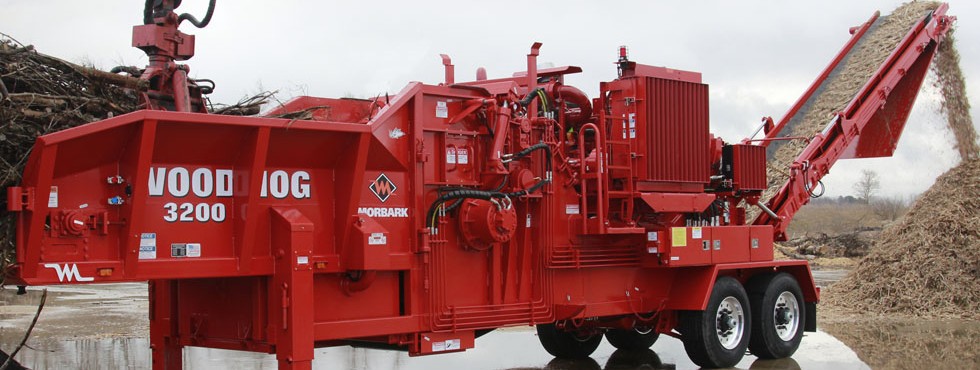

MORBARK 3200 Wood Hog Horizontal Grinder
Horizontal Grinders
Aimed at wood and green waste recycling applications, the Morbark 3200 Wood Hog is a compact and aggressive horizontal grinder. A smaller, lighter, and more affordable unit with all of the benefits of our larger grinders, the 3200 can handle green waste, regrind, sawmill residue, pallets, and logs up to 14” (35.56 cm) in diameter with ease. Available as a tracked unit for greater mobility or with electric power, the 3200 can be built with Morbark’s most popular options.
Featured List
- Feed System - Internal planetary drive with no chains and sprockets means lower maintenance, more torque and better durability.
- Discharge System - 36″ x 26’7″ stacking discharge conveyor has hydraulic fold for transport.
- Morbark Integrated Control Systems (MICS) - Automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
- Hammermill - Laser-cut upturn rotor, factory balanced with forged hammers, offers unsurpassed durability and smooth operation.
Featured Content
Discharge system consists of a hydraulically driven, horizontal 42” x 17’9” (106.8 cm x 5.4 m) aggregate belt conveyor discharging onto a 36” (91.44 cm) stacking conveyor with hydraulic fold for transport.
28” x 58”1/2” (71.12 cm x 149 cm) Hammermill system constructed of heavy-duty 17 5/8” (44.8 cm) diameter rotor, 16 1 1/8” (2.86 cm)-thick two-piece laser-cut rotor plates to ensure precision and enforce steel strength. The plates are keyed on a 5 7/8” (14.92 cm) diameter shaft with 3 15/16” (10 cm) bearings on both ends of the rotor and eight 2” (5.08 cm) hammer retaining rods. Hammermill pattern has 18 2” (5.08 cm) balanced forged heavy-duty hammers, 18 3 1/16” (7.8 cm) wide double-edged replaceable inserts and 18 rakers.
- Electric power
- 12-knife chipper drum assembly
- Variety of grates sizes available
- Hydraulic rod puller
- 320L Caterpillar undercarriage
Infeed opening: 57”1/2” x 38” (145 cm x 96.5 cm)
Variable speed infeed system consists of one 30” (76.2 cm) diameter top compression feed roll with internal drive and a 16” long x 57”1/2” (4.87 m x 146 cm) wide live floor equipped with four strands of WDH-110 chain in a staggered configuration.
Length wheeled (transport): 38’2” (11.63 m)
Length wheeled (operating): 57’9” (17.6 m)
Height wheeled (transport): 12’7” (3.83 m)
Height wheeled (operating): 16’1/4” (4.95 m)
Width wheeled: 8’4” (2.54 m)
Length tracked (transport): 35” (10.67 m)
Length tracked (operating): 54’8” (16.66 m)
Height tracked (transport): 12” (3.66 m)
Height tracked (operating): 16’2” (4.93 m)
Width tracked: 10’9” (3.28 m)
Gross weight wheeled: 54,000 lbs. (24,494 kg)
Axle weight: 34,000 lbs. (15,422 kg)
Tongue weight: 20,000 lbs. (9,071 kg)
Gross weight tracked: 70,000 lbs. (31,751 kg)
Engine: CAT
Horsepower: 540 HP to 765 HP (402 kW to 570 kW)
Fuel capacity (tank): 300 gallons (1,135 litres)
Hydraulic oil capacity: 100 gallons (378 litres)
Screen Area: 3,215 sq in (20,742 sq cm)
Brakes: air
Towing arrangement: fifth wheel
Hydraulically operated debris containment door
Remote control with tethered back-up system
Hydraulic oil cooler
Externally adjustable break-away torque limiter Dust suppression system
11-HP (8.2 kW) air compressor with lockable enclosure
Magnetized end pulley with collecting slide tray for ferrous metal removal
Automatic reversing fan system
