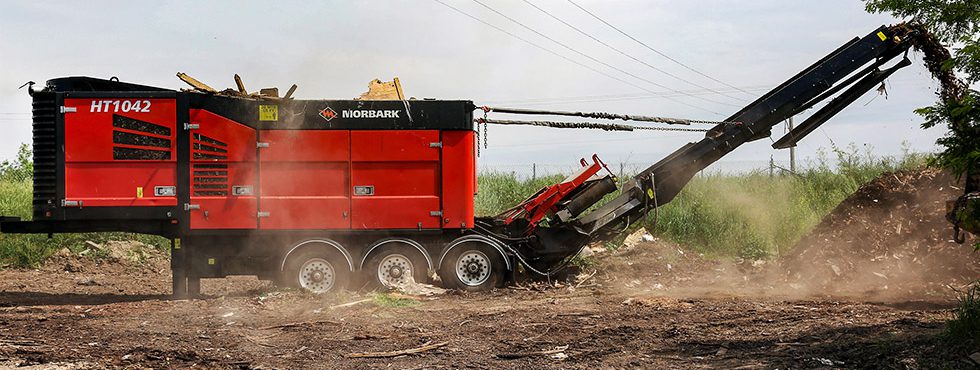

Morbark HT1042 Slow-Speed Shredder
  • + Expand All
  • - Close All
  • Specs - General

    Machine weight: 70,547 lbs. (32,000 kg)

    Length (transport): 32’5? (9.88 m)
    Length (operating): 51’7? (15.72 m)

    Height (transport) : 13? (3.96 m)
    Height (operating): 11’11” (3.63 m)

    Width: 8’4? (2.54 m)

    Discharge Height: 15? (4.57 m)

    Engine: CAT or Scania
    Horsepower: 540 HP (402.7 kW)

    Fuel capacity (tank): 184 gallons (696.5 litres)
    Hydraulic oil capacity: 200 gallons (757 litres)


  • Specs - General (Tracked Unit)

    Machine weight: 81,000 lbs. (36,740 kg)

    Length (transport): 28’11” (8.8 m)
    Length (operating): 48’1? (14.65 m)

    Height (transport) : 12’2? (3.71 m)
    Height (operating): 14’3? (4.34 m)

    Width: 8’4? (2.54 m)

    Discharge Height: 14’1? (4.29 m)

    Engine: CAT or Scania
    Horsepower: 540 HP (402.7 kW)

    Fuel capacity (tank): 184 gallons (696.5 litres)
    Hydraulic oil capacity: 210 gallons (794 litres)


    Rotor Chamber: 3’6?X 9’8? (1.06 m x 2.95 m)
    Rotor Length: 9’10” (3 m)
    Rotor Diameter: 3’5? (1.04 m)
    Rotor Weight: 9,500 lbs. (4,309 kg)
    Rotor speed variable: 0 to 40 RPM
    Rotor torque: 2.2 million inch pounds (248,5666 N m)


  • Specs - Belly Conveyor

    17’10?x 40? (5.44 m x 12.19 m), pan support with Dura-lite™ slides, EP 400/3 smooth belting.

  • Specs - Stacking Conveyor

    25’6? x 48? (7.77 m x 121.92 cm), pan support with Dura-lite™ slides, 3-ply aggregate belt with chevron cleats.
