MORBARK 1000 Tub Grinder
Recycling
Equipment Features
- Tub Tilt - Provides easy access to grates and anvil for routine maintenance.
- Hydraulic Augers - Quickly remove product from beneath the mill. During material surges, pressure sensors on the auger system automatically slow tub rotation to prevent plugging.
- Morbark Integrated Control Systems (MICS) - The ultimate diagnostic system; monitors hydraulic pressures, temperatures, clutch systems, and engine efficiency to maximize performance.
Featured List
- Torque Limiter - Full breakaway torque limiter protects the engine and clutch against shock and overload without stalling the engine.
Featured Content
- Electric power
- Variety of screen sizes
- Pintle hitch towing arrangement with dual axles
- Dual axles with fifth wheel towing arrangement
- Track undercarriage
24-1/2” x 46” (62.32 cm x 116.84 cm) hammermill system constructed of a heavy-duty 16” (40.64 cm) diameter laser cut rotor, (19) 1-1/8” (2.86 cm) thick 2-piece laser-cut rotor plates to ensure precision and enforce steel strength. The plates are keyed on a 4-1/2” (11.43 cm) diameter rotor shaft with 3-7/16” (8.73 cm) bearings direct driven at engine RPM and (8) 1-1/4” (3.17 cm) hammer retaining rods. Complete with (36) 1-1/4” (3.17 cm) balanced forged hard-surfaced fixed hammers and (36) 2” (5.08 cm) wide replaceable inserts. 3/4” (1.9 cm) thick heavy-duty screens. Two 12” (30.48 cm) diameter augers discharge onto a 28” belt conveyor. Hydraulic fold for transport.
10’6” (3.2 m) diameter tub opening, 8” (2.44 m) diameter at inside base, 50” (127 cm) deep walls constructed of 1/4” (6.35 mm) reinforced steel plate, and floor constructed of 3/8” (9.5 mm) thick wear-resistant steel
Tub supported by 10 rubber guide rolls

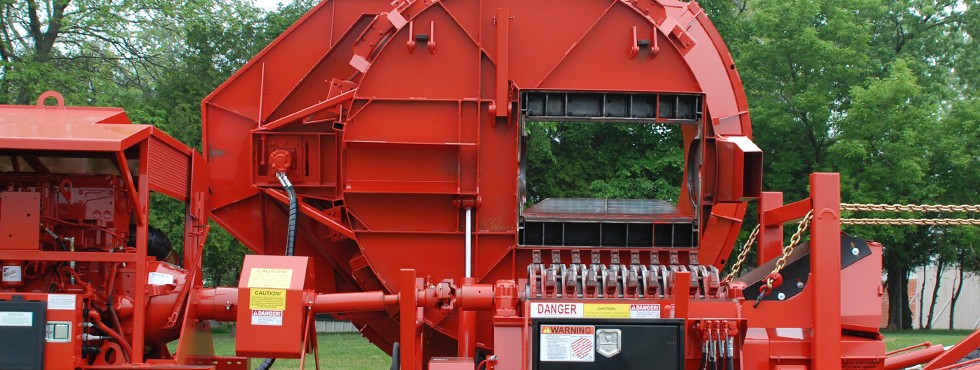

Full hydraulic tilt tub for easy access to hammermill
Hydraulically powered variable RPM forward and reverse tub control with electronic sensor drive
Tub cover for debris containment
6-function wireless remote control
Front hydraulic stabilizers
Length (operating): 48’2” (14.68 m)
Length (transport): 28’2” (8.58 m)
Height (transport): 12’11” (3.98 m)
Width: 8’6” (2.59 m)
Gross weight: 28,740 lbs. (13,063 kg)
Axle weight: 20,440 lbs. (9,271 kg)
Tongue weight: 8,300 lbs. (3,764 kg)
Engine: CAT
Horsepower: 350 HP to 580 HP (260 kW to 432 kW)
Fuel capacity: 160 gallons (605 litres)
Hydraulic oil capacity: 80 gallons (302 litres)
Screen Area: 1,900 sq in (12,258 sq cm)
Towing Arrangement: Pintle
Brakes: Air
Magnetized end pulley
11-HP (8.2 kW) air compressor
Break-away torque limiter
Dust suppression system
This small but powerful tub grinder is perfect for lower volume applications for land clearing, wood waste recycling, municipalities and compost facilities. Like Morbark’s larger grinders, the 1000 Tub Grinder includes the Morbark Integrated Control System (MICS), which allows you to monitor key systems and adjust feed rates. Equipped with a proven drive line protection system with torque limiter, this model also boasts hydraulic augers to quickly remove product and prevent plugging, a pinned rotor system and a variety of heavy-duty grates to produce different end products, and optional hinged tub flares for use during transportation.
