Key Features & Specs

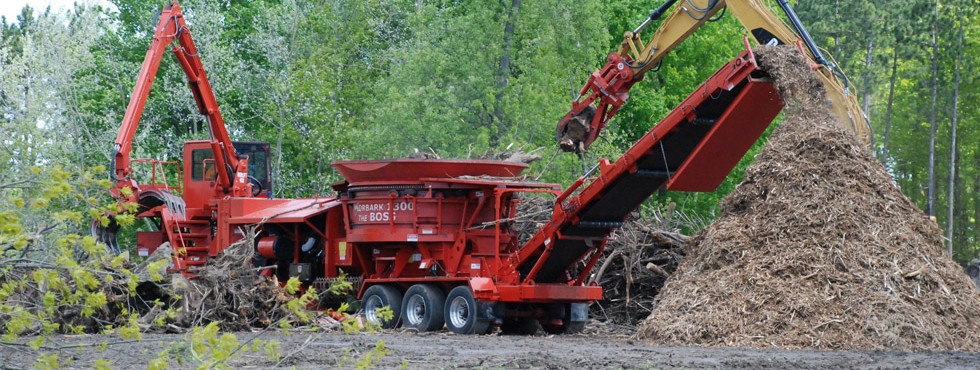

The Morbark 1300B Tub Grinder combines heavy-duty construction with the latest technology, including the Morbark Integrated Control System, which allows you to monitor critical machine parameters. With a full breakaway torque limiter system, hydraulic augers and a laser-cut hammer mill, the 1300B tub grinder is the most popular grinder on the market. Replaceable, one-piece anvil and tub floor wear plates make maintenance easy and reduce downtime. The optional track undercarriage makes it easy to bring the grinder right to the material.
  • Optional Tracks - Bring the grinder to the material with the 330L Cat undercarriage with 700mm double grouser shoes 11 PSI ground pressure, 1.4-2.4 MPH ground speed, 22.5″ clearance.
  • Morbark Integrated Control Systems (MICS) - Automatically adjusts feed rates and monitors pressures and feed wheel position to maximize production and engine efficiency.
  • Torque Limiter - The full breakaway torque limiter system protects the engine and clutch against shock and overload without stalling the engine.
  • Hydraulic Augers - Quickly remove product from beneath the mill and during material surges, pressure sensors automatically slow tub rotation to prevent plugging.
  • Hammermill - Laser-cut, factory-balanced hammermills with forged hammers offer unsurpassed durability and smooth operation.
  • + Expand All
  • - Close All
  • Tracked Unit Specs - Options
    • Variety of screens
    • 14” (4.27 m) diameter tub flare with flat sides to maintain an 11’11” (3.63 m) width
  • Specs - Hammermill and Screens

    31” x 64” (78.74 cm x 162.56 cm) hammermill system constructed of heavy-duty 20” (50.8 cm) diameter rotor, (13) 1-7/8” (4.76 cm) thick 2-piece laser-cut rotor plates to ensure precision and enforce steel strength. The plates are keyed on a 7” (17.78 cm) diameter shaft with 4-7/16” (11.27 cm) bearings and (8) 2-1/4” (5.71 cm) hammer retaining rods. 1” (2.54 cm) thick steel heavy-duty split-screens.

  • Specs - General

    Length (transport): 45” (13.72 m)
    Length (operating): 60’10” (18.54 m)
    Height (transport): 13’6” (4.11 m)
    Width: 11’11” (3.63 m)

    Gross weight NCL: 74,580 lbs. (33,830 kg)
    Axle weight NCL: 50,520 lbs. (22,915 kg)
    Tongue weight NCL: 24,060 lbs. (10,915 kg)

    Gross weight WCL (optional): 86,520 lbs. (39,245 kg)
    Axle weight WCL (optional): 56,000 lbs. (25,400 kg)
    Tongue weight WCL (optional): 30,520 lbs. (13,845 kg)

    Engine: CAT
    Horsepower: 1,050 HP (783 kW)

    Fuel capacity (tank): 505 gallons (1,912 litres)
    Hydraulic oil capacity: 205 gallons (776 litres)

    Screen Area: 3,730 sq in (24, 064 sq cm)

    Remote control

    Magnetized end pulley with collecting slide tray for ferrous metal extraction

    Air compressor

    Morbark automatic reversing fan

    Dust suppression system

    Externally adjustable break-away torque limiter



  • Tracked Unit Specs - Discharge System

    Two 16” (40.64 cm) diameter augers discharge onto a 40” x 22” (101.6 cm x 6.7 m) heavy-duty belt conveyor
    Discharge height of 13” (3.96 m)

  • Tracked Unit Specs - Hammermill and Screens

    31” x 64” (78.74 cm x 162.56 cm) Hammermill system constructed of heavy-duty 20” (50.8 cm) diameter rotor, (15) 1-7/8” (4.76 cm) thick 2-piece laser-cut rotor plates to ensure precision and enforce steel strength. The plates are keyed on a 7” (17.78 cm) diameter shaft with 4-7/16” (11.27 cm) bearings and (8) 2-1/4” (5.71 cm) hammer retaining rods.

  • Specs - Tub

    Tub has 10” (3.04 m) diameter at inside base, 57” (144.78 cm) deep walls constructed of 3/8” (9.52 mm) structural steel plate and floor constructed of 1/2” (12.77 mm) thick T-1 wear-resistant steel, supported by (16) roller guides carried on 1-1/2” (3.81 cm) diameter shaft. Hydraulic full-tilt tub for easy access to hammermill, with hydraulically powered variable RPM forward and reverse MICS (Morbark Integrated Control System) tub control. Tub cover for debris containment.

  • Specs - Discharge System

    Two 16” (40.64 cm) diameter augers discharge onto a 40” x 31” (101.6 cm x 6.71 m) heavy-duty belt conveyor

    Discharge height of 17” (5.18 m)

    Hydraulic fold for transport

    Front hydraulic stabilizers and manual outriggers

  • Specs - Options
    • Hydraulic rod pusher
    • 14” (4.27 m) tub flare
    • Available with no cab and loader
  • Tracked Unit Specs - General

    Length (transport): 40’9” (12.42 m)
    Length (operating): 48’8” (14.83 m)
    Height (transport): 12” (3.66 m)
    Width: 11’11” (3.63 m)
    Gross weight: 94,320 lbs. (42,785 kg)

    Engine: CAT
    Horsepower: 1,050 HP (783 kW)

    Fuel capacity (tank): (2) 300 gallons (1,135 litres)
    Hydraulic oil capacity: 240 gallons (908 litres)

    Screen Area: 3,730 sq in (24,064 sq cm)

    Magnetized end pulley for discharge conveyor

    Morbark automatic reversing fan system

    Externally adjustable break-away torque limiter

  • Tracked Unit Specs - Tub

    Tub has 13” (3.96 m) diameter opening across the top, 10” (3.05 m) diameter at inside base, 57” (144.78 cm) deep walls constructed of 3/8” (9.52 mm) structural steel plate, and floor constructed of 1/2” (12.7 mm) thick T-1 wear-resistant steel, supported by (16) roller guides carried on 1-1/2” (3.81 cm) diameter shaft. Unit has hydraulic full tilt tub for easy access to hammermill, with hydraulically powered variable RPM forward and reverse Morbark Integrated Control System tub control. Tub cover for debris containment
